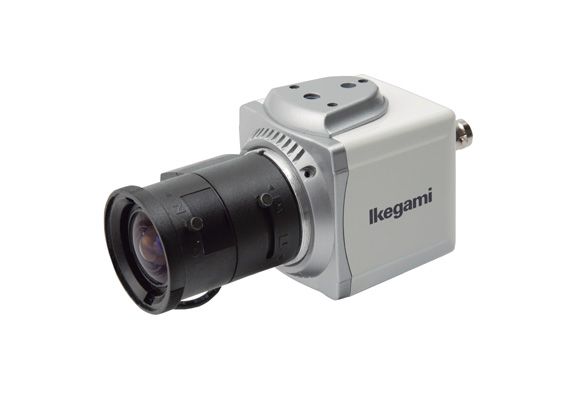

Ikegami ISD-A15S-TDN_K1 700 TVL Hyper-Dynamic, High Resolution Compact Cube Camera, 2.8-12mm AI Lens

SKU
ISD-A15S-TDN_K1
Model No
ISD-A15S-TDN_K1
$382.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Hyper Wide Light Dynamic Range (Hyper WDR)
  • Automatic White Balance
  • High-quality Picture and High Resolution
  • Automatic Sensitivity Control
  • Scene File Function (4 positions)

The Ikegami ISD-A15S-TDN_K1 is a high-performance compact cube camera that delivers exceptional image quality and flexibility in a variety of settings. With a 700 TVL resolution, Hyper Dynamic range, and advanced features like Automatic White Balance and Defog technology, this camera excels in environments with challenging lighting conditions while maintaining a compact profile for easy installation.

Ikegami ISD-A15S-TDN_K1 Camera Features

  • Hyper Wide Light Dynamic Range (Hyper WDR): Captures clear and natural images even in extreme lighting conditions, making it ideal for locations like windows and building lobbies.
  • Automatic White Balance: Adapts to varying color temperatures automatically, ensuring accurate color representation in diverse lighting conditions.
  • Automatic Sensitivity Control: Maintains optimal image brightness through automatic adjustments, effectively enhancing the visual quality even in fixed iris situations.
  • Focus EZ Function: Simplifies focusing with a level indicator, allowing for accurate adjustments even in bright environments, thus improving depth of field.
  • Compact Body of Super Cube: Its small size (W2.05 x H2.05 x D2.16 inches) enables versatile mounting options in constrained spaces like ATMs and outdoor settings.
  • High-quality Picture and High Resolution: Achieves smear-free imaging with low noise and a high signal-to-noise ratio, ensuring sharp images with a horizontal resolution of 480 TVL.
  • Scene File Function (4 positions): Allows for easy setup of camera settings tailored to specific scenes, providing versatility without complicated configurations.
  • Defog Function: Improves visibility by capturing clear images in foggy conditions, making it suitable for outdoor surveillance.

Ikegami ISD-A15S-TDN_K1 Detailed Camera Specifications

Camera TypeCompact Cube Camera
Resolution700 TVL
Sensor1/3-inch CMOS
Hyper Wide Dynamic RangeYes
Automatic White BalanceATW
Lens2.8-12mm AI Lens
DimensionsW2.05 x H2.05 x D2.16 inches
Defog CapabilityYes
Focus EZ FunctionYes
Scene File Settings4 Preset Positions
Signal-to-Noise RatioHigh
Usage LocationsIndoor/Outdoor, ATMs, Lobbies
SKU  ISD-A15S-TDN_K1
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Analog
Resolution    520 TVL
Sensor Option    1/3" CMOS
Lens Type    Not Included
Lens Size    2.8-12mm
Infrared Distance    Non Infrared
Durability    Indoor, Weather Resistant
Mount Type  Bracket Required
Voltage  12vDC, 24vAC
Image Device    1/3 inch DPS CMOS sensor
Minimum Scene Illumination  0.3 lx/F1.4 (Electronic Sens. Up OFF, VBS Output 50%)
Operating Humidity    30 to 90%
Operating Temperature    -10 to +50°C (13.5 to 122°F)
Dimensions (W x H)  52 x 52 x 55 mm (2.05 x 2.05 x 2.16
Power Consumption  2.2W
Privacy Zone    Built-in (Maximum 8 zones)
S/N Ratio  50 dB
Scanning System    NTSC: 525 TVL lines/59.94 Hz, 2:1 Interlaced, PAL: 652 TVL lines /50hz, 2:1 interlaced
Signal System    NTSC/PAL
Video Output    VBS 1.0 Vp-p/75 ohms
Digital Noise Reduction    Built-in, On / OFF selectable (DNR Function)
Automatic White Balance    ATW/ATWex/AWC/MANU, selectable
Auto Gain Control    ON (AGC, HYPER-AGC) / OFF (LOW, MID, HIGH), selectable
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
