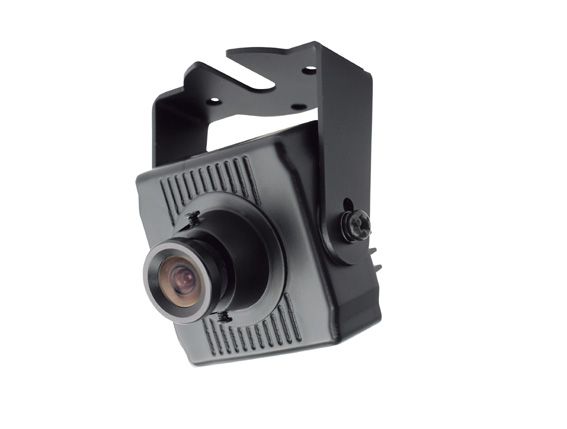

Ikegami ISD-A14S-36 700 TVL Hyper-Dynamic, High Resolution Mini Cube Camera, 3.6mm Lens

SKU
ISD-A14S-36
Model No
ISD-A14S-36
$209.95
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • Hyper Wide Light Dynamic Range (Hyper WDR)
  • Automatic White Balance
  • High-quality Picture and High Resolution
  • Automatic Sensitivity Control
  • Scene File Function (4 positions)

The Ikegami ISD-A14S-36 Mini Cube Camera delivers exceptional performance with its 700 TVL resolution and Hyper-Dynamic capabilities. Its compact design and advanced features make it ideal for challenging lighting conditions, ensuring clear, high-quality images in various settings such as ATM locations or building entrances.

Ikegami ISD-A14S-36 Camera Features

  • Hyper Wide Light Dynamic Range (Hyper WDR): Effectively compensates for high light and dark areas, allowing for clear image capture even in fluctuating lighting conditions.
  • Automatic White Balance: Adjusts white balance automatically with fluctuations in color temperature, ensuring accurate color representation.
  • Automatic Sensitivity Control: Achieves optimally bright images in varying light conditions, enhancing usability with fixed iris lenses.
  • Focus EZ Function: Level Indicator aids in setting accurate focus, maintaining open auto iris lens for improved depth of field.
  • Compact Body of Super Cube: Sleek design enables easy installation in tight spaces, perfect for locations like ATM machines.
  • High-quality Picture and High Resolution: Delivers crisp, sharp images with a high signal-to-noise ratio, ensuring low noise and no smear.
  • Scene File Function: Offers 4 preset scene files for easy configurations tailored to specific environments without extensive adjustments.
  • Defog Function: Enhances visibility by capturing clear images in foggy conditions.

Ikegami ISD-A14S-36 Detailed Camera Specifications

Resolution700 TVL (Horizontal resolution of 480 TVL effective)
Lens3.6mm
Sensor1/3-inch CMOS
DimensionsW1.54 x H2.54 x D1.28 inches
WeightLightweight for easy installation
Hyper WDRYes, for enhanced dynamic range capabilities
Automatic Tracking White BalanceYes, ensures accurate color presentation
Defog FunctionalityYes, improves clarity in foggy conditions
Scene Presets4 position scene file for different settings
SKU  ISD-A14S-36
Features  Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Analog
Resolution    700 TVL
Sensor Option    1/3.2" CMOS
Lens Type    Fixed
Lens Size    3.6mm
Infrared Distance    Non Infrared
Durability    Indoor, Weather Resistant
Mount Type  Ceiling, Wall
Voltage  12vDC
Image Device    1/3.2-inch CMOS sensor
Minimum Scene Illumination  0.2 lx/F2.0(AGC ON, 50IRE)
Operating Humidity    30 to 90%
Operating Temperature    -10 to +50°C (13.5 to 122°F)
Dimensions (W x H)  39 x 39 x 32.5mm (1.54 x 1.54 x 1.28 inches), excluding protrusions
Power Consumption  2W
Privacy Zone    Built-in (Maximum 8 zones)
S/N Ratio  50 dB
Scanning System    NTSC: 525 TVL lines/59.94 Hz, 2:1 Interlaced, PAL: 652 TVL lines /50hz, 2:1 interlaced
Signal System    NTSC/PAL
Video Output    VBS 1.0 Vp-p/75 ohms
Synchronization  Internal Sync (Crystal Lock)
Digital Noise Reduction    Built in, On / Off selectable (DNR Function)
Automatic White Balance    ATW(Indoor/Outdoor/Auto1/Auto2)/Pushlock/Manual
Auto Gain Control    On / Off
Automatic White Balance    Yes
Digital Noise Reduction    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
