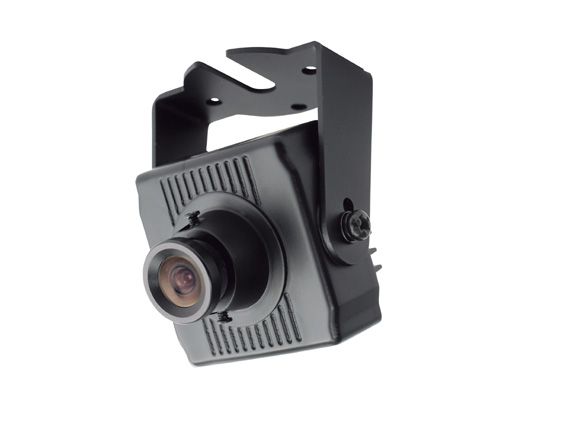

Ikegami ISD-A14S-25 700 TVL Hyper-Dynamic, High Resolution Mini Cube Camera, 2.5mm Lens

SKU
ISD-A14S-25
Model No
ISD-A14S-25
$237.30
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Hyper Wide Light Dynamic Range (Hyper WDR)
  • Automatic White Balance
  • High-quality Picture and High Resolution
  • Automatic Sensitivity Control
  • Scene File Function (4 positions)

The Ikegami ISD-A14S-25 is a state-of-the-art mini cube camera designed for versatility and high performance. Featuring a compact form factor and advanced imaging technologies, this camera captures clear and natural images even in challenging lighting conditions. With its Hyper Wide Light Dynamic Range, automatic adjustment features, and high-resolution capabilities, it is perfect for use in a variety of settings, including ATMs and building lobbies.

Ikegami ISD-A14S-25 Camera Features

  • Hyper Wide Light Dynamic Range (Hyper WDR): Effectively compensates for extreme lighting differences, allowing clear and natural image capture in varied environments.
  • Automatic White Balance: Adjusts dynamically to fluctuations in subject color temperature, ensuring consistent color reproduction.
  • Automatic Sensitivity Control: Achieves optimally bright images even in low-light conditions, enhancing visibility with fixed iris lenses.
  • Focus EZ Function: Features a visible focusing point indicator and maintains an open auto iris lens aperture for accurate focus and depth of field.
  • Compact Body of Super Cube: Designed for discreet placement in locations such as ATMs, maximizing flexibility in installation options.
  • High-quality Picture and High Resolution: Utilizes a high-performance DSP for sharp, crisp images with minimal noise and a horizontal resolution of 480 TVL.
  • Scene File Function (4 positions): Includes preset scene settings for easy configuration, streamlining setup for various environments.
  • Defog Function: Enhances visibility in foggy conditions, providing clear image capture even in adverse weather.

Ikegami ISD-A14S-25 Detailed Camera Specifications

Sensor Type1/3-inch CMOS
Resolution480 TVL (690 HTVL-Effective)
Lens Type2.5mm
DimensionsW1.54 x H2.54 x D1.28 inches
WeightLightweight design for easy installation
Power SupplyStandard voltage range
Operating TemperatureSuitable for various environments
Connection TypeStandard video output
SKU  ISD-A14S-25
Features  Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Analog
Resolution    700 TVL
Sensor Option    1/3.2" CMOS
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    Non Infrared
Durability    Indoor, Weather Resistant
Mount Type  Ceiling, Wall
Voltage  12vDC
Image Device    1/3.2-inch CMOS sensor
Minimum Scene Illumination  0.23 lx/F2.1(AGC ON, 50IRE)
Operating Humidity    30 to 90%
Operating Temperature    -10 to +50°C (13.5 to 122°F)
Dimensions (W x H)  39 x 39 x 32.5mm (1.54 x 1.54 x 1.28 inches), excluding protrusions
Power Consumption  2W
Privacy Zone    Built-in (Maximum 8 zones)
S/N Ratio  50 dB
Scanning System    NTSC: 525 TVL lines/59.94 Hz, 2:1 Interlaced, PAL: 652 TVL lines /50hz, 2:1 interlaced
Signal System    NTSC/PAL
Video Output    VBS 1.0 Vp-p/75 ohms
Synchronization  Internal Sync (Crystal Lock)
Digital Noise Reduction    Built in, On / Off selectable (DNR Function)
Automatic White Balance    ATW(Indoor/Outdoor/Auto1/Auto2)/Pushlock/Manual
Auto Gain Control    On / Off
Automatic White Balance    Yes
Digital Noise Reduction    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
