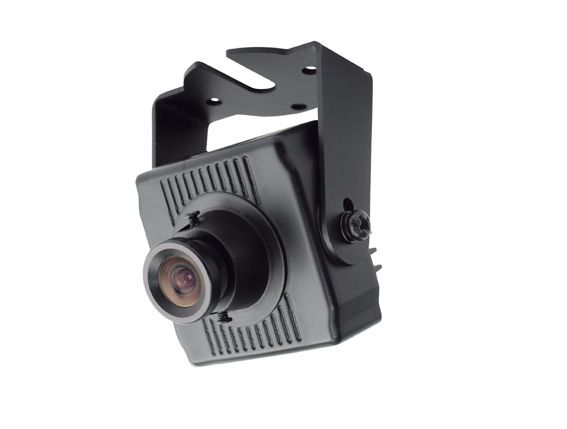

Ikegami ISD-A14S-25_AA 700 TVL Hyper-Dynamic, High Resolution Mini Cube Camera, 2.5mm Lens

SKU
ISD-A14S-25_AA
Model No
ISD-A14S-25_AA
$273.46
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Hyper Wide Light Dynamic Range (Hyper WDR)
  • Automatic White Balance
  • High-quality Picture and High Resolution
  • Automatic Sensitivity Control
  • Scene File Function (4 positions)

The Ikegami ISD-A14S-25_AA is a state-of-the-art mini cube camera designed to deliver exceptionally clear and natural images in challenging lighting conditions. With a compact design and innovative features such as Hyper Wide Light Dynamic Range and Automatic White Balance, this camera meets the demands of diverse environments, ideal for installations in ATM machines and outdoor settings. Its high resolution and low noise performance ensure that details are captured with remarkable clarity, making it an excellent choice for surveillance and monitoring applications.

Ikegami ISD-A14S-25_AA Camera Features

  • Hyper Wide Light Dynamic Range (Hyper WDR): Effectively compensates for high light and dark areas, enabling clear image capturing even with sharp light fluctuations.
  • Automatic White Balance: Automatically adjusts to varying color temperatures, ensuring accurate color reproduction regardless of lighting conditions.
  • Automatic Sensitivity Control: Ensures optimally bright images by adjusting to lighting changes, even with fixed iris lenses.
  • Focus EZ Function: The Level Indicator aids in achieving precise focus, even in bright daylight, enhancing depth of field accuracy.
  • Compact Body: Its small cube form factor allows for easy integration into various locations, including ATMs and outdoor environments.
  • High-Quality Picture: Delivers smear-free imaging with a high signal-to-noise ratio for exceptional detail and clarity.
  • Scene File Function: Pre-set scenes for quick setups streamline the process for specific environments without complex adjustments.
  • Defog Function: Captures clearer images in foggy conditions, enhancing visibility in all weather situations.

Detailed Camera Specifications for Ikegami ISD-A14S-25_AA

Image Sensor1/3-inch CMOS Sensor
Resolution700 TVL (480 TVL effective)
Lens2.5mm lens
DimensionsW1.54 x H2.54 x D1.28 inches
WeightLightweight for ease of installation
Dynamic RangeHyper Wide Light Dynamic Range for high contrast scenes
Special FeaturesFocus EZ, Defog, Scene File Function (4 positions)
Automatic AdjustmentsATW for white balance; Automatic Sensitivity Control
SKU  ISD-A14S-25_AA
Features  Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Analog
Resolution    700 TVL
Sensor Option    1/3.2" CMOS
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    Non Infrared
Durability    Indoor, Weather Resistant
Mount Type  Ceiling, Wall
Voltage  12vDC
Image Device    1/3.2-inch CMOS sensor
Minimum Scene Illumination  0.23 lx/F2.1(AGC ON, 50IRE)
Operating Humidity    30 to 90%
Operating Temperature    -10 to +50°C (13.5 to 122°F)
Dimensions (W x H)  39 x 39 x 32.5mm (1.54 x 1.54 x 1.28 inches), excluding protrusions
Power Consumption  2W
Privacy Zone    Built-in (Maximum 8 zones)
S/N Ratio  50 dB
Scanning System    NTSC: 525 TVL lines/59.94 Hz, 2:1 Interlaced, PAL: 652 TVL lines /50hz, 2:1 interlaced
Signal System    NTSC/PAL
Video Output    VBS 1.0 Vp-p/75 ohms
Synchronization  Internal Sync (Crystal Lock)
Digital Noise Reduction    Built in, On / Off selectable (DNR Function)
Automatic White Balance    ATW(Indoor/Outdoor/Auto1/Auto2)/Pushlock/Manual
Auto Gain Control    On / Off
Automatic White Balance    Yes
Digital Noise Reduction    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
