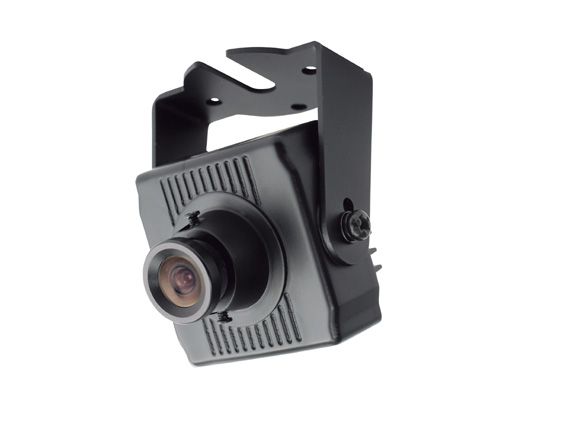

Ikegami ISD-A14-NL Hyper-Dynamic, High Resolution Mini Cube Camera, No Lens

SKU
ISD-A14-NL
Model No
ISD-A14-NL
$175.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Hyper Wide Light Dynamic Range (Hyper WDR)
  • Compact Body of Super Cube
  • Automatic White Balance
  • High-quality Picture and High Resolution
  • Automatic Sensitivity Control

The ISD-A14-NL features an extremely wide light dynamic range, high sensitivity and high resolution enabled by a 1/3-inch Pixim Seawolf sensor and Ikegami's digital processing technology. It is a Hyper Wide Light Dynamic Range Mini Cube Camera that reproduces a clear and natural image even in locations where there is a significant difference in the intensity of illumination, such as window areas, or in lobby entrance of building. ISD-A14-NL comes with a compact cube body, giving it the flexibility for a broad array of locations and equipment, such as ATM machines and outdoor housings.

Ikegami ISD-A14-NL Camera Features

  • Hyper Wide Light Dynamic Range (Hyper WDR): Ensures crisp and clear images in contrasting light conditions.
  • Compact Body of Super Cube: Easily fits in diverse locations and mounts, providing installation flexibility.
  • Automatic White Balance: Adjusts color temperature automatically, enhancing realism in image quality.
  • High-quality Picture and High Resolution: Captures detailed images, suitable for critical surveillance applications.
  • Automatic Sensitivity Control: Optimizes performance under various lighting conditions without manual adjustments.
  • Scene File Function (4 positions): Allows users to save and recall different settings for varying environments.
  • Focus EZ Function: Simplifies focusing for ease of use during installation.

Ikegami ISD-A14-NL Detailed Specifications

Sensor Type1/3-inch Pixim Seawolf Sensor
Dynamic RangeHyper Wide Light Dynamic Range
Body TypeMini Cube
White BalanceAutomatic
Image ResolutionHigh Resolution
Sensitivity ControlAutomatic
Scene File4 Positions
Focus FunctionFocus EZ
SKU  ISD-A14-NL
Features  Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Privacy Masking, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Analog
Resolution    520 TVL
Sensor Option    1/3" CMOS
Lens Type    Not Included
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC
Image Device    1/3-inch DPS CMOS sensor
Operating Humidity    RH 30 to 90% (No Condensation)
Operating Temperature    -10 to +50°C (13.5 to 122°F)
Dimensions (W x H)  39.1 x 39.1 x 32.5 mm (1.54x1.54x1.28 inches), excluding protrusions
Power Consumption  1.6W
Privacy Zone    Built-in (Maximum 8 zones)
S/N Ratio  50 dB (p-p/rms) or better
Scanning System    NTSC: 525 TV lines/59.94 Hz, 2 : 1 interlaced, PAL: 625 TV lines/50 Hz, 2 : 1 interlaced
Signal System    NTSC, PAL
Video Output    VBS 1.0 Vp-p/75 ohms
Synchronization  Internal Sync (Crystal Lock)
Digital Noise Reduction    Built-in, On / OFF selectable (DNR Function)
Automatic White Balance    ATW/ATWex/AWC/MANU, selectable
Auto Gain Control    ON (AGC, HYPER-AGC) / OFF (LOW, MID, HIGH), selectable
Automatic White Balance    Yes
Digital Noise Reduction    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
