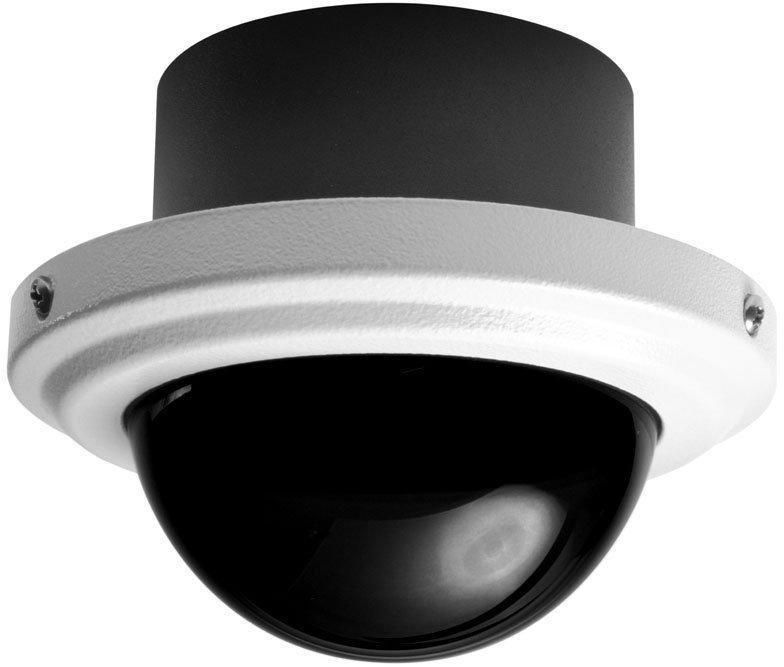

Pelco IS50-CHV10F Camclosure Camera Rugged Outdoor Mini Dome
- Vandal-Resistant Heavy Duty Outdoor Enclosure with Camera and Lens
- Varifocal Lens
- Shipped Completely Assembled, Easy to Install
- 24 VAC or 12 VDC Operation, Autosensing
- Service Connector for Video Output
- Flush and Surface Mount Back Box Included

The IS50-CHV10F is a CamClosure 2 environmental flush color smoke dome security camera from Pelco that is designed to offer state of the art surveillance operation when used in general and demanding situations. The IS50-CHV10F dome security camera comes with a 2.8-10mm lens, 540TV lines, an inbuilt heater, a 3.6x zoom, NTSC formatting, an automatic white balance, a 1/3” interline transfer CCD, as well as a 0.6lux illumination, and a 2:1 interlace scanning system. The IS50-CHV10F surveillance camera also features an auto image stabilizer, a 50dB SN ratio, adaptive back stretch, a service connector, plus wide dynamic range, and automatic back focus. This security camera is able to provide users with a reliable operating device, and can easily provide high positioning in many different locations for enhanced performance.
Features
- Vandal-Resistant Heavy Duty Outdoor Enclosure with Camera and Lens: Ensures durability and protection against harsh environmental conditions and potential vandalism.
- Varifocal Lens: Offers flexible focal length adjustment from 2.8 to 10mm, enhancing versatility for various surveillance needs.
- Shipped Completely Assembled, Easy to Install: Reduces installation time and effort, allowing for quicker deployment.
- 24 VAC or 12 VDC Operation, Autosensing: Provides convenient power options and automatically adapts to the power supply.
- Service Connector for Video Output: Simplifies connections to monitoring equipment, enhancing usability.
- Available in Surface or Flush Mount Models with Smoked or Clear Domes: Offers aesthetic flexibility to match the installation environment.
- Built-in Heater for Outdoor Environments: Ensures optimal performance in cold weather conditions by preventing lens fogging.
Pelco IS50-CHV10F Detailed Specifications
| Feature | Details |
|---|---|
| Lens | 2.8-10mm varifocal lens |
| Resolution | 540 TV lines |
| Illumination | 0.6 lux |
| Sensor Type | 1/3” interline transfer CCD |
| Scanning System | 2:1 interlace |
| Signal-to-Noise Ratio | 50dB |
| Auto White Balance | Yes |
| Dynamic Range | Wide dynamic range |
| Image Stabilizer | Auto image stabilizer |
| Power Supply | 24 VAC or 12 VDC autosensing |
| Mount Options | Surface or flush mount available |
| Heater | Built-in for outdoor use |
| Video Output Connector | Service connector for easy access |
