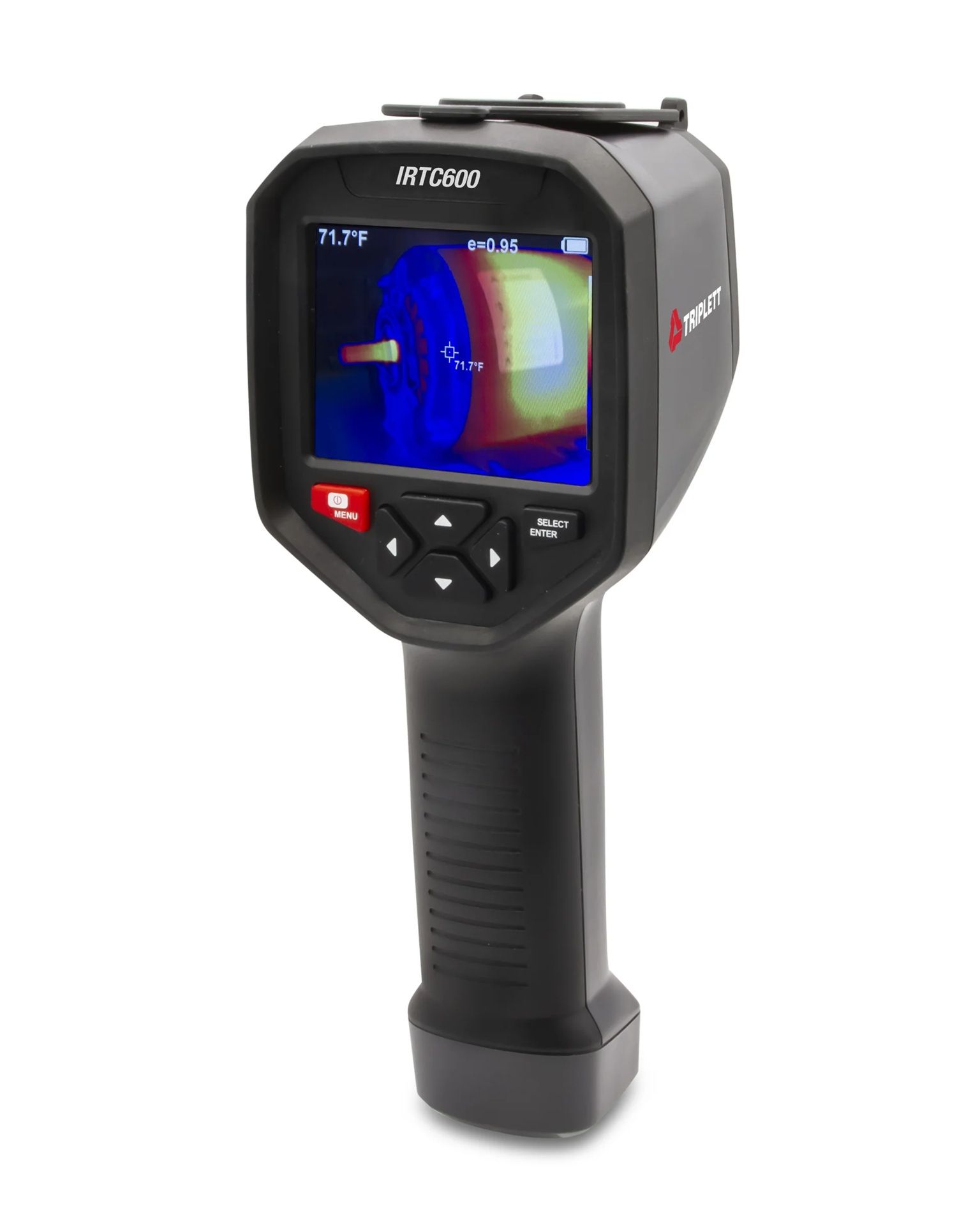

Triplett IRTC600 220 X 160 Network IP Thermal Imaging Camera
SKU
IRTC600
Model No
IRTC600
$879.99
Product Highlights
- 220 x 160 (35,200 pixels) with ≤70mk Thermal Sensitivity (NETD)
- Infrared/Visible Light/Fusion display modes
- 3.2" color TFT display with 320 x 240 resolution
- Hot or cold spots quickly indicate where potential issues are located
- Selectable degree of fusion between IR and visible image (0%,25%,50%,75% and 100%)
Speak to an expert

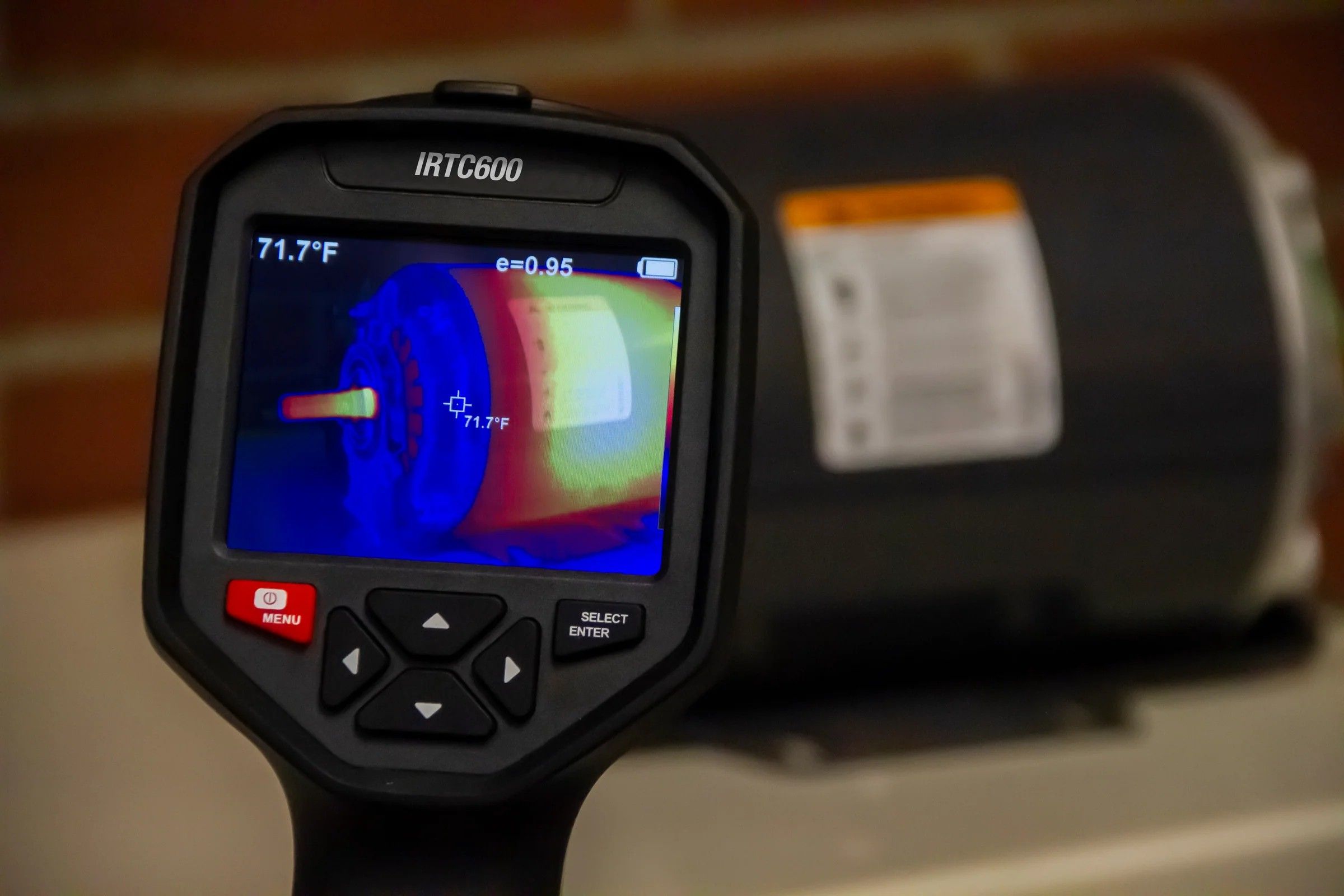

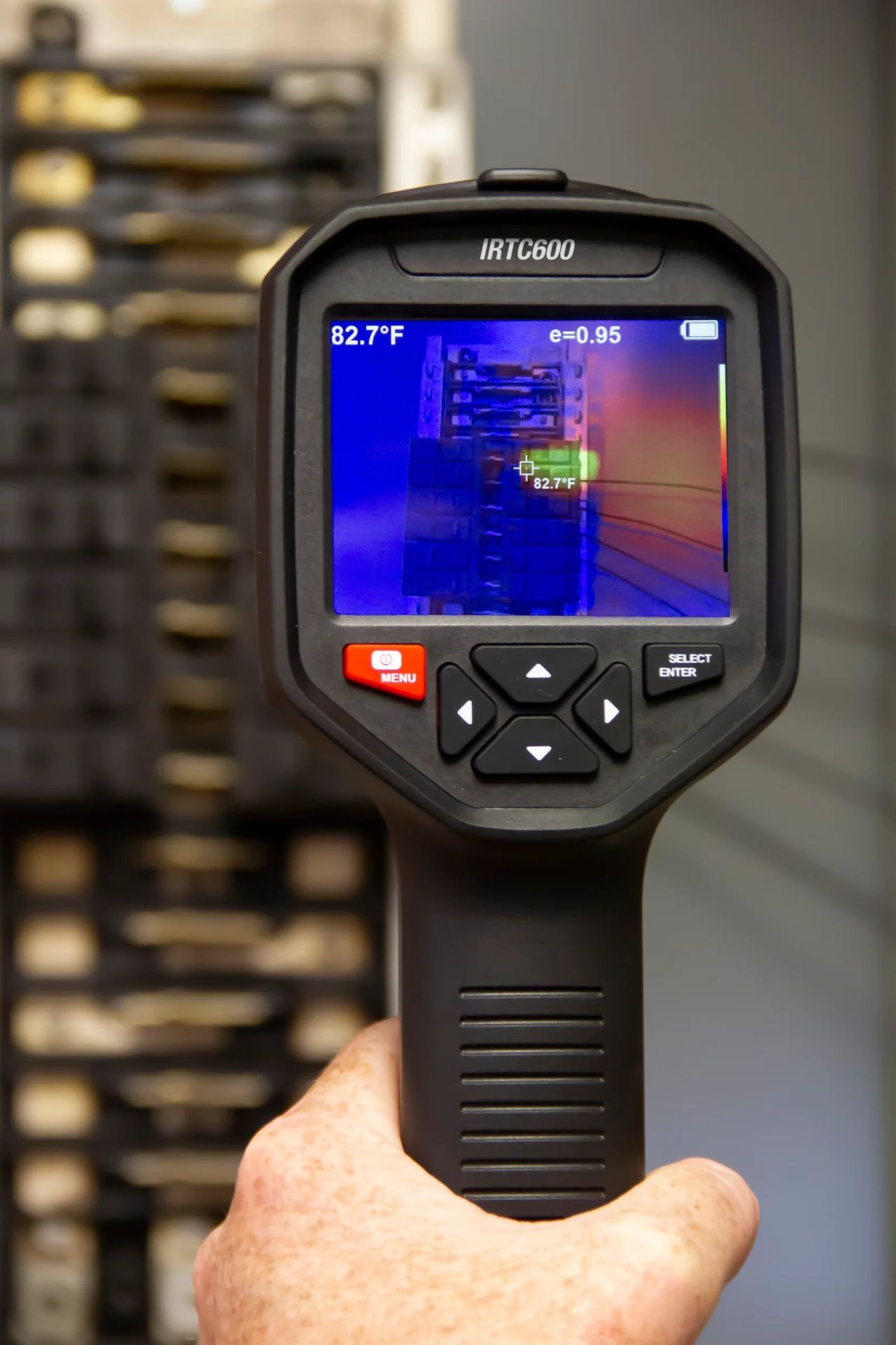

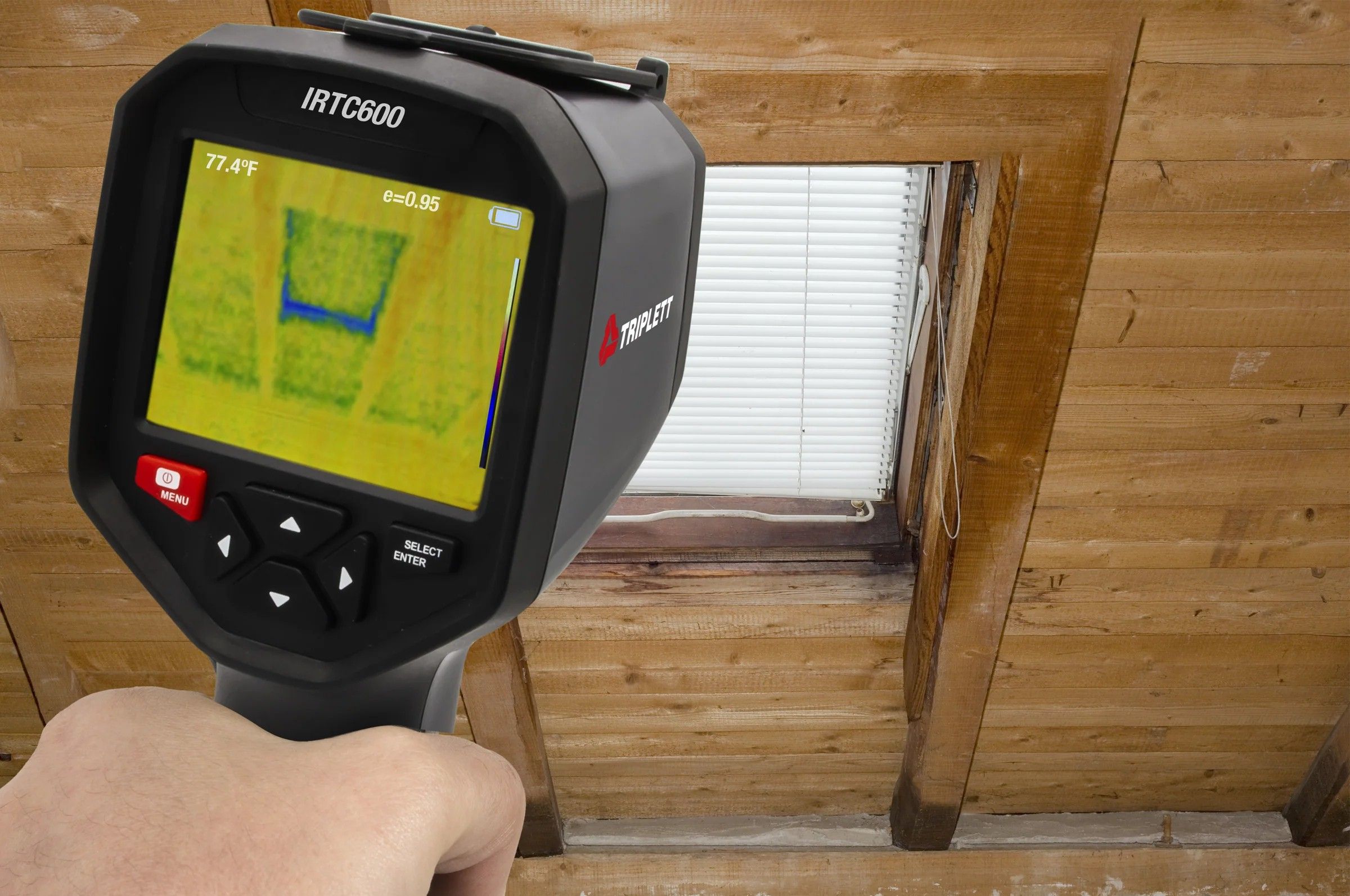

The IRTC600 Thermal Imaging Camera by Triplett is an essential tool for preventative maintenance and troubleshooting in a variety of applications including electrical and HVAC systems, mechanical breakdowns, and automotive repairs. With its advanced thermal imaging capabilities and a user-friendly interface, this camera allows for effective identification of issues such as hidden leaks and temperature irregularities. The device combines high-resolution thermal detection with visible light imaging to provide a comprehensive view of any situation requiring inspection.
Triplett IRTC600 Camera Features
- 220 x 160 resolution: With 35,200 pixels and a thermal sensitivity of ≤70mk NETD, this camera delivers clear thermal images for detailed inspections.
- Infrared/Visible Light/Fusion display modes: Flexibility to switch between imaging modes enhances the effectiveness of inspections across various scenarios.
- 3.2" color TFT display: A resolution of 320 x 240 allows for a vibrant view of thermal images, making it easier to spot potential issues.
- Hot or cold spot identification: Quickly find potential problems areas, saving time and improving efficiency in inspections.
- Selectable degree of fusion: Adjust between 0%, 25%, 50%, 75%, and 100% fusion of IR and visible images for tailored visual analysis.
- Temperature tracking: Monitor center spot and high/low temperature readings directly on the image for comprehensive diagnostics.
- User-friendly menu: Simplified navigation ensures ease of use for both seasoned professionals and new users alike.
- Real time clock/calendar: Keep track of inspections and appointments with built-in real-time tracking features.
- On-screen image index: Effortlessly view captured videos and pictures for detailed analysis post-inspection.
- Auto power off: Save energy with an auto power-off feature that can be disabled for extended use.

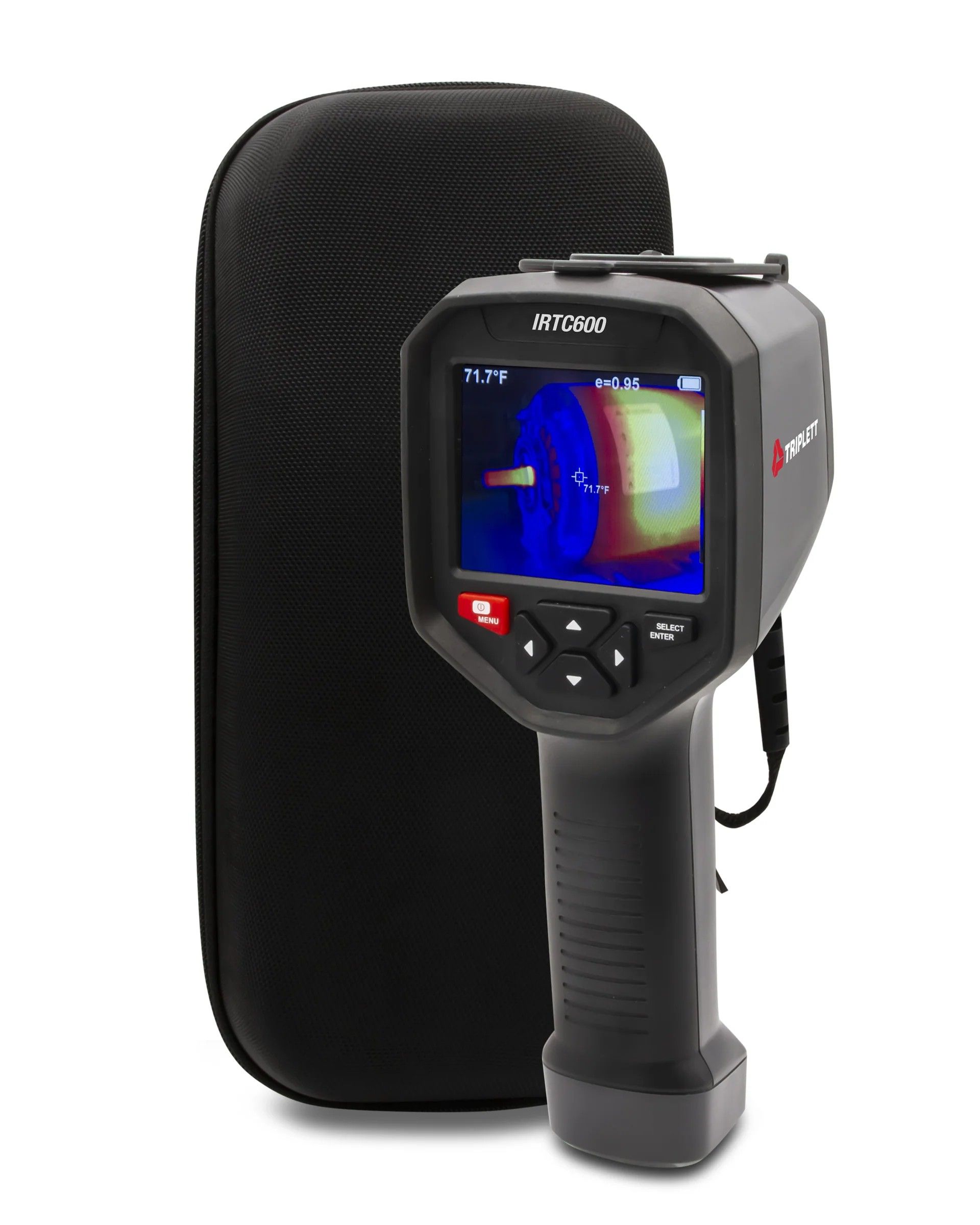

- Complete package included: Comes with a rechargeable 3.7V Lithium Ion battery, USB cable, AC adapter/charger, software, and a pouch case for convenience and portability.
Triplett IRTC600 Detailed Specifications
| Thermal Detector Resolution | 220 x 160 (35,200 pixels) |
| Thermal Sensitivity (NETD) | ≤70mk |
| Display Type | 3.2" color TFT |
| Display Resolution | 320 x 240 |
| Fusion Image Options | 0%, 25%, 50%, 75%, 100% |
| Battery Type | Rechargeable 3.7V Lithium Ion |
| Included Accessories | USB cable, AC adapter/charger, software, pouch case |
| Warranty | 1-year |
SKU  | IRTC600 |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | Triplett |
Camera Signal  | Network IP |
| Resolution | 220 X 160 |
| Dimensions (W x H) | 8.8 x 4.1 x 3.5" (223 x 105 x 90mm) |
| Operating Temperature | -4 to 572°F (-20 to 300°C) |
| Angle of View | 35° x 26° |
| Auto Gain Control | Yes |
