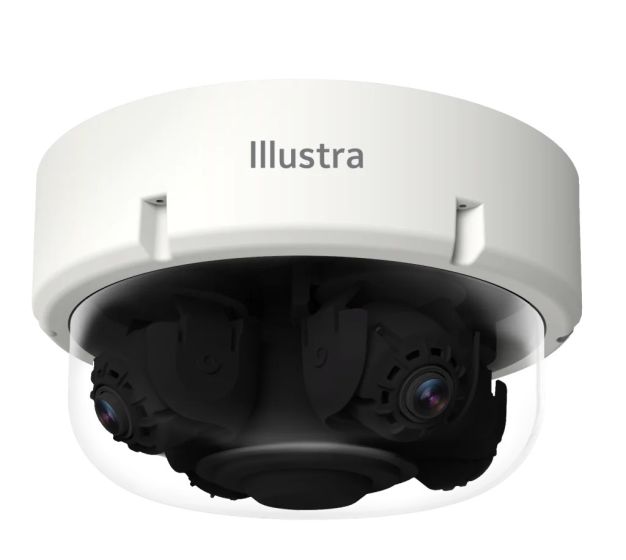

Exacq IPS20-M12-OTA4 20 Megapixel Network Outdoor Dome Camera with 2.7-13.5mm Lens
SKU
IPS20-M12-OTA4
Model No
IPS20-M12-OTA4
was $2,647.33 Special Price $2,324.00
Product Highlights
- 4 Cameras in one -4 individually repositionable sensors with motorized varifocal lenses in a single camera
- High-quality images -available in 20MP and 32MP resolution plus superior WDR, defog and integrated 30m infrared vision
- Edge analytics -deep learning AI built into each of the four sensors for independent object classification, rules and alerts
- Designed for easy install -built-in hinge holds camera during install process
- Cost effective -1 camera license and 1 network cable for connectivity to the video management system (VMS)
Speak to an expert
The IPS20-M12-OTA4 from Exacq is a 20 megapixel network outdoor dome camera with a 2.7-13.5mm lens, perfect for security applications requiring high-resolution imagery and advanced capabilities.
Exacq IPS20-M12-OTA4 Key Features
- 4 Cameras in one: Four individually repositionable sensors with motorized varifocal lenses allow versatile coverage and adaptability without needing multiple cameras.
- High-quality images: Available in 20MP and 32MP resolution with superior WDR, defog, and integrated 30m infrared vision ensure clear images in various lighting conditions.
- Edge analytics: Deep learning AI built into each sensor enables independent object classification, customizable rules, and automated alerts, providing enhanced security monitoring.
- Designed for easy install: A built-in hinge holds the camera during the installation process, making setup straightforward and hassle-free.
- Cost effective: Requires only one camera license and one network cable for connectivity to the video management system (VMS), optimizing your investment.
- Cyber secure: NDAA compliant and exceeds JCI security requirements, ensuring robust protection against cyber threats.
Exacq IPS20-M12-OTA4 Detailed Specifications
| Camera Type | Network Outdoor Dome Camera |
| Resolution | 20 Megapixel / 32 Megapixel |
| Lens | 2.7-13.5mm Motorized Varifocal |
| Infrared Vision | Integrated 30m |
| WDR | Superior Wide Dynamic Range |
| Analytics | Deep Learning AI |
| Installation Features | Built-in Hinge |
| Connectivity | 1 Network Cable |
| License Requirements | 1 Camera License |
| Compliance | NDAA Compliant |
| Security Standards | Exceeds JCI Requirements |
SKU  | IPS20-M12-OTA4 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Exacq |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 20 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | ø299mm x 169mm (ø11.8in x 6.7in) |
| Electronic Shutter | ≥ 1/10,000 to 1/4 s |
| Image Device | Sony 1/2.8” CMOS image sensor |
| Minimum Scene Illumination | Color, 1/4s, 30 IRE, AGC: 0.11 Lux, B/W, 1/4s, 30 IRE, AGC: 0.06 Lux, W/IR: 0.0 Lux |
| Operating Humidity | Up to 90% Non-Condensing |
| Operating Temperature | -40°C (-40°F) to +55° C (131°F) |
| Privacy Zone | 10 Per Sensor |
| Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| Weatherproof | IP66 |
| Angle of View | 103°/74° |
| Motion Detection Tracking | 3 Zones Per Sensor |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
