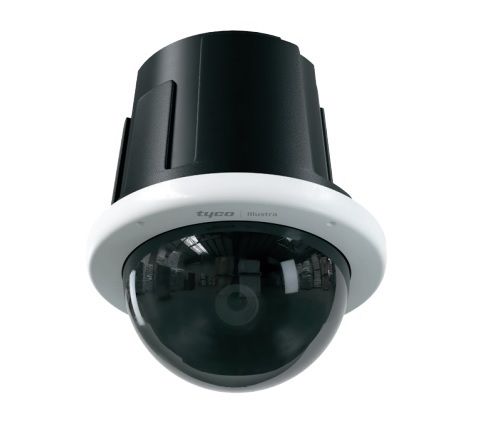

American Dynamics IPS08-P25-RT04 8 Megapixel Indoor PTZ Camera, 22X Lens
SKU
IPS08-P25-RT04
Model No
IPS08-P25-RT04
$3,668.40
Product Highlights
- Object classification combined with event rules to pinpoint forensic searches or trigger events
- Large zoom capacity to identify important features at a greater distance
- Auto-tracking based upon face or person detection
- True WDR and Day/Night function for 24/7 use and deployment in variable lighting conditions
- Advanced analytics on-board, such as Object Removed, Queue Formation, Loitering and more
Speak to an expert
The IPS08-P25-RT04 from American Dynamics is a high-performance 8 Megapixel Indoor PTZ Camera equipped with a 22X lens designed for optimal security and surveillance. This camera excels in providing detailed imagery along with advanced tracking capabilities, ensuring effective monitoring in a variety of environments. With cutting-edge cybersecurity features, AI-driven analytics, and exceptional low-light performance, it stands out as a reliable choice for mission-critical applications.
American Dynamics IPS08-P25-RT04 Camera Features
- AI-Powered Analytics: Object classification and event rules streamline forensic searches and trigger alerts, enhancing security effectiveness.
- High Zoom Capability: The 22X zoom lens allows for detailed identification across longer distances, providing flexibility in various surveillance scenarios.
- Auto-Tracking Technology: Automatically tracks individuals using face or person detection, reducing manual surveillance efforts.
- True WDR and Day/Night Functionality: Delivers reliable performance in diverse lighting conditions, ensuring clarity 24/7.
- Advanced On-Board Analytics: Features like Object Removed and Queue Formation enable proactive monitoring and detection of important events.
- High-Speed Pan/Tilt Performance: With speeds up to 700°/sec and a preset accuracy of <0.1°, it ensures quick and precise movement for efficient monitoring.
Detailed Specifications for American Dynamics IPS08-P25-RT04
| Camera Resolution | 8 Megapixels |
| Lens Zoom | 22X Optical Zoom |
| Pan/Tilt Speed | Up to 700°/sec |
| Preset Accuracy | < 0.1° |
| AI Analytics | Object Classification, Auto-Tracking, Event Rules |
| WDR Functionality | True Day/Night |
| Cybersecurity Standards | Johnson Controls Cyber Solutions Program Compliant |
| Deployment Environment | Indoor, variable lighting conditions |
SKU  | IPS08-P25-RT04 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | American Dynamics |
Camera Signal  | Network IP |
| Infrared Distance | Non Infrared |
| Resolution | 8 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 22X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 22-30vAC |
| Dimensions (W x H) | Ø8.03 x 13.74 in (Ø204 x 349 mm |
| Electronic Shutter | ≥ 1/10,000 to 1/4 s |
| Image Device | CMOS 1/1.8” |
| Minimum Scene Illumination | Color: 0.004 lux, BW: 0.015 lux |
| Operating Humidity | Up to 95% RH Non-Condensing |
| Operating Temperature | -14 F to +140°F (-10 C to +60 C) |
| Power Consumption | 802.3at PoE+ Type 2 (30w) |
| Privacy Zone | 8 |
| Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNPTM, RTSP, LLDP |
| Video Output | RJ45 |
| Weatherproof | IP66, IP47 |
| Angle of View | Wide Angle: 61.9°/36.2°, Telephoto: 3.4°/1.7° |
| Motion Detection Tracking | 8 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
