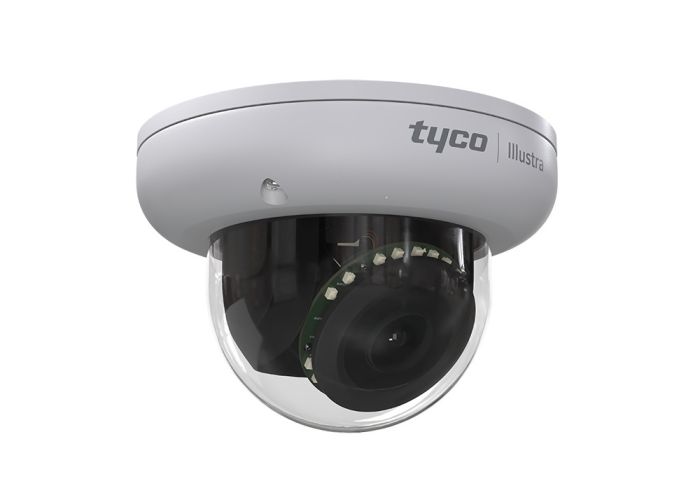

American Dynamics IPS08-D14-OI04 8 Megapixel Network Indoor/Outdoor IR Dome Camera with 6-22mm Lens
SKU
IPS08-D14-OI04
Model No
IPS08-D14-OI04
$1,409.04
Product Highlights
- Built-in AI delivers accurate object classification, powerful situational awareness, and security automation
- Integrated recess mount, backbox, a range of IO options including Micro HDMI plus WiFi configuration via the Illustra Tools App
- Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition, gaming
- Ultra low light capabilities to maintain a color image quality without IR
Speak to an expert
The IPS08-D14-OI04 from American Dynamics is a 8 megapixel network indoor/outdoor IR dome camera with 6-22mm Lens. Illustra Pro Gen 4 cameras are ready for the rise of intelligence at the edge. With built-in AI-based object classification, events can be narrowed to classes such as a person, car, bus, motorcycle, and more.
Forensic searches become more accurate and situational awareness becomes more automated with fewer missed incidences and false alarms. Choose from a variety of analytic rules to customize the solution that will be most beneficial to your business and begin gathering transformative data instantly.
American Dynamics IPS08-D14-OI04 Camera Features
- Built-in AI: Delivers accurate object classification, enhancing situational awareness and security automation.
- Integrated Recess Mount: Comes with a backbox and a range of IO options including Micro HDMI, making installation versatile and straightforward.
- Exposure Profile Settings: Allows the mini-dome to adapt to various scenarios such as license plate recognition and gaming, ensuring optimal performance in diverse conditions.
- Ultra Low Light Capabilities: Maintains color image quality without IR, ensuring clear visibility even in low-light scenarios.
American Dynamics IPS08-D14-OI04 Detailed Camera Specifications
| Camera Model | IPS08-D14-OI04 |
| Resolution | 8 Megapixels |
| Lens | 6-22mm |
| AI Capabilities | Built-in AI object classification |
| Mounting Type | Integrated recess mount with backbox |
| Input/Output Options | Micro HDMI, WiFi configuration |
| Exposure Settings | Customizable exposure profiles |
| Low Light Performance | Ultra low light capability for color images |
SKU  | IPS08-D14-OI04 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution, Facial Recognition |
| Manufacturer | American Dynamics |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 6-22mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | Ø138 x 135mm |
| Electronic Shutter | ≥ 1/10,000 to 1/4 s |
| Image Device | Sony IMX33 |
| Minimum Scene Illumination | Color, 1/4s, 30 IRE, AGC: 0.02 Lux, B/W, 1/4s, 30 IRE, AGC: 0.0005 Lux, W/IR: 0.0 Lux |
| Operating Humidity | Up to 90% Non-Condensing |
| Operating Temperature | -50° to +65°C |
| OSD Menu | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, English (default), French, German, Hungarian, Italian, Japanese, Korean, Netherlands, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
| Power Consumption | PoE 12.95W, 24 VAC 16.5W |
| Privacy Zone | 8 |
| Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnPâ„¢, SIP |
| Video Output | 2 input, 2 output |
| Weatherproof | IP66/IP67 |
| Angle of View | Wide (H/V): 50°/28° , Telephoto (H/V): 24°/14° |
| Motion Detection Tracking | 3 |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
