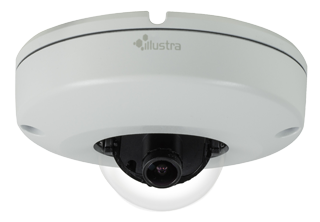

American Dynamics IPS02CFOCWST 2 Megapixel Network Outdoor Mini-Dome Camera, 2.8mm Lens
SKU
IPS02CFOCWST
Model No
IPS02CFOCWST
$333.95
Product Highlights
- 2MP Models Provide True HD Quality Images
- VideoEdge TrickleStor Technology for Edge-Based Failover Redundancy
- Day/Night Functionality Allows Quality Video Recording in Low Light Conditions
- Illustra IntelliZip offers Powerful Video Compression Technology for Bandwidth Management
- Compact Design Allows for Discreet Deployments
Speak to an expert
The American Dynamics IPS02CFOCWST 2 Megapixel Network Outdoor Mini-Dome Camera is engineered to deliver high-definition video quality in a compact and discreet design, ensuring effective surveillance in sensitive areas such as retail stores, banks, and healthcare facilities. With robust weather and vandal resistance ratings, True Wide Dynamic Range capabilities, and easy integration with existing systems, this camera provides outstanding security performance while minimizing installation costs.
American Dynamics IPS02CFOCWST Camera Features
- 2MP Models: Provide True HD quality images for crystal-clear video capture.
- VideoEdge TrickleStor Technology: Ensures edge-based failover redundancy, maintaining video recording during network interruptions.
- Day/Night Functionality: Allows for quality video recording in low light conditions, enhancing surveillance capabilities around the clock.
- Illustra IntelliZip: Offers powerful video compression technology for efficient bandwidth management, optimizing storage usage.
- Compact Design: Allows for discreet deployments in sensitive locations without drawing attention.
- True Wide Dynamic Range: Enables clear visibility in areas with varying light levels, ensuring comprehensive monitoring.
- Motion Detection: Instantly alerts operators to intruders, enhancing security response times.
- Corridor Mode: Provides vertical field of view orientation for monitoring hallways or store aisles effectively.
- License to a VideoEdge Network Video Recorder: Available at no additional cost, reducing total cost of ownership.
- IP67-Rated Enclosure: Protects against dust and water damage, ensuring durable outdoor performance.
- IK10 Vandal-Resistant Rating: Offers protection against impact, ensuring long-lasting reliability in high-risk areas.
- ONVIF Profile S Conformant: Allows for simplified video integration with various systems, enhancing compatibility.
American Dynamics IPS02CFOCWST Detailed Specifications
| Camera Resolution | 2 Megapixel |
| Lens | 2.8mm |
| Weather Resistance | IP67 |
| Vandal Resistance Rating | IK10 |
| Dynamic Range | True Wide Dynamic Range up to 120dB |
| Integration | ONVIF Profile S |
| Motion Detection | Yes |
| Video Compression | Illustra IntelliZip |
| TrickleStor Technology | Yes |
| Day/Night Functionality | Yes |
| Corridor Mode | Yes |
SKU  | IPS02CFOCWST |
|---|---|
| Features | Auto Gain Control, Day/Night, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | American Dynamics |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 110x52mm |
| Image Device | 1/2.8” CMOS |
| Minimum Scene Illumination | 0.01 Lux |
| Operating Temperature | -40ºC to 50ºC (-40ºF to 122ºF) |
| OSD Menu | Arabic, Czech, Chinese (Simplified), Chinese (Traditional), Danish, Dutch, English (US), French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese (Brazilian), Russian, Spanish, Swedish, Turkish |
| Power Consumption | 6W |
| Privacy Zone | 9 Zones |
| Protocols | TCP/IP, IPv4, IPv6, UDP, FTP, DHCP, WS-Discovery, WS-Addressing, DNS, DDNS, RTP, RTSP, RTCP, TLS, Unicast, Multicast, NTP, SMTP, WSSecurity, IEEE 802.1x, PEAP, SSH, HTTP, HTTPS, SOAP, CIFS, SNMP, UPnP, LLDP, ONVIF |
| Weatherproof | IP66, IP67 |
| Motion Detection Tracking | 3 Zones |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
