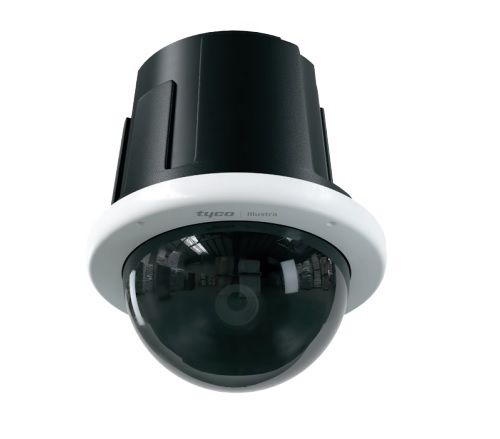

American Dynamics IPS02-P07-RT04 2 Megapixel Indoor PTZ Camera, 30X Lens
- Object classification combined with event rules to pinpoint forensic searches or trigger events
- Large zoom capacity to identify important features at a greater distance
- Auto-tracking based upon face or person detection
- True WDR and Day/Night function for 24/7 use and deployment in variable lighting conditions
- Advanced analytics on-board, such as Object Removed, Queue Formation, Loitering and more

The IPS02-P07-RT04 from American Dynamics is a 2 Megapixel Indoor PTZ Camera, 30X Lens.
Maintain Control and Detail with a Responsive, Accurate PTZ
The exceptional speed and silence of the Illustra Pro PTZ coupled with ultra-low latency performance gives security personnel the ability to accurately track subjects in mission-critical applications. The camera employs zoom-adjusted program technology to automatically control the pan and tilt speed in proportion to the amount of zoom used, delivering precise pan and tilt control. Using programmed presets and tours, the Illustra Pro PTZ moves into position at up to 700° per second.
Safeguard Against Cyber Attacks Across Devices
Illustra Pro Cameras have been designed to be resilient against cyber-threats. Our products are gated, analyzed, tested, and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program for every consecutive release. This holistic approach is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.
Situational Awareness with AI and Analytics
Building intelligence into the camera, such as Object Classification can reduce the burden on the operators to review, or view live, vast amounts of video footage. The rule-based AI can be used to effectively reduce the amount of video presented to an operator so they can concentrate on the important and critical situations.
Achieve Clarity Despite Challenging Scene and Lighting Conditions
With up to a 30X zoom capability, True Day/Night and WDR functionality, the Illustra Pro 4 PTZ can be deployed in various situations where light or distance can be a challenge, such as inside warehouses, department stores, and shopping malls.
Features
- Object Classification: combined with event rules to pinpoint forensic searches or trigger events.
- Large Zoom Capacity: to identify important features at greater distances, enhancing monitoring and security capabilities.
- Auto-Tracking: based upon face or person detection for improved surveillance efficiency.
- True WDR and Day/Night Function: ensures 24/7 use in variable lighting conditions, enhancing reliability.
- Advanced Analytics: on-board features like Object Removed, Queue Formation, and Loitering to automate threat detection.
- Fast and Accurate Reaction: features a Pan/Tilt Speed of up to 700°/sec and a preset accuracy of <0.1° for precise tracking and monitoring.
American Dynamics IPS02-P07-RT04 Camera Specifications
| Camera Resolution | 2 Megapixels |
| Zoom Capability | 30X Optical Zoom |
| Pan/Tilt Speed | Up to 700°/sec |
| Accuracy | Preset accuracy of <0.1° |
| Day/Night Functionality | True Day/Night |
| Wide Dynamic Range | True WDR |
| Advanced Analytics | On-board features: Object Removed, Queue Formation, Loitering |
| Cybersecurity Standards | Compliant with Johnson Controls Cyber Solutions Product Security Program |
