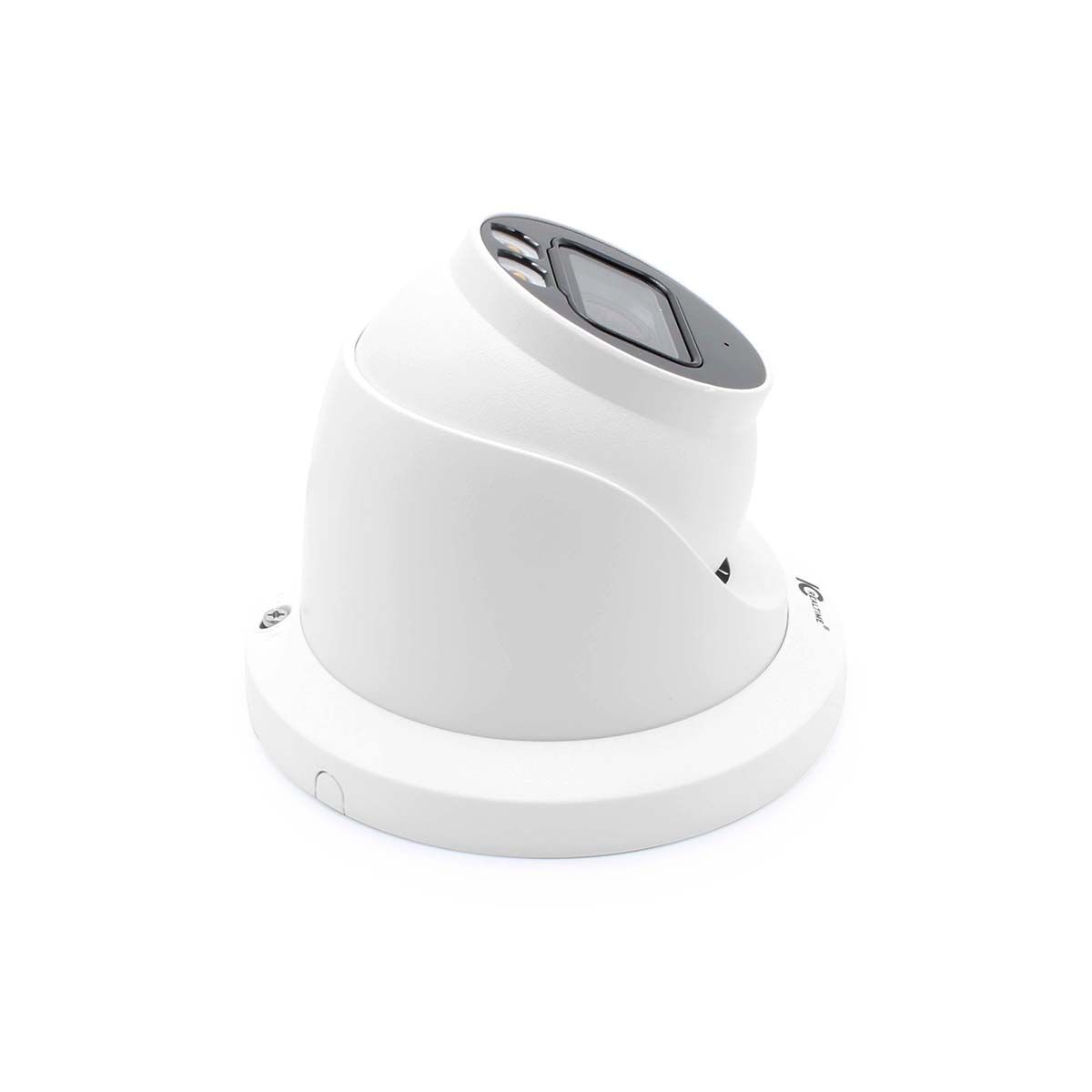

ICRealtime IPMX-E40F-W1-LED 4 Megapixel IP Indoor/Outdoor IR Eyeball Dome Camera with 2.8mm Lens

SKU
IPMX-E40F-W1-LED
Model No
IPMX-E40F-W1-LED
$410.00
Qty:
Product Highlights
    • 1/2.7”CMOS | 4MP | 30fps@4MP
    • 2.8mm | Fixed | AoV 103
    • Max. Illumination Length 98ft | Colored Starlight (ISniper+)
    • Intelligent Motion Detect | Perimeter Protection | Built-In Mic
    • IP67 | 12VDC Or PoE | Max. 8.5W

The IPMX-E40F-W1-LED is the newest camera in the Max line which features enhanced imaging and low light imaging due to 120dB WDR and Starlight support. The camera is equipped with a 2.8mm lens on top of an 1/2.7” low illuminance, high image definition I-Sniper+ CMOS image sensor paired with warm light LED technology, reaching more than 98ft max distance at night. This combination provides a crisp, vibrant, full color image under the most demanding lighting conditions.

The camera also comes with AI features such as Intelligent Motion Detect (iMD) and Perimeter Protection technology, which filters moving objects as vehicle or person on motion detect or when setting up virtual tripwire and intrusion zones. This helps reduce false alarms and streamline the playback search functionality when used with IC Realtime AI NVRs.

Features

  • 1/2.7”CMOS | 4MP | 30fps@4MP
  • 2.8mm | Fixed | AoV 103
  • Max. Illumination Length 98ft | Colored Starlight (ISniper+)
  • Intelligent Motion Detect | Perimeter Protection | Built-In Mic
  • IP67 | 12VDC Or PoE | Max. 8.5W
  • Made In South Korea And Conforms To The Trade Agreements Act (TAA)
SKU  IPMX-E40F-W1-LED
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  ICRealtime
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    4 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Wall
Compression Method    H.264B, H.264H, H.264, M-JPEG, H.265
Durability    Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto / Manual
Dimensions (W x H)  3.9" × 4.8" (99.1 mm × 121.9 mm)
Image Device    1/2.7”4 Megapixel progressive CMOS
Image Pixels-Effective2688(H) x 1520(V) 4 Megapixels
IR LEDs  2
IR Wavelength  850 nm
Minimum Scene Illumination  0.003 [email protected]
Operating Humidity    Less than 95% RH
Operating Temperature    -30 C ~ +60 C (-22 F ~ +140 F)
Power Consumption  <8.5W
Privacy Zone    Off / On (4 Area Rectangle)
Protocols  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Mirror    Off / On
Angle of View    Horizontal 103° × vertical 53
Motion Detection Tracking    Off / On (4 Zones Rectangular)
Back Light Compensation  BLC / HLC / WDR
Automatic White Balance    Auto / Natural / Street Lamp / Outdoor / Manual
IR Distance  30m/98ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
