ICRealtime IPMX-E40F-IRW1-AI 4 Megapixel Starlight AI Eyeball Network Camera, 2.8mm Lens
SKU
IPMX-E40F-IRW1-AI
Model No
IPMX-E40F-IRW1-AI
$528.00
Product Highlights
- 1/1.8” 4 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 25/30fps@4M (2688 × 1520)
- WDR (140 dB), Day/Night (Electronic), 3D DNR, AWB, AGC, BLC
- 2.8mm fixed lens, Built-In Microphone

Speak to an expert
The IPMX-E40F-IRW1-AI from ICRealtime is the newest camera in the Max line which features deep-learning Artificial Intelligence algorithms to significantly improve accuracy and help eliminate false positives. This camera pairs with our AI enhanced NVRs and HDVRs to enable real-time facial recognition and Advanced People counting. This eyeball dome style camera also features enhanced imaging and low light support due to advanced 140dB WDR and Colored Starlight (ISniper+) support. It is also equipped with Smart IR technology with 131ft max distance at night as well as a built-in microphone for audio and 256GB Micro SD support.
ICRealtime IPMX-E40F-IRW1-AI Camera Features
- 4 Megapixel Sensor: 1/1.8″ progressive scan CMOS delivers clear and high-resolution images.
- Advanced Encoding: H.265 & H.264 triple-stream encoding optimizes storage use and enhances streaming performance.
- High Frame Rate: 25/30fps@4M ensures smooth video recording and playback.
- Intelligent Video Analytics: IVS, AI Supported Perimeter Protection, Face Detect, and People Counting for enhanced security and monitoring.
- Superior Imaging Technology: WDR (140 dB) and Day/Night functionality improve clarity in varying light conditions.
- Fixed Lens: 2.8mm lens paired with a built-in microphone enhances situational awareness.
- Night Vision: Colored Starlight (ISniper+) support with a max IR length of 131ft for clear night monitoring.
- Durability: IP67 rating for protection against dust and water, making it suitable for outdoor use.
- Power over Ethernet (PoE): Simplifies installation with power and data running through a single cable.
ICRealtime IPMX-E40F-IRW1-AI Detailed Specifications
| Camera Type | Eyeball Network Camera |
| Resolution | 4 Megapixel (2688-1520) |
| Lens | 2.8mm fixed lens |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Frame Rate | 25/30fps@4M |
| Night Vision | Supports Colored Starlight (ISniper+), Smart IR with 131ft max distance |
| Video Encoding | H.265 & H.264 triple-stream encoding |
| Imaging Features | 140 dB WDR, Day/Night (Electronic), 3D DNR, AWB, AGC, BLC |
| Audio | Built-In Microphone |
| Durability Rating | IP67 |
| Power Source | PoE |
| Micro SD Support | Up to 256GB |
| SKU | IPMX-E40F-IRW1-AI |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

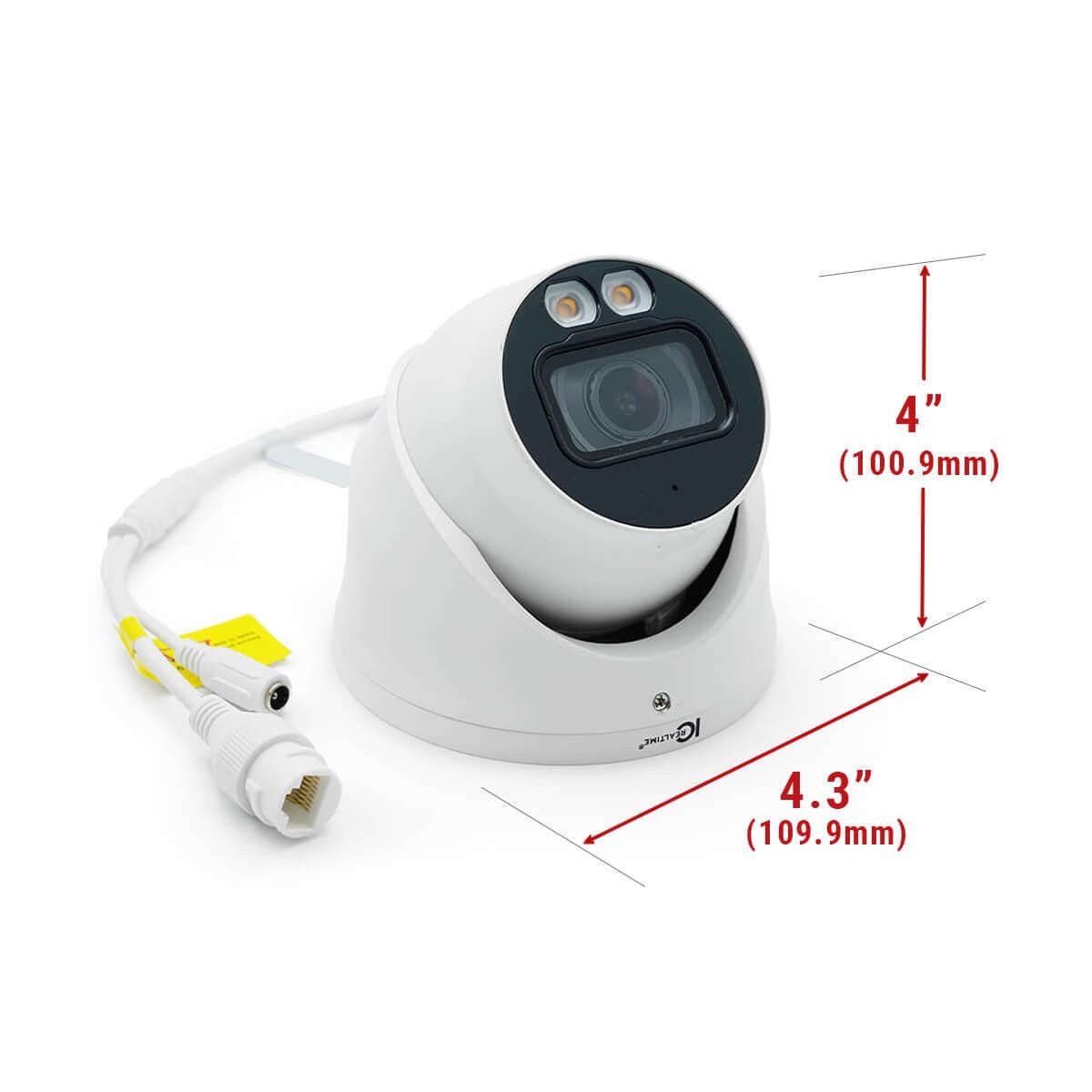

| Dimensions (W x H) | 106 mm × 99.2 mm (4.17” × 3.91”) |
| Electronic Shutter | Auto/Manual, 1/3 s–1/100000 s |
| Image Device | 1/1.8” 4 Megapixel progressive scan CMOS |
| Image Pixels-Effective | 2688 (H) x 1520 (V) |
| IR LEDs | 2 |
| Minimum Scene Illumination | 0.002 [email protected] |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | -30° C ~ +60° C (-22° F ~ +140° F) |
| Power Consumption | <7.2W |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, N TP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | H: 113°, V: 60° |
| Rotation Angle | 0 ̊–360 ̊ |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / WDR (140dB) |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 40m/131ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
