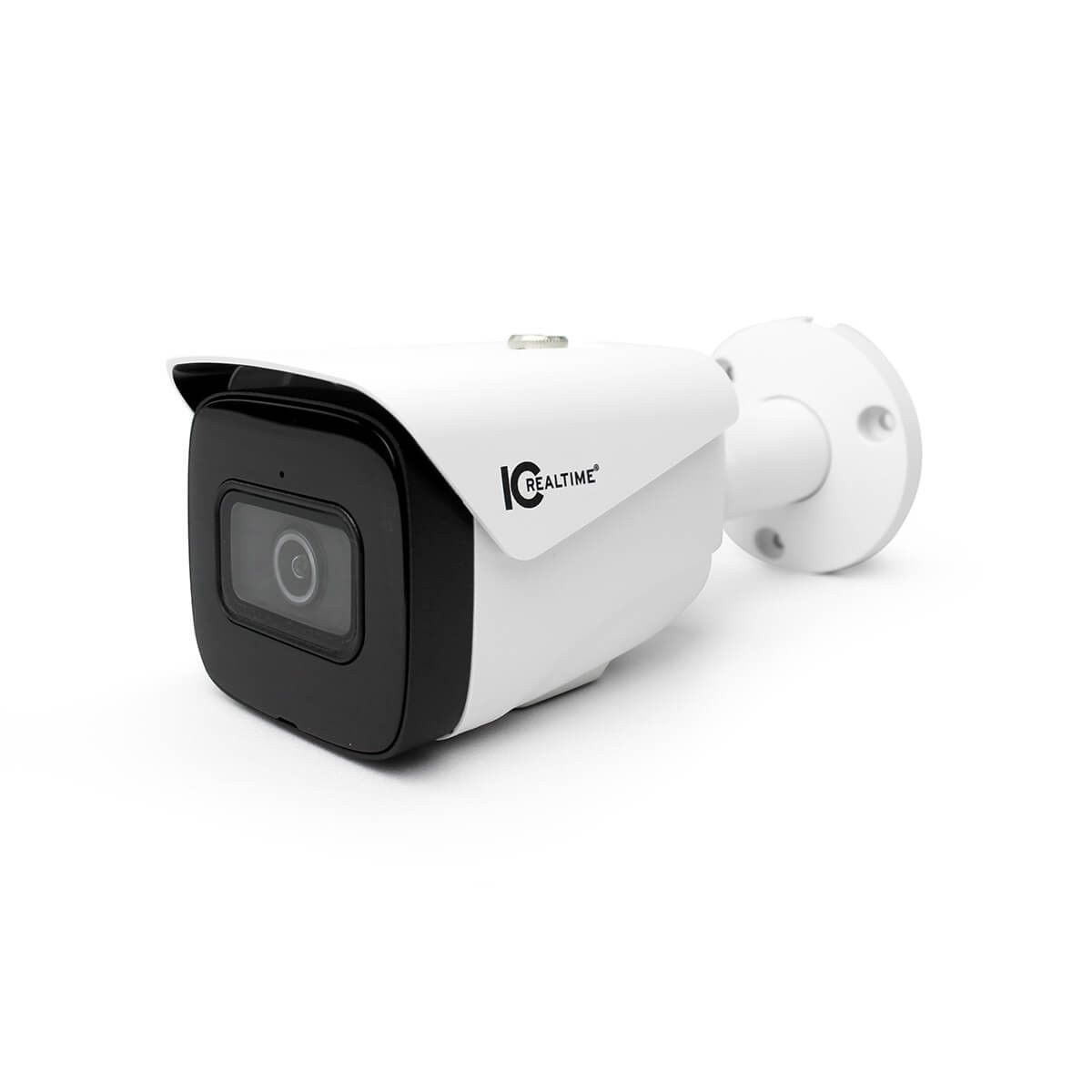

ICRealtime IPMX-B40F-IRW2 4 Megapixel Starlight Mini Bullet Network Camera, 2.8mm Lens
- 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
- H.265 & H.264 triple-stream encoding
- 4MP (2688 × 1520)@30 fps
- Intelligent Motion Detect and Perimeter Protection
- WDR (120dB), 3D DNR, HLC, BLC
The IPMX-B40F-IRW2 from ICRealtime is the newest camera from the Max line of IP cameras now upgraded with our newest technology including AI support and Starlight. This mini bullet camera provides 30FPS@ 4MP (2688 × 1520) with H.265 support and equipped with a 1/2.8” low illuminance, high image definition CMOS image sensor on top of 2.8mm lens. Combined with Starlight support, 164 feet of IR distance and 120dB WDR, the camera provides a crisp, vibrant image under the most demanding lighting conditions. With Intelligent Motion Detect (iMD) and Perimeter Protection technology, you can filter moving objects as vehicle or person on motion detect or when setting up virtual tripwire and intrusion zones. This helps reduce false alarms and streamline the playback search functionality.
Features
- 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
- H.265 & H.264 triple-stream encoding
- 4MP (2688 × 1520)@30 fps
- Intelligent Motion Detect and Perimeter Protection
- WDR (120dB), 3D DNR, HLC, BLC
- 2.8mm fixed lens
- Starlight support, Max. IR LEDs Length 164ft
- 256GB Micro SD Support, IP67, PoE
SKU  |
IPMX-B40F-IRW2 |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
ICRealtime |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
101 Feet + |
| Resolution |
4 Megapixel |
| Lens Type |
Fixed |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Indoor, Weather Resistant |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Auto / Manual |
| Dimensions (W x H) |
192.7 mm × 70.5 mm × 66.4 mm (7.5" × 2.77" × 2.6") |
| Electronic Shutter |
Auto/Manual 1/3 s–1/100000 s |
| Image Device |
1/3”4 Megapixel progressive CMOS |
| Image Pixels-Effective | 2688 (H) ×1520 (V) |
| IR LEDs |
1 |
| Minimum Scene Illumination |
0.005 Lux@F1.6 |
| Operating Humidity |
Less than 95% |
| Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
| Power Consumption |
<5.4W |
| Privacy Zone |
Off / On (4 Area, Rectangle) |
| Protocols |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, N TP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| S/N Ratio |
> 56 dB |
| Scanning System |
Progressive |
| Weatherproof |
IP67 |
| Digital Noise Reduction |
3DNR |
| Mirror |
Off / On |
| Angle of View |
Horizontal: 103°; vertical: 55° |
| Rotation Angle | 0˚~360˚ |
| Motion Detection Tracking |
Off / On (4 Zone, Rectangle) |
| Back Light Compensation |
BLC / HLC / WDR (120dB) |
| Automatic White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance |
50m/164ft |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
