ICRealtime IPMX-B20F-IRW2 2 Megapixel Starlight Network IR Mini Bullet Camera, 2.8mm Lens
SKU
IPMX-B20F-IRW2
Model No
IPMX-B20F-IRW2
$308.00
Product Highlights
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- H.265 & H.264 triple-stream encoding
- 30fps@1080P(1920 × 1080)
- Intelligent Motion Detect and Perimeter Protection
- WDR(120dB), 3D DNR, HLC, BLC
Speak to an expert
The ICRealtime IPMX-B20F-IRW2 is an advanced 2 Megapixel Starlight Network IR Mini Bullet Camera that offers superior video quality and exceptional low-light performance. Equipped with a 2.8mm lens and cutting-edge technology such as AI support, this camera ensures clear and vibrant images even in challenging lighting conditions. With features like Intelligent Motion Detection and Perimeter Protection, it minimizes false alarms while delivering high-performance surveillance capabilities up to 164 feet with IR assistance.
ICRealtime IPMX-B20F-IRW2 Camera Features
- 2MP Image Sensor: Utilizes a 1/2.8″ CMOS sensor for low illuminance, ensuring high-definition clarity.
- Advanced Encoding: Supports H.265 & H.264 triple-stream encoding for efficient data compression and bandwidth usage.
- High Frame Rate: Achieves 30fps at 1080P (1920-1080), providing smooth video playback and minimal motion blur.
- Intelligent Motion Detection: Reduces false alarms with smart filtering of detected movement, differentiating between vehicles and people.
- Wide Dynamic Range: 120dB WDR technology enhances image quality in high-contrast lighting scenarios.
- Fixed Lens: The 2.8mm lens offers a wide field of view for comprehensive area coverage.
- Starlight Technology: Delivers exceptional image quality in low light, with a maximum IR distance of 164ft for night surveillance.
- Storage and Durability: Supports up to 256GB Micro SD, with an IP67 rating for outdoor use and PoE compatibility for easy installation.
ICRealtime IPMX-B20F-IRW2 Detailed Specifications
| Product Type | 2 Megapixel Mini Bullet Camera |
| Model Number | IPMX-B20F-IRW2 |
| Sensor Type | 1/2.8″ CMOS |
| Resolution | 1920-1080 |
| Frame Rate | 30fps |
| Lens | 2.8mm fixed lens |
| IR Distance | Max. 164ft |
| WDR | 120dB |
| Motion Detection | Intelligent Motion Detect & Perimeter Protection |
| Storage | 256GB Micro SD support |
| Ingress Protection | IP67 |
| Power over Ethernet (PoE) | Yes |

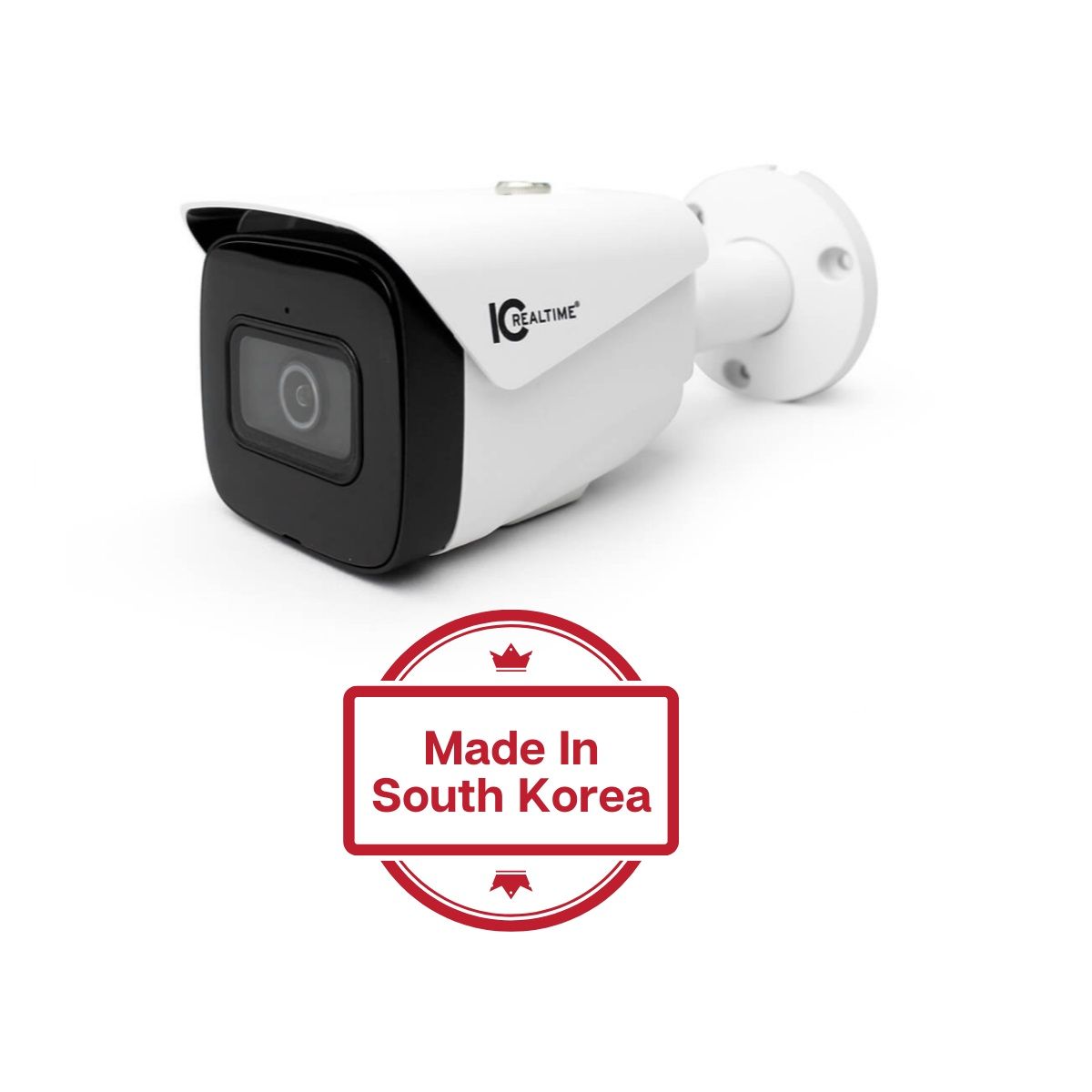

| Country of Manufacture | South Korea |
| Trade Agreements Act Compliance | Yes |
SKU  | IPMX-B20F-IRW2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

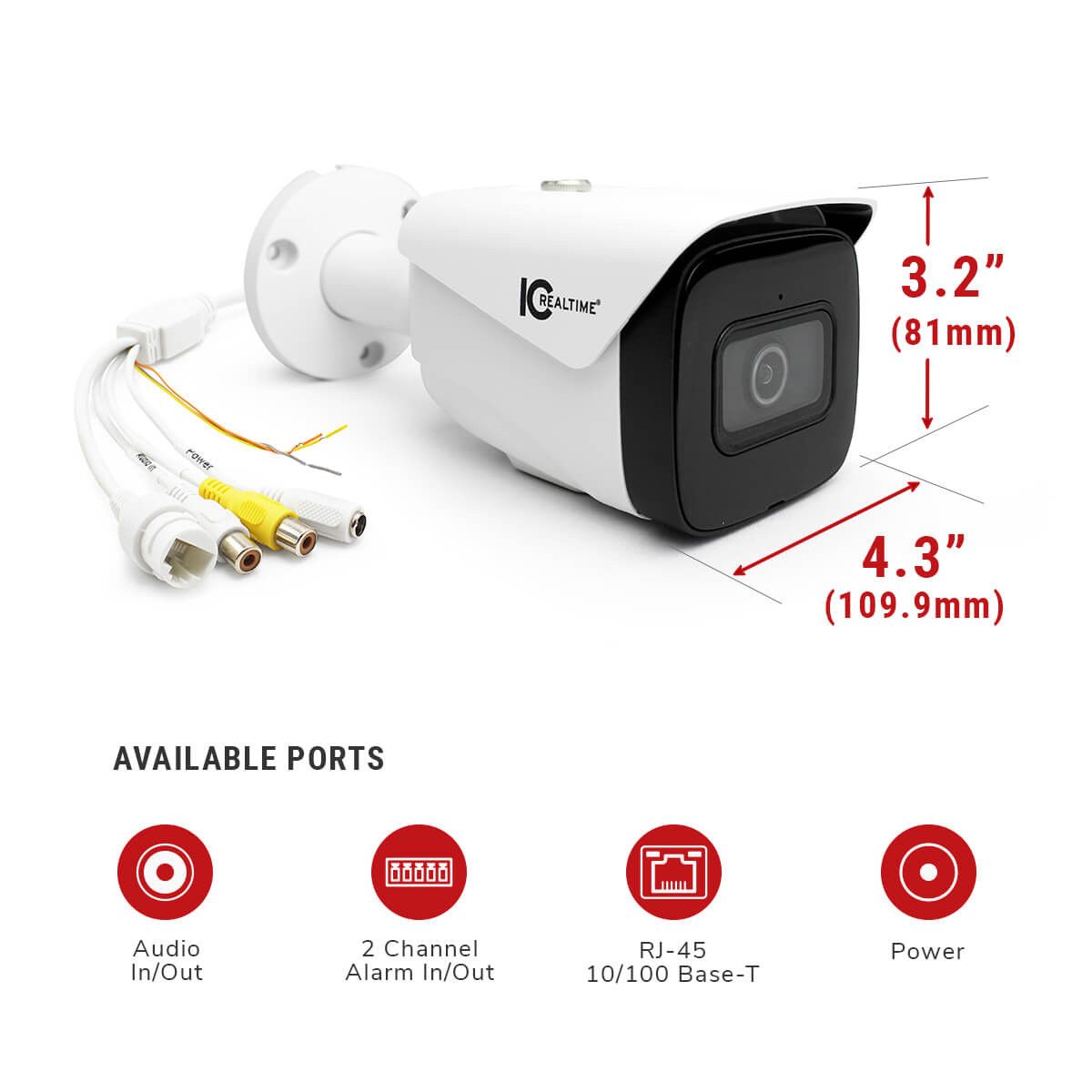

| Dimensions (W x H) | 192.7 mm × 70.5 mm × 66.4 mm (7.5" × 2.77" × 2.6") |
| Electronic Shutter | Auto/Manual 1/3 s–1/100000 s |
| Image Device | 1/2.8” 2 Megapixel progressive CMOS |
| Image Pixels-Effective | 1920 (H) × 1080 (V) |
| IR LEDs | 1 |
| Minimum Scene Illumination | 0.002 [email protected] |
| Operating Humidity | Less than 95% |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Consumption | <5.2W |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | Pv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| S/N Ratio | > 56 dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | Horizontal: 106°, Vertical: 57° |
| Rotation Angle | 0˚~360˚ |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / WDR (120dB) |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 50m/164.0ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
