ICRealtime IPMX-B20F-IRB2 2 Megapixel Starlight Network IR Mini Bullet Camera, 2.8mm Lens
SKU
IPMX-B20F-IRB2
Model No
IPMX-B20F-IRB2
$324.00
Product Highlights
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- H.265 & H.264 triple-stream encoding
- 30fps@1080P(1920 × 1080)
- Intelligent Motion Detect and Perimeter Protection
- WDR(120dB), 3D DNR, HLC, BLC
Speak to an expert
The IPMX-B20F-IRB2 from ICRealtime features cutting-edge technology including AI support and Starlight capabilities, ensuring top-notch surveillance with crisp imagery even in low-light conditions. This compact mini bullet camera captures 1080P video at 30FPS, boasting advanced specifications that make it ideal for various security applications. Its intelligent motion detection technology helps mitigate false alarms, providing a reliable and efficient monitoring solution for your safety needs.
ICRealtime IPMX-B20F-IRB2 Key Features
- Image Quality: 2MP, 1/2.8″ low illuminance CMOS sensor delivers high-definition images in challenging lighting.
- Video Encoding: H.265 & H.264 triple-stream encoding optimizes bandwidth usage while maintaining image quality.
- High Frame Rate: 30fps @ 1080P (1920-1080) ensures smooth video capture for real-time monitoring.
- Advanced Detection: Intelligent Motion Detect and Perimeter Protection reduce false alarms and enhance security measures.
- Wide Dynamic Range: 120dB WDR improves image quality in scenes with bright and dark areas.
- Lens Specifications: 2.8mm fixed lens provides a wide field of view for comprehensive coverage.
- Starlight Support: Maximizes visibility in low-light conditions with IR LEDs up to 164 feet.
- Storage Compatibility: Supports up to 256GB Micro SD for ample local storage options; complies with IP67 rating for weather resistance; PoE for easy installation.
ICRealtime IPMX-B20F-IRB2 Detailed Specifications
| Model | IPMX-B20F-IRB2 |
| Sensor Type | 1/2.8″ CMOS |
| Image Resolution | 2 Megapixel (1920-1080) |
| Frame Rate | 30FPS |
| Low Light Technology | Starlight support |
| IR Distance | Up to 164 feet |
| Dynamic Range | 120dB WDR |
| Lens Type | 2.8mm fixed lens |
| Video Compression | H.265 & H.264 triple-stream encoding |
| Storage Option | 256GB Micro SD Support |
| IP Rating | IP67 |
| Power Supply | PoE |
SKU  | IPMX-B20F-IRB2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

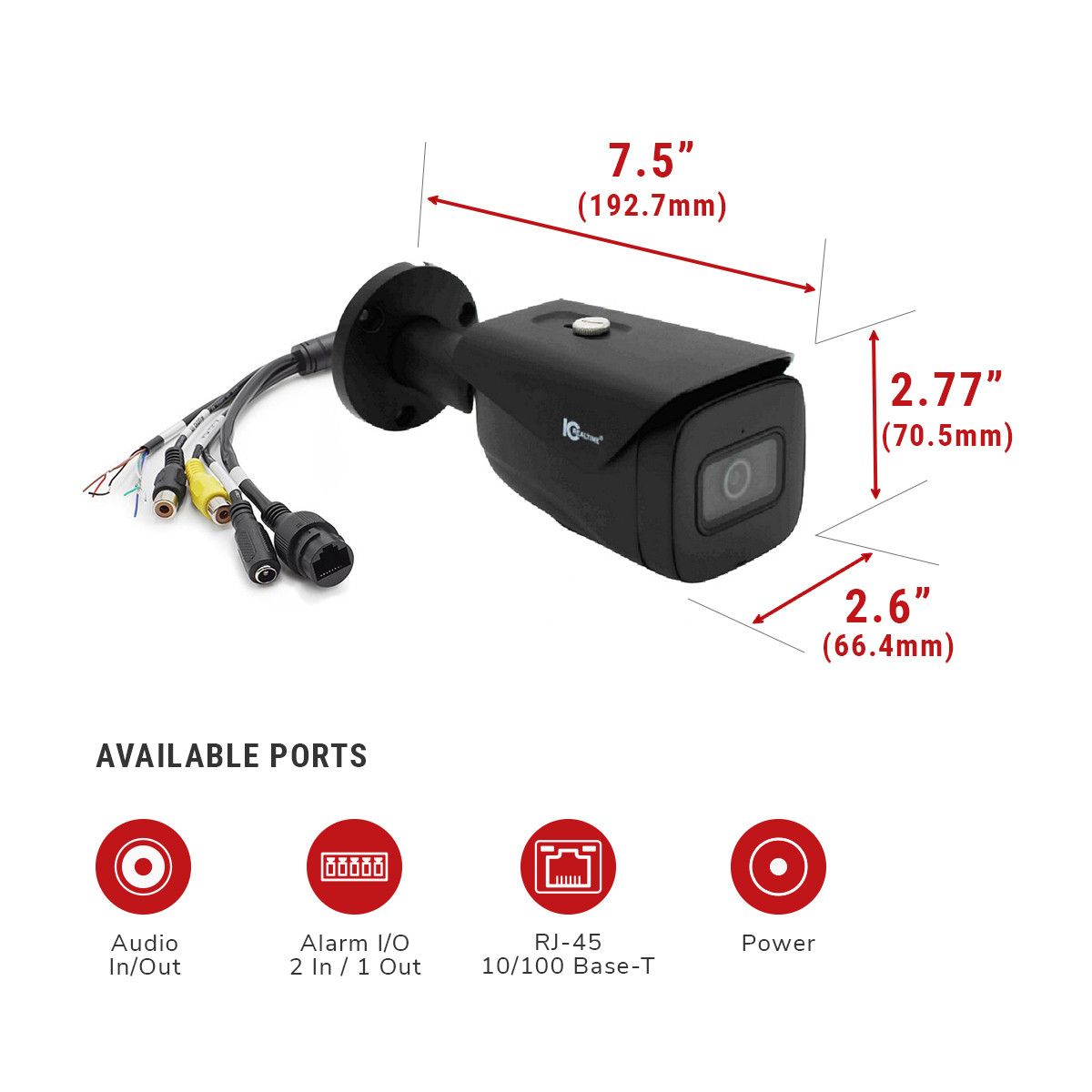

| Dimensions (W x H) | 192.7 mm × 70.5 mm × 66.4 mm (7.5" × 2.77" × 2.6") |
| Electronic Shutter | Auto/Manual 1/3 s–1/100000 s |
| Image Device | 1/2.8” 2 Megapixel progressive CMOS |
| Image Pixels-Effective | 1920 (H) × 1080 (V) |
| IR LEDs | 1 |
| Minimum Scene Illumination | 0.002 [email protected] |
| Operating Humidity | Less than 95% |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Consumption | <5.2W |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | Pv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| S/N Ratio | > 56 dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | Horizontal: 106°, Vertical: 57° |
| Rotation Angle | 0˚~360˚ |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / WDR (120dB) |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 50m/164.0ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
