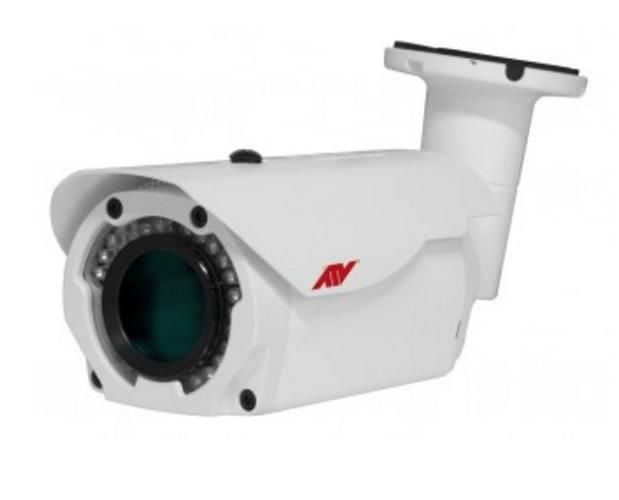

ATV IPLPC2RI 2 Megapixel IP Bullet License Plate Capture (LPC) Camera, 5.1-51mm Lens
SKU
IPLPC2RI
Model No
IPLPC2RI
$1,040.60
Product Highlights
- Designed to Capture License Plate Images at exceptional Video Quality with 2MP, Full HD, 1920 x 1080 Resolution
- Sony Starvis CMOS Sensor with Progressive Scanning for Sharper Video Motion Images
- Remote Focus and Zoom, Motorized 5.1 - 51mm Vari-focal Lens, eliminates need for Hands-on Fine Tuning
- Triple Streaming up to 60-ips @1080p Resolution, using H.264 and MJPEG Compression
- Powerful IR LED Lights for 0Lux Night-Time Operation up to 80ft Range
Speak to an expert
The IPLPC2RI from ATV is a 2 Megapixel IP bullet, License Plate Capture (LPC) Camera, equipped with a 5.1-51mm lens, designed to deliver outstanding performance for license plate recognition. With features like full HD resolution, advanced sensors, and robust night vision capabilities, it's your ideal solution for surveillance and monitoring applications.
ATV IPLPC2RI Camera Features
- Exceptional Image Quality: 2MP, Full HD, 1920 x 1080 resolution ensures clear and detailed license plate captures.
- Enhanced Sensor Technology: Sony Starvis CMOS sensor with progressive scanning provides sharper video motion images and superior low-light performance.
- Remote Focus and Zoom: Motorized 5.1 - 51mm vari-focal lens allows for easy adjustments without manual intervention, streamlining installation.
- High Frame Rate Streaming: Triple streaming capability up to 60-ips @ 1080p resolution offers flexibility for various monitoring needs using H.264 and MJPEG compression.
- Powerful Night Vision: Built-in IR LED lights enable 0Lux night-time operation with an impressive range of up to 80ft.
- Local Storage Capability: A micro-SD card slot allows for easy, local video storage without the need for additional hardware.
- Intelligent Monitoring: Advanced Intelligent Health Monitoring (AIHM) alerts users to any abnormal camera conditions for proactive maintenance.
- Advanced Image Processing: Features like Digital Noise Reduction (3D-DNR), Digital Image Stabilization (DIS), and 2-way audio enhance video quality and user interactions.
- Video Analytics: Integrated video content analysis features such as line and field detection optimize monitoring efficiency.
- Installation Support: Composite video output makes it easier to connect to service monitors during installation or troubleshooting.
- Comprehensive Management Software: ATVision IP Remote Management Client software for Windows and Mac, along with mobile applications for iOS and Android, simplifies camera management.
- Interoperability: ONVIF Profile S compliance ensures compatibility with a wide range of video management solutions.
- Durable Design: IP66 weather-resistant rated housing with built-in heater and through-mount wiring capability for reliable outdoor performance.
- Flexible Power Options: Compatible with PoE+ and 12VDC power sources to suit various installation environments.
ATV IPLPC2RI Detailed Camera Specifications
| Model | IPLPC2RI |
| Resolution | 2 Megapixel, 1920 x 1080 |
| Lens | 5.1 - 51mm Vari-focal |
| Sensor | Sony Starvis CMOS |
| Night Vision | IR LED, 0Lux, up to 80ft |
| Streaming | Triple Streaming up to 60-ips @ 1080p |
| Audio | 2-way Audio |
| Storage | Micro-SD Card Slot |
| Weather Resistance | IP66 Rated |
| Power Options | PoE+ & 12VDC |
| Software Compatibility | ATVision IP Client Software, ONVIF Profile S |
| Additional Features | Digital Noise Reduction, Video Analytics |
SKU  | IPLPC2RI |
|---|---|
| Features | Privacy Masking, Weather Resistant |
| Manufacturer | ATV |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 5.1-51mm |
| Mount Type | Pole |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 10.7 x 3.3 x 3.9in (272 x 85 x 100mm) |
| Electronic Shutter | 1/50,000 ~ 8 sec |
| Image Device | 1/2.8” Sony Starvis CMOS Sensor |
| IR LEDs | 32 |
| Operating Humidity | 0~90% (non-condensing) |
| Operating Temperature | -22º - 122ºF (-30º - 50ºC) |
| Power Consumption | PoE(IEEE802.3at class4 only), 12VDC; 0.47A (23W) @ PoE or1.6A (20W) @ 12VDC (with heater) |
| Privacy Zone | 16 |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Scanning System | Progressive Scan |
| Video Output | 1.0Vp-p @ 75ohm (CVBS) - 3.5pi Stereo Jack |
| Weatherproof | IP66 |
| Zoom Ratio | 16x |
| Digital Noise Reduction | 3D-DNR |
| Angle of View | 54.0°(H) ~ 4.9°(H) |
| Motion Detection Tracking | 16 Programmable Areas (Include Area 8, Exclude Area 8) |
| IR Distance | 25m/65-80ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
