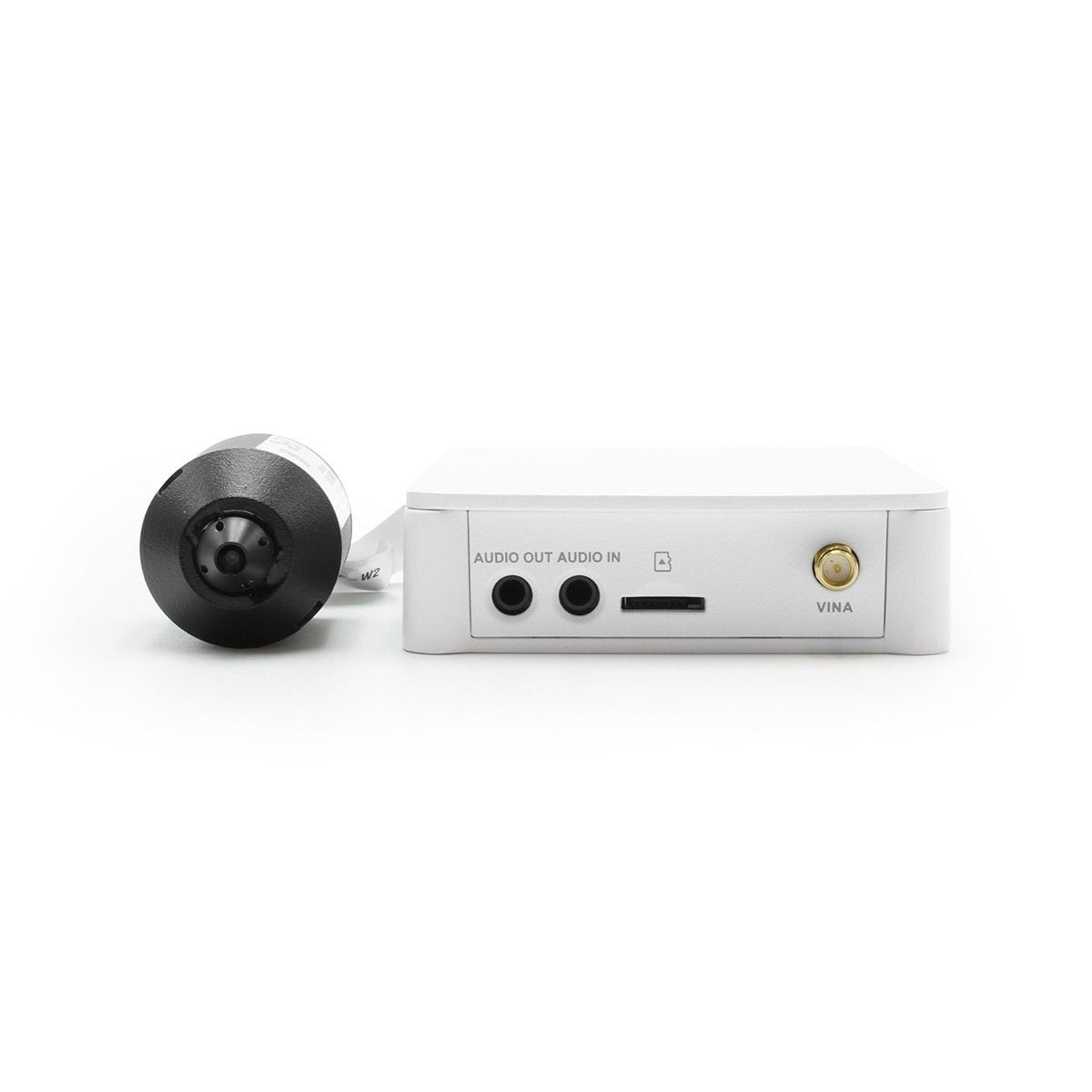

ICRealtime IPFX-S20F-W2 2 Megapixel Indoor Network Covert Mini Pinhole Camera with 2.8mm Lens
SKU
IPFX-S20F-W2
Model No
IPFX-S20F-W2
$706.00
Product Highlights
- 1/2.8 CMOS Starvis 2MP 30fps@2MP
- 2.8mm fixed AoV 105°
- No IR Sensor, No IR LEDs IVS Perimeter Protection
- 1ch audio in 1ch audio out 2ch alarm in 2ch alarm out 256GB mSD
- 12VDC or PoE Max 4.5W
Speak to an expert
IC Realtime's IPFX-S20F-W2 2MP Pinhole Security Camera offers unparalleled discretion for security surveillance with an ultra-compact design and advanced features. It is equipped with a Starlight video chip providing excellent low-light performance, a wide viewing angle, and intelligent detection capabilities all in a nearly invisible unit that can be cleverly concealed. Ideal for various applications from theft prevention to employee monitoring, this security camera delivers reliable performance and versatility.
ICRealtime IPFX-S20F-W2 Unique Features
- Starlight Technology: The cutting-edge video chipset enables color video capture at just 0.005 lux and black & white at 0.0005 lux, ensuring clear images even in low-light environments.
- Compact Design: The tiny camera head measuring less than 2” long and 1.25” in diameter can fit into tight spaces, making it the stealthiest camera possible.
- Flexible Installation: With an integrated 25-foot cable, the camera head can be installed away from the network interface box, allowing versatility in placement.
- FlexSmartAI Integration: Advanced detection features for humans and vehicles allow for intelligent alerts and managing video streams effectively, enhancing security through deep learning.
- Built-in Audio and Alarm Interfaces: Integration with alarm systems is simplified thanks to audio I/O and alarm I/O ports, providing comprehensive monitoring solutions.
- Power Options: The camera supports both 12VDC and PoE, ensuring flexible power supply installation for diverse applications.
ICRealtime IPFX-S20F-W2 Detailed Specifications
| Sensor Type | 1/2.8 CMOS Starvis |
| Resolution | 2MP (1920 x 1080) |
| Frame Rate | 30fps |
| Lens | 2.8mm fixed lens with 105° AoV |
| Low-light Performance | 0.005 lux color / 0.0005 lux B/W |
| Audio Support | 1ch audio in, 1ch audio out |
| Alarm I/O | 2ch alarm in, 2ch alarm out |
| Storage Capacity | Up to 256GB mSD |
| Power Consumption | 12VDC or PoE Max 4.5W |
| Advanced Features | AGC, True WDR, HLC, BLC, 3DNR |
SKU  | IPFX-S20F-W2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Compression Method | H.264B, H.264H, H.264, M-JPEG, H.265 |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |
| Dimensions (W x H) | Body: 110.0mm×82.7mm×24.0mm(4.33”×3.26”×0.95”)Lens: 30.5mm×48.65mm(1.20”×1.91”) |
| Image Device | 1/2.8 CMOS |
| Image Pixels-Effective | 1920(H)x1080(V) |
| IR LEDs | N/A |
| Minimum Scene Illumination | 0.005 [email protected] (Color,30 IRE)0.0005 [email protected] (B/W,30 IRE) |
| Operating Humidity | –40°F to 140°F (–40°C to +60°C) |
| Operating Temperature | –40°F to 140°F (–40°C to +60°C) |
| Power Consumption | Basic: 2.3W (12V DC); 2.8W (PoE)Max. (Intelligence + WDR): 3.7W (12V DC); 4.5W (PoE) |
| Privacy Zone | Off / On (4 Areas Rectangle) |
| Protocols | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP |
| S/N Ratio | More than 50dB |
| Scanning System | Progressive |
| Weatherproof | #N/A |
| Digital Noise Reduction | Ultra DNR (2D/3D) |
| Angle of View | H:105° ,V:58° |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Automatic White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
