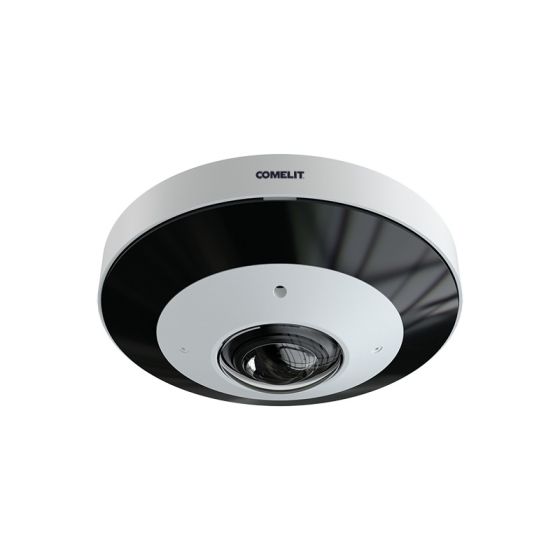

Comelit IPFCAMA12FA 12 Megapixel Network IP Fisheye Camera with 1.65mm Lens
SKU
IPFCAMA12FA
Model No
IPFCAMA12FA
$907.29
Product Highlights
- Camera sensor; 1/1.7" CMOS Progressive Scan
- Lens optical dimensions; 1.65mm
- Horizontal FoV (°); 180 / 360
- Electronic shutter (s); 1/3 ÷ 1/100000
- Sensitivity; 0.01 (colour), 0 (B/W, led IR ON)
Speak to an expert
Advance series Fisheye IP camera, fixed 1.65mm lens, viewing angle 360?, resolution 12MP @30fps. Fisheye / Panoramic / PTZ viewing. IR LEDs with a range of 20 metres. Onvif compatible, compression H.265+ / H.265/ H.264+ / H.264 MJPEG. Video analysis functions: Line cross detection (distinction between humans / vehicles), Detection of Entry into / Exit from / Intrusion into an area (distinction between humans / vehicles), Human / vehicle counting on a line. MicroSD slot (max. 256 GB). Audio: 1 in / 1 out / built-in microphone. Alarms: 1in / 1out. IP67 waterproof die-cast aluminium enclosure, power supply 12 VDC/PoE. Compatible with Advance series NVRs with 8 or more channels.
Features
- Camera sensor; 1/1.7" CMOS Progressive Scan
- Lens optical dimensions; 1.65mm
- Horizontal FoV (°); 180 / 360
- Electronic shutter (s); 1/3 ÷ 1/100000
- Sensitivity; 0.01 (colour), 0 (B/W, led IR ON)
- Signal / noise ratio (dB) >50
- Video trasmission; Triple streaming
- Management software; Comelit CCTV Manager
- Video resolution; 12MP
- Video compression; H.265+ / H.265 / H.264+ / H.264 / MJPEG
SKU  | IPFCAMA12FA |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Comelit |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.65mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Electronic Shutter | 1/3 ÷ 1/100000 |
| Image Device | 1/1.7" CMOS Progressive Scan |
| Operating Humidity | (RH max) (%) 25 ÷ 95 |
| Operating Temperature | -30 ÷ 50 |
| Protocols | DDNS, Comelit DNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, P2P, SNMP, IEEE 802.1x, RTMP, ONVIF (Profile-S), ONVIF (Profile-G), ONVIF (Profile-M) |
| S/N Ratio | >50 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3DNR |
| Angle of View | Horizontal FoV (°) 180 / 360 |
| Automatic White Balance | Automatic, Indoor, Manual, Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
