ICRealtime Model IPEL-M80F-IRW2

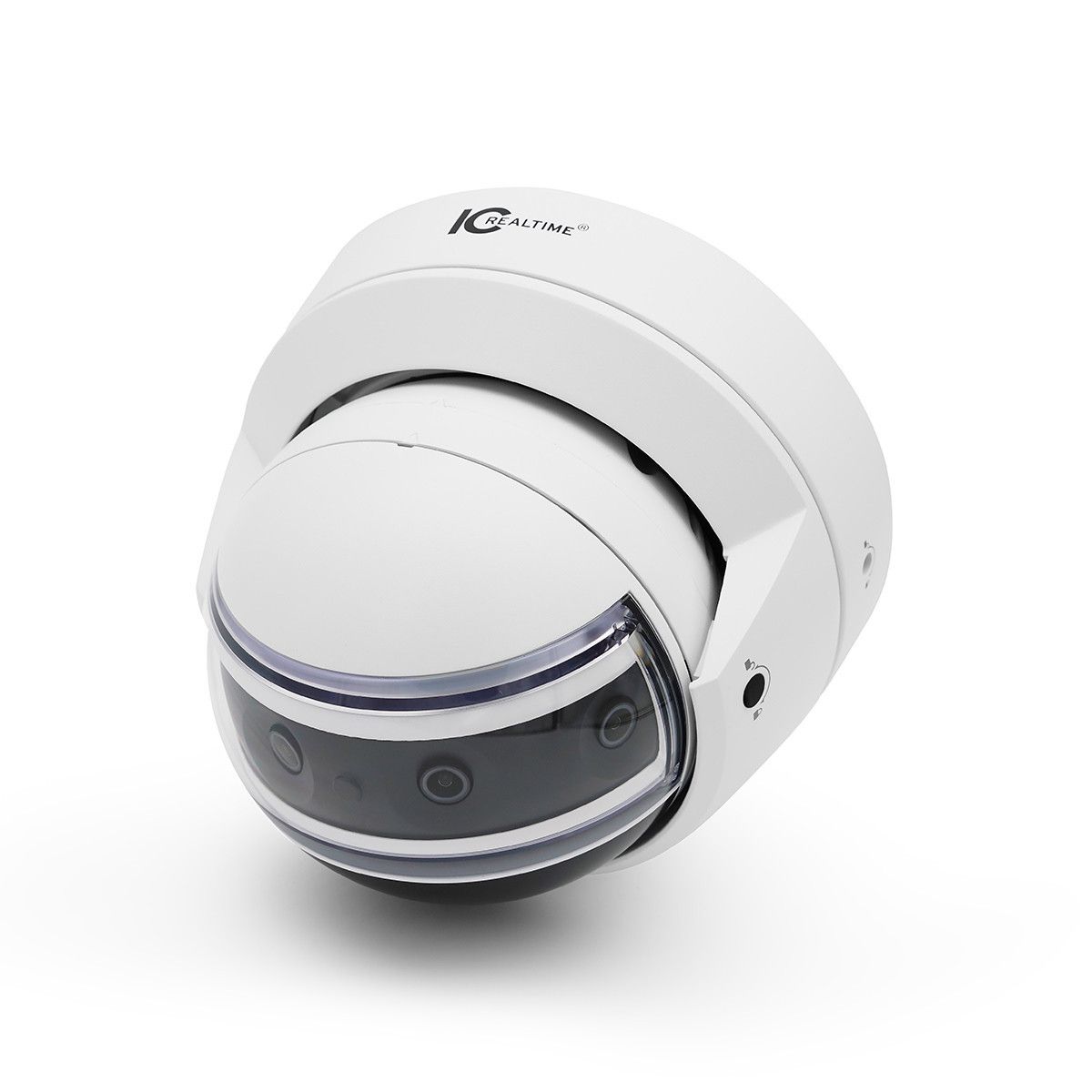

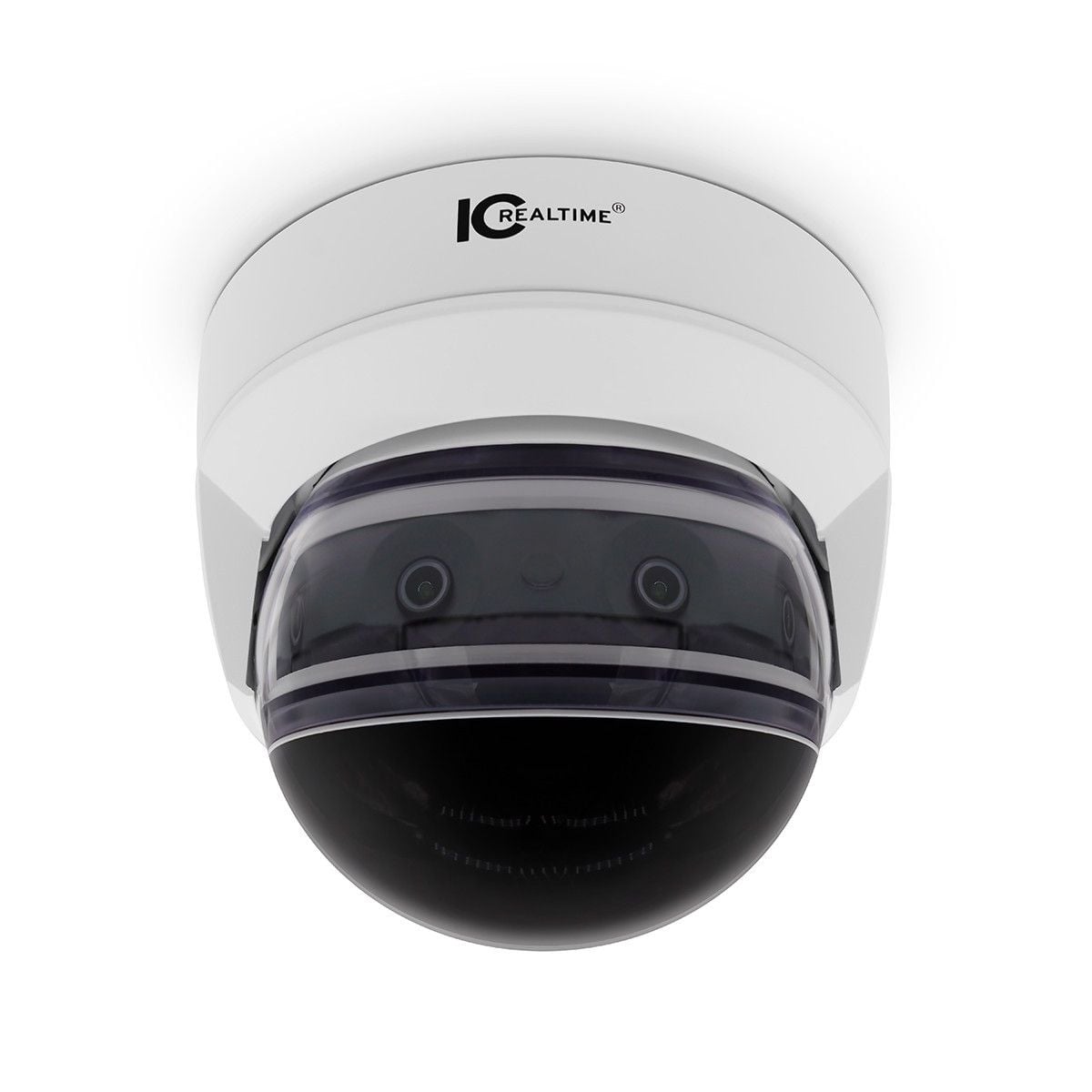

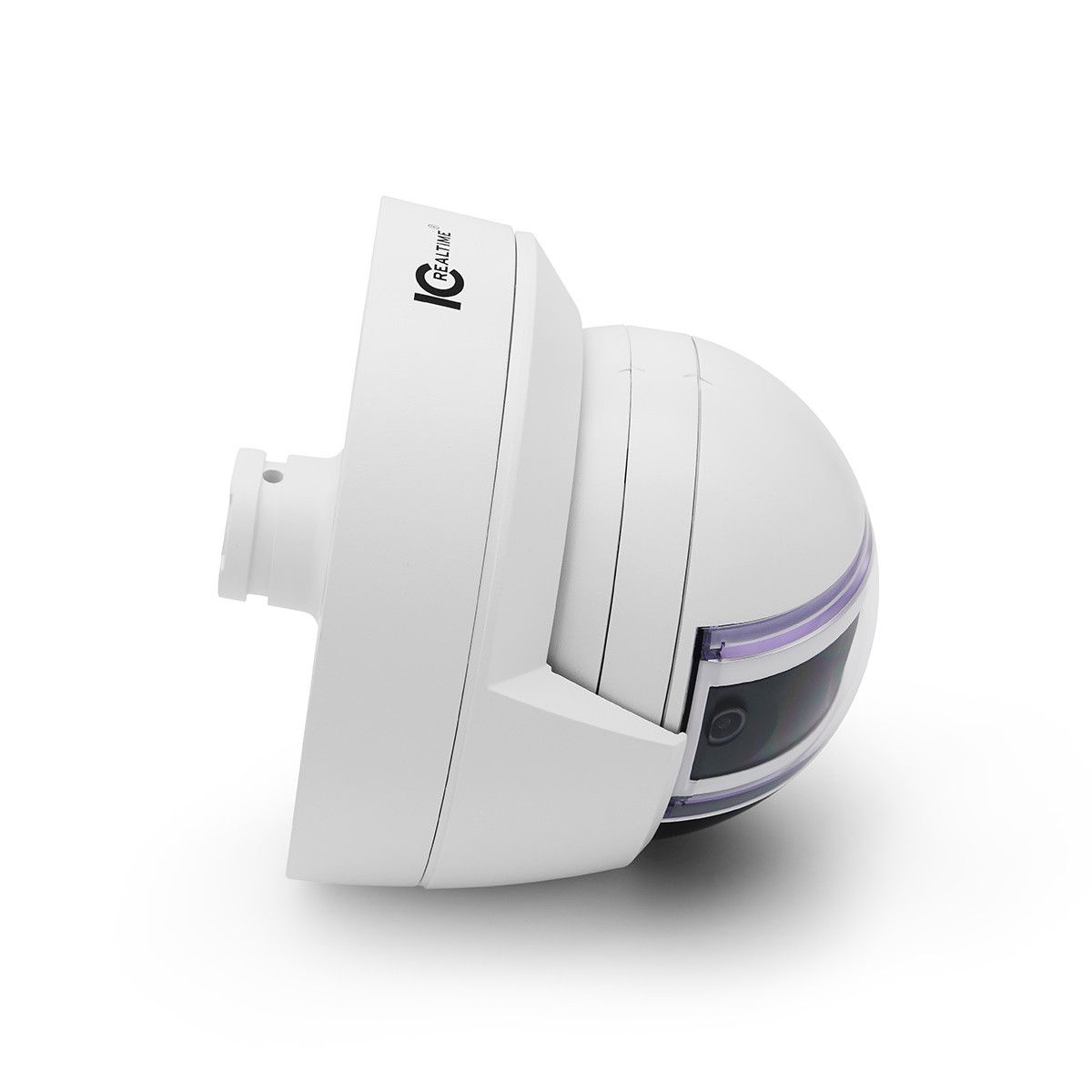

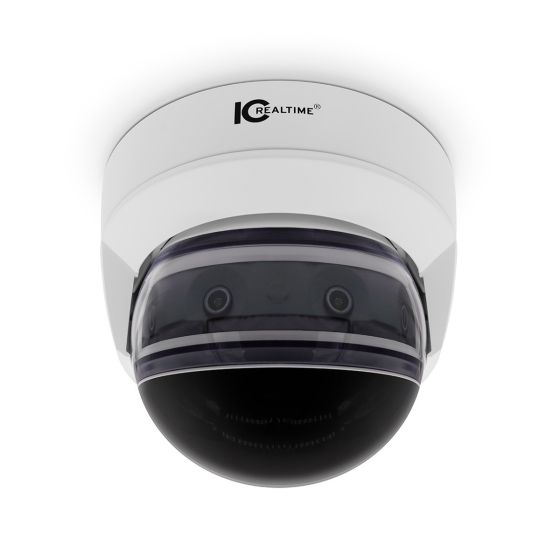

ICRealtime IPEL-M80F-IRW2 4x2MP Multi-Lens Panoramic Network IR Dome Camera, 2.8mm Lens
- 2MP
- 2.8mm
- Night Vision
- Four 1/2.8″ 2MP CMOS, low illuminance, high image definition
- H.265/H.264 triple-stream encoding
- Max 30fps@ 8MP (4096x1800)
- Supports 180-degree panoramic view
- DWDR, 3DNR, AWB, AGC, BLC

Overview
IC Realtime's IPEL-M80F-IRW2 features four 2MP I-Sniper sensors working in unison, creating a panoramic, 180° overview, allowing the camera to replace multiple single sensor cameras at a lower overall cost. The unique 4 lens camera provides added flexibility for capturing wide area surveillance. Each sensor is the latest I-Sniper gen2 chipset which provides vibrant color at the lowest levels of illumination.
Beyond this, the camera also supports the line of Advanced Intelligence notifications, including Tripwire, Intrusion as well as Crowd and Vehicle density. Future proof as well, this camera supports 3 video streams in addition to H.264 and H.265 compression capabilities. Ideal applications for this camera include parking lots, schools, resorts and hotels.
ICRealtime IPEL-M80F-IRW2 Camera Features

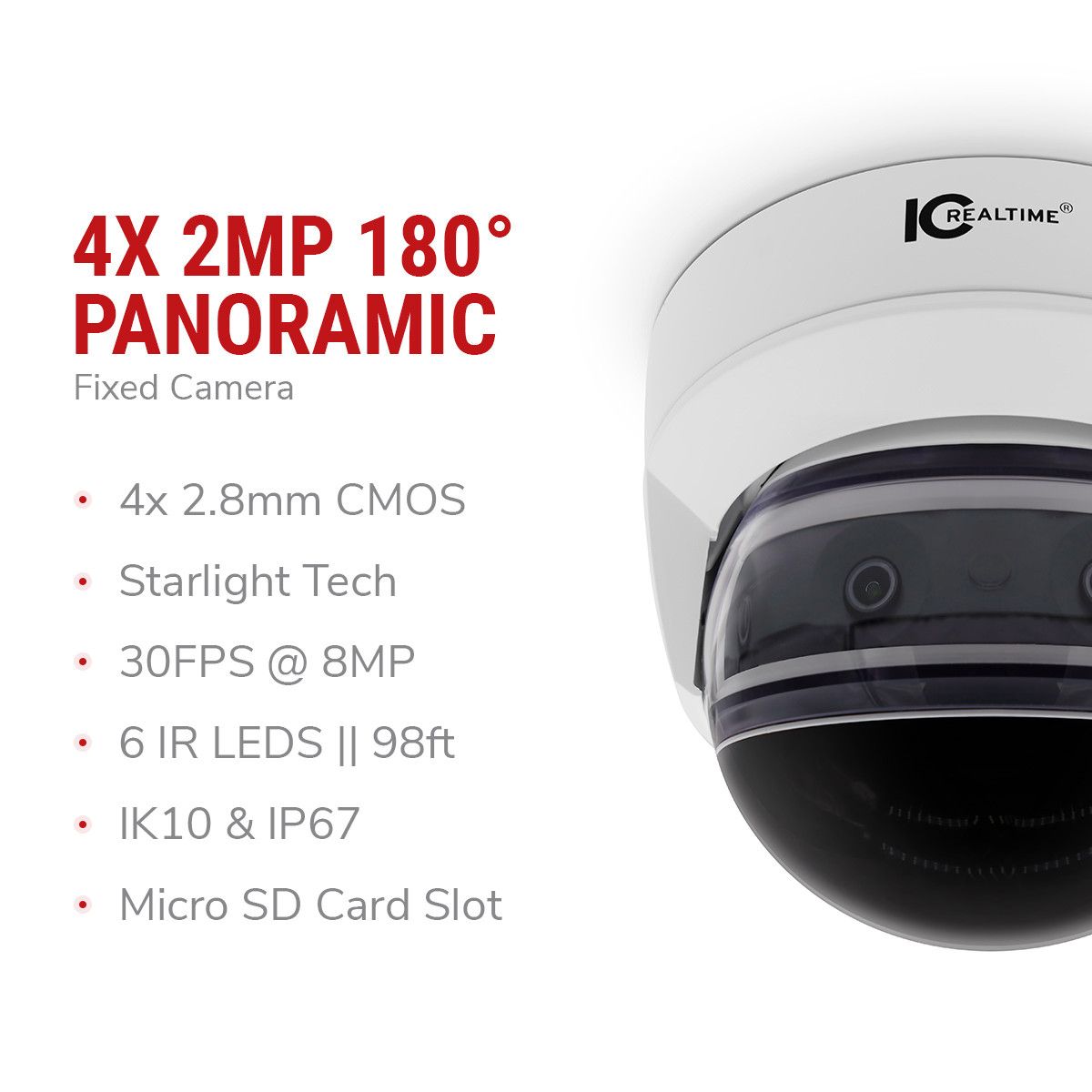

- Panoramic View: Capture a sweeping 180° view with four integrated 2MP sensors, significantly reducing the need for multiple cameras.
- Super Low Light Capability: Achieve vibrant color footage down to 0.005 Lux and detailed black and white down to 0.0005 Lux, ensuring reliable surveillance in low-light conditions.
- Wider Lens System: Each camera features a 2.8mm lens for smoother overlap and cleaner video stitching, enhancing overall video quality.
- Advanced AI Features: Integrates with FlexSmartAi technology for advanced intrusion detection, people counting, and traffic density mapping, providing enhanced security insights.
- Weather and Vandal Resistance: Built to last with IP67 water resistance and IK10 vandal resistance, making it suitable for tough environments.
- Flexible Power Options: Supports PoE and local power configurations, allowing for easier installation and integration with existing systems.
ICRealtime IPEL-M80F-IRW2 Detailed Specifications
| Camera Type | 4x2MP Multi-Lens Network IR Dome |
| Lens | 2.8mm |
| View Angle | 180° Panoramic |
| Low Light Performance | Color at 0.005 Lux; B/W at 0.0005 Lux |
| AI Features | Tripwire, Intrusion Detection, Crowd & Vehicle Density |
| Video Compression | H.264, H.265 |
| Power Requirements | PoE @ 14.9W or 12VDC / 24VAC options |
| Environmental Ratings | IP67, IK10 |
| Dimensions | Not Specified |
| Weight | Not Specified |
Built-in Functions
- Audio
- Auto Gain Control
- Day/Night
- Digital Noise Reduction
- Automatic White Balance
- Back Light Compensation
- Motion Detection Tracking
- Privacy Masking
- Wide Dynamic Range
- ONVIF
Specifications
| SKU | IPEL-M80F-IRW2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264B, H.264H, H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |
| Dimensions (W x H) | 169.5 mm × Φ212 mm (6.7" × Φ8.3") |
| Electronic Shutter | Auto/Manual, 1/3~1/100000s |
| Image Device | Four 1/2.8” 2 Megapixel progressive scan CMOS |

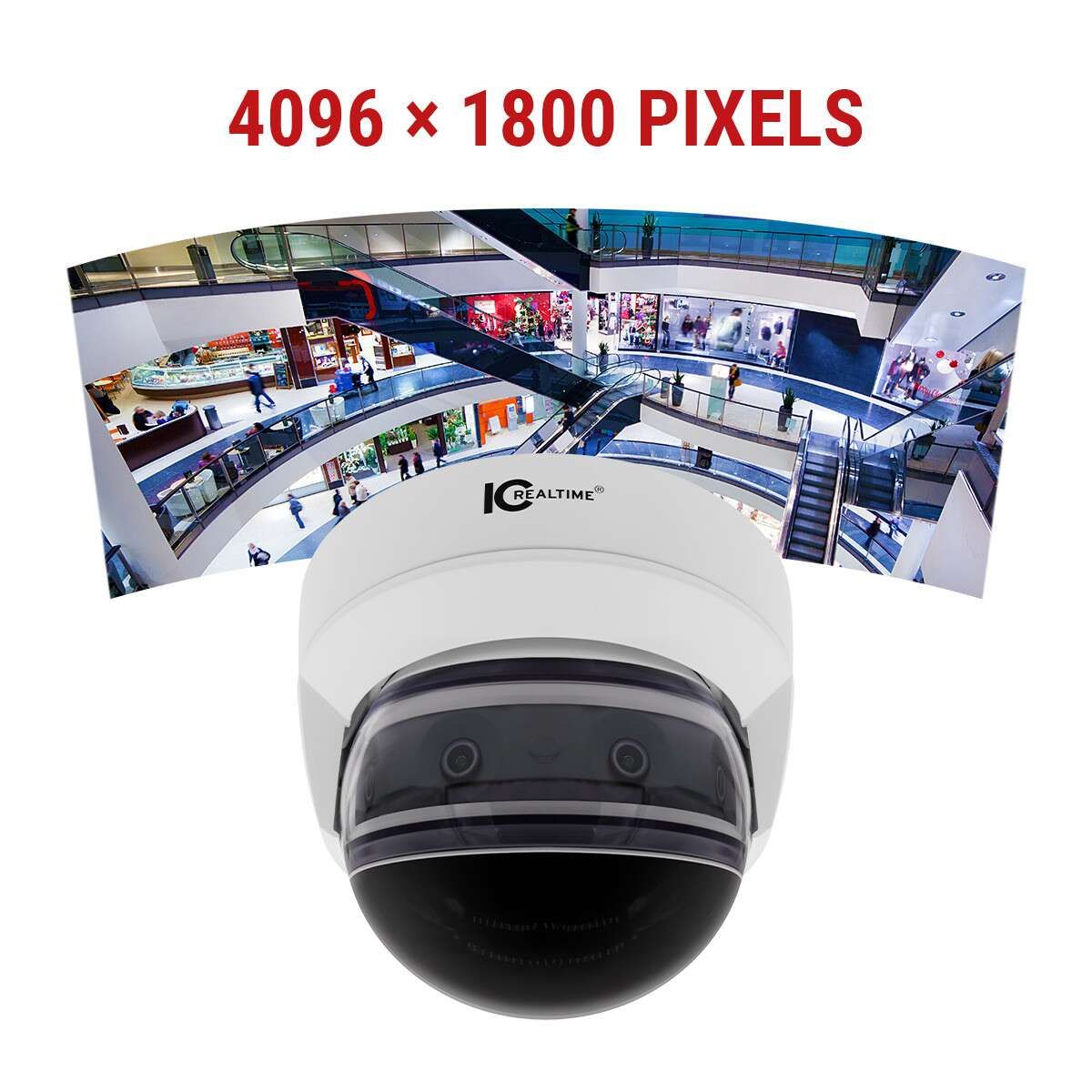

| Image Pixels-Effective | 4096(H)x1800(V) |
| IR LEDs | 6 |
| Minimum Scene Illumination | 0.005 [email protected] (Color,30IRE), 0.0005 [email protected] (B/W,30IRE), 0 Lux (Illuminator on) |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | -40° C ~ +60° C (-40° F ~ +140° F) |
| Power Consumption | Basic power consumption: 4.9W (12V DC); 6.4W(24V AC); 6.5W (PoE), Max. power consumption (AI + IR LED): 12.5W (12VDC); 14.3W(24V AC); 14.9W (PoE) |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| S/N Ratio | >56dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal :180°; Vertical 90° |
| Rotation Angle | Rotation:±20˚ |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / DWDR |
| Automatic White Balance | Auto/ Natural/ Street Lamp/ Outdoor/Manual |
| IR Distance | 30m/98ft |
