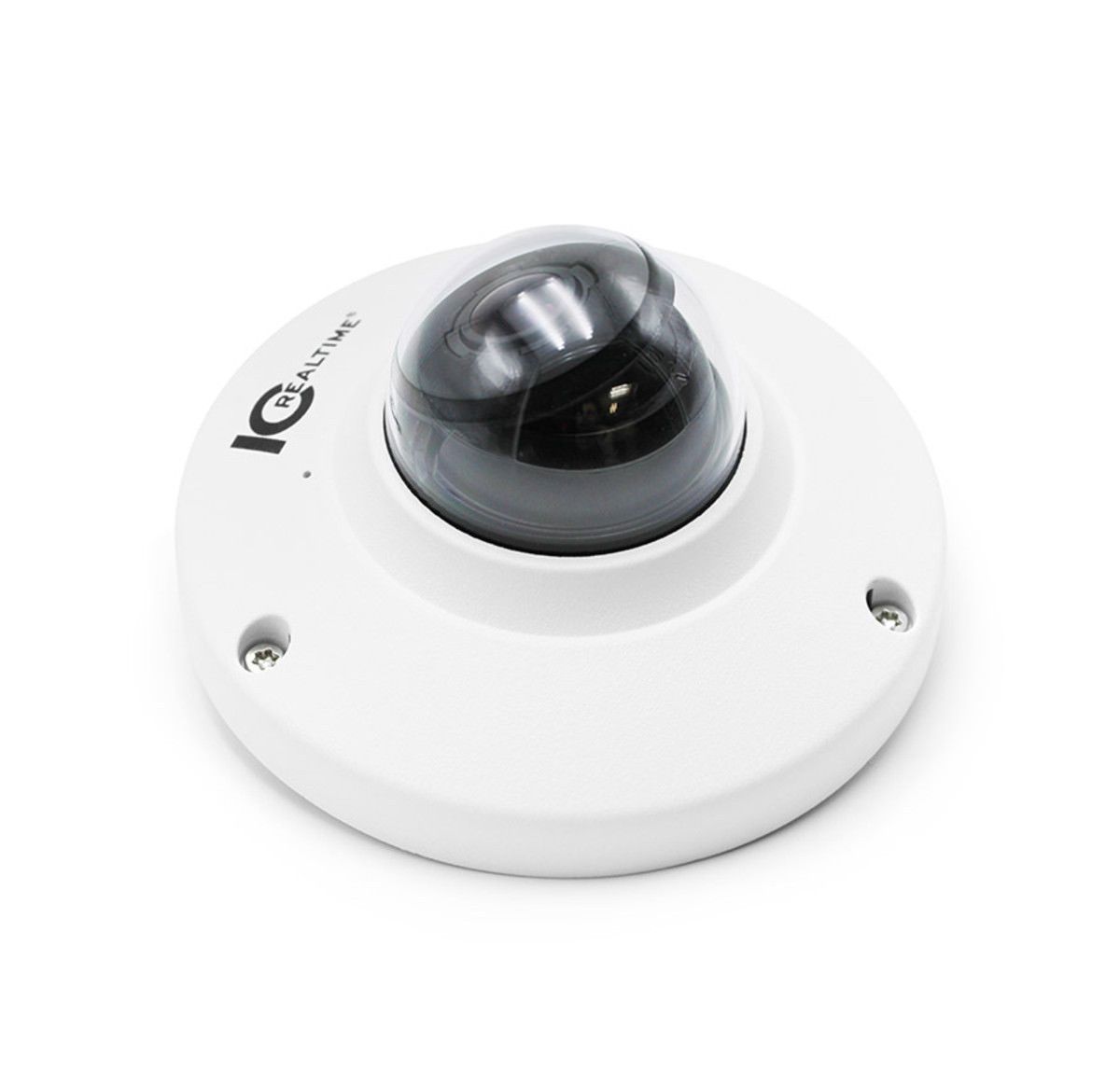

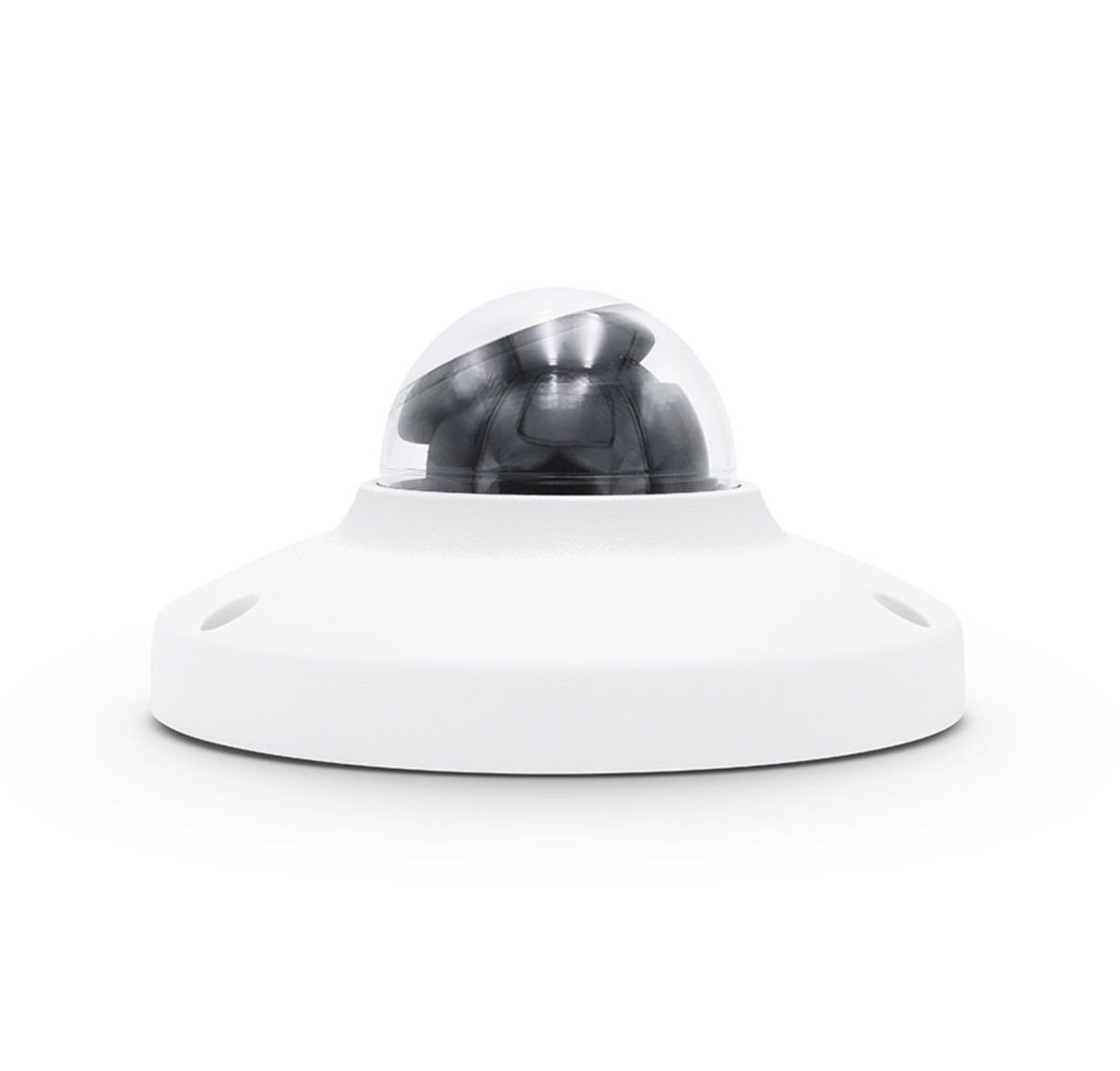

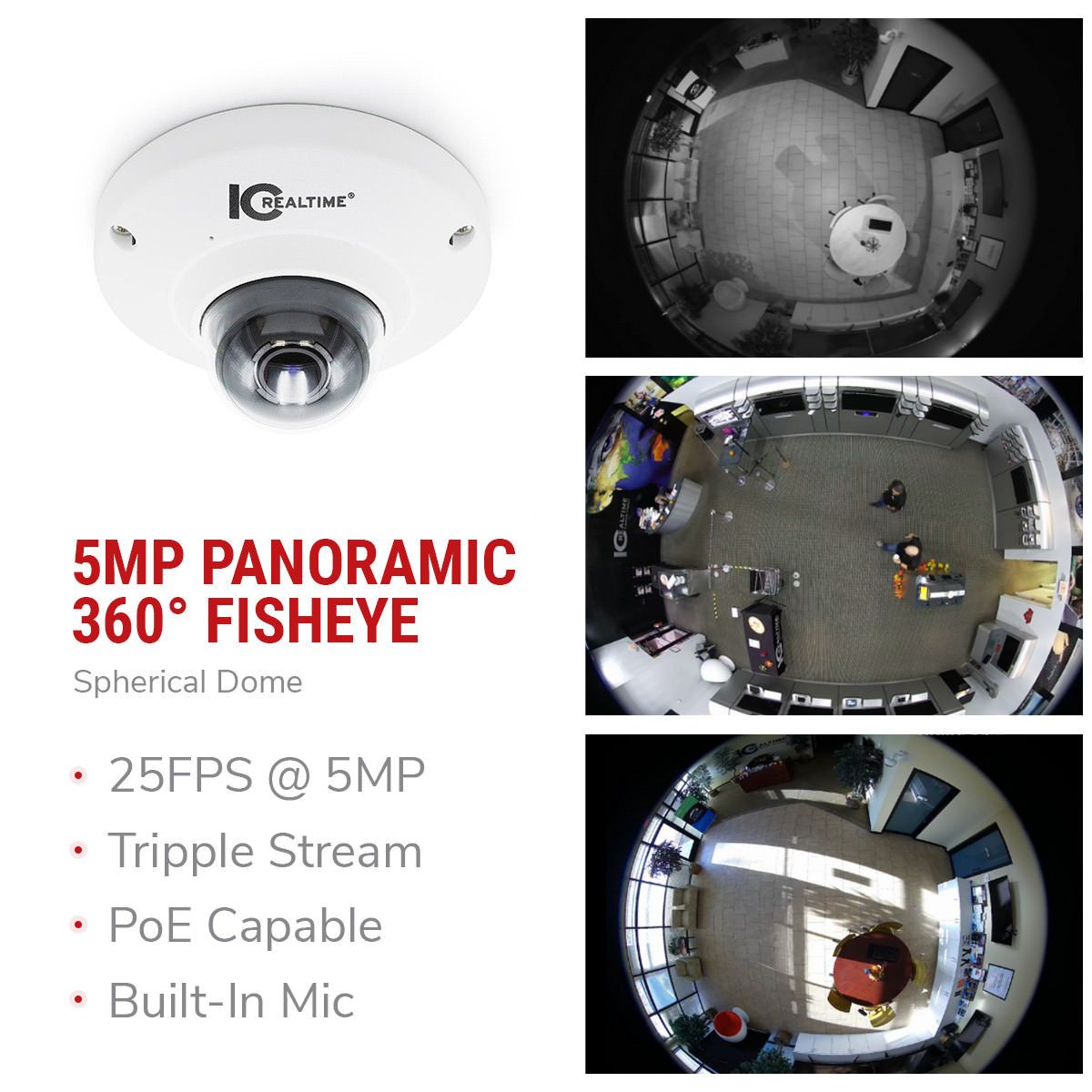

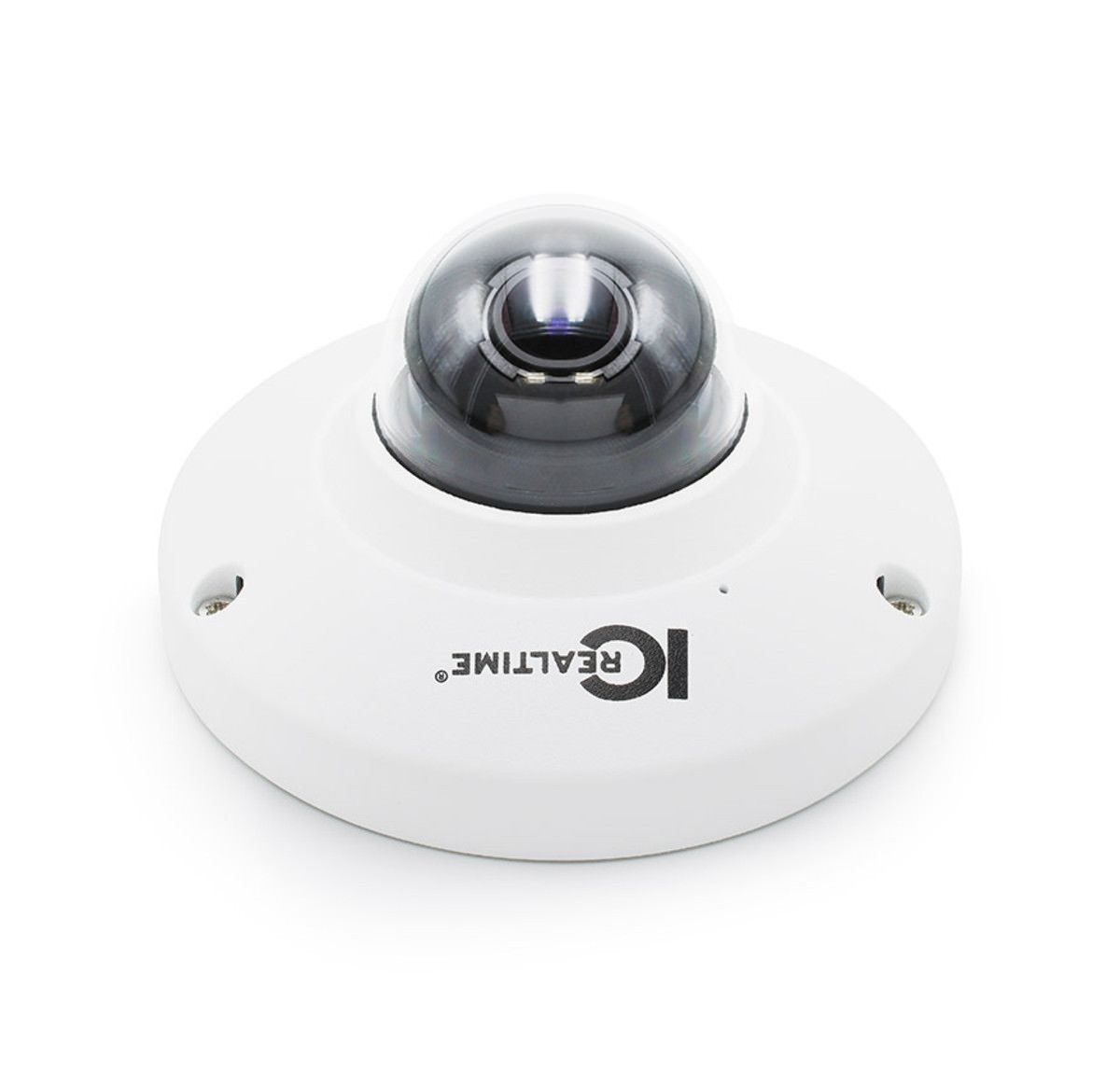

ICRealtime IPEL-F50F-W2 5MP Indoor/Outdoor 360° Spherical Dome Camera, 1.4mm Lens
SKU
IPEL-F50F-W2
Model No
IPEL-F50F-W2
$1,106.00
Product Highlights
- 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
- H.265/H.264 triple-stream encoding
- 5MP(2592 × 1944) @25/30 fps
- Multiple dewarp modes, Built-in Mic
- 120dB WDR, 3DNR, AWB, AGC, BLC
Speak to an expert
IC Realtime's IPEL-F50F-W2 is a versatile 5MP Indoor/Outdoor 360° Spherical Dome Camera designed for exceptional situational awareness. With its robust IP67 and IK10 rated housing, this camera ensures durability in various environments while delivering clear surveillance with a fixed 1.4mm lens. Its advanced features like H.265 encoding and intelligent video analytics make it perfect for both business and security applications, providing superior performance and value.
Features
ICRealtime IPEL-F50F-W2 Camera Features
- Dewarping Mode: Offers customizable dewarping options for correcting fisheye distortions, ensuring a clear and undistorted view of the surveillance area.
- Advanced Intelligence (Heatmap): Provides analytics through heat mapping to visualize activity levels, which supports data-driven decisions for businesses.
- Environmental: Operates within a -30 °C to +60 °C temperature range, designed for outdoor use with IP67 rating, integrated wiper, and IK08 compliance for impact resistance.
- HEVC(H.265): Utilizes advanced compression standards for improved video quality and efficiency, reducing bandwidth usage while maintaining high-definition outputs.
- Intelligent Video Analysis (IVS): Equipped with intelligence at the edge for smart detection and analysis of moving objects, enhancing operational effectiveness and monitoring capabilities.
- Protection (IP67, IK10, wide voltage): Built to withstand harsh environmental conditions, it is IP67 rated for dust and water protection and IK10 rated against vandalism, ensuring reliable operation.
ICRealtime IPEL-F50F-W2 Detailed Specifications
| Model | IPEL-F50F-W2 |
| Resolution | 5 Megapixels |
| Lens Type | Fixed 1.4mm Lens |
| Dewarpable Image | Yes, with multiple modes |
| Temperature Range | -30 °C to +60 °C (-22 °F to +140 °F) |
| Protection Ratings | IP67, IK10 |
| Video Encoding | H.265 |
| Intelligent Analytics | Yes, including IVS and Heatmap |
| Integrated Microphone | Yes |
| Power Input Tolerance | ±25% |
| Lightning Protection | 6KV rating |
SKU  | IPEL-F50F-W2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264B, H.264H, H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |
| Dimensions (W x H) | 62.0 mm × Φ110.0 mm (2.44" × Φ4.3") |
| Electronic Shutter | Auto/Manual, 1/3(4)~1/100000s |
| Image Device | 1/2.7” 5 Megapixel progressive scan CMOS |
| Image Pixels-Effective | 2592(H)x1944(V) |
| Minimum Scene Illumination | 0.006 [email protected] (Color, 30IRE), 0.0006 [email protected] (B/W, 30IRE), 0 Lux (Illuminator on) |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | -30°C to +55°C (–22°F to +131°F) |
| Power Consumption | Basic power consumption: 3.7W (12V DC); 4.7W (PoE) Max. power consumption (H.265 + intelligent function + WDR): 5.1W (12V DC); 6W (PoE) |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour ; 802.1x; Multicast; ICMP; IGMP; SNMP |
| S/N Ratio | More than 50dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | H: 180˚, V:180˚ |
| Rotation Angle | Rotation: 0°–360° |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / 120dB WDR |
| Automatic White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
