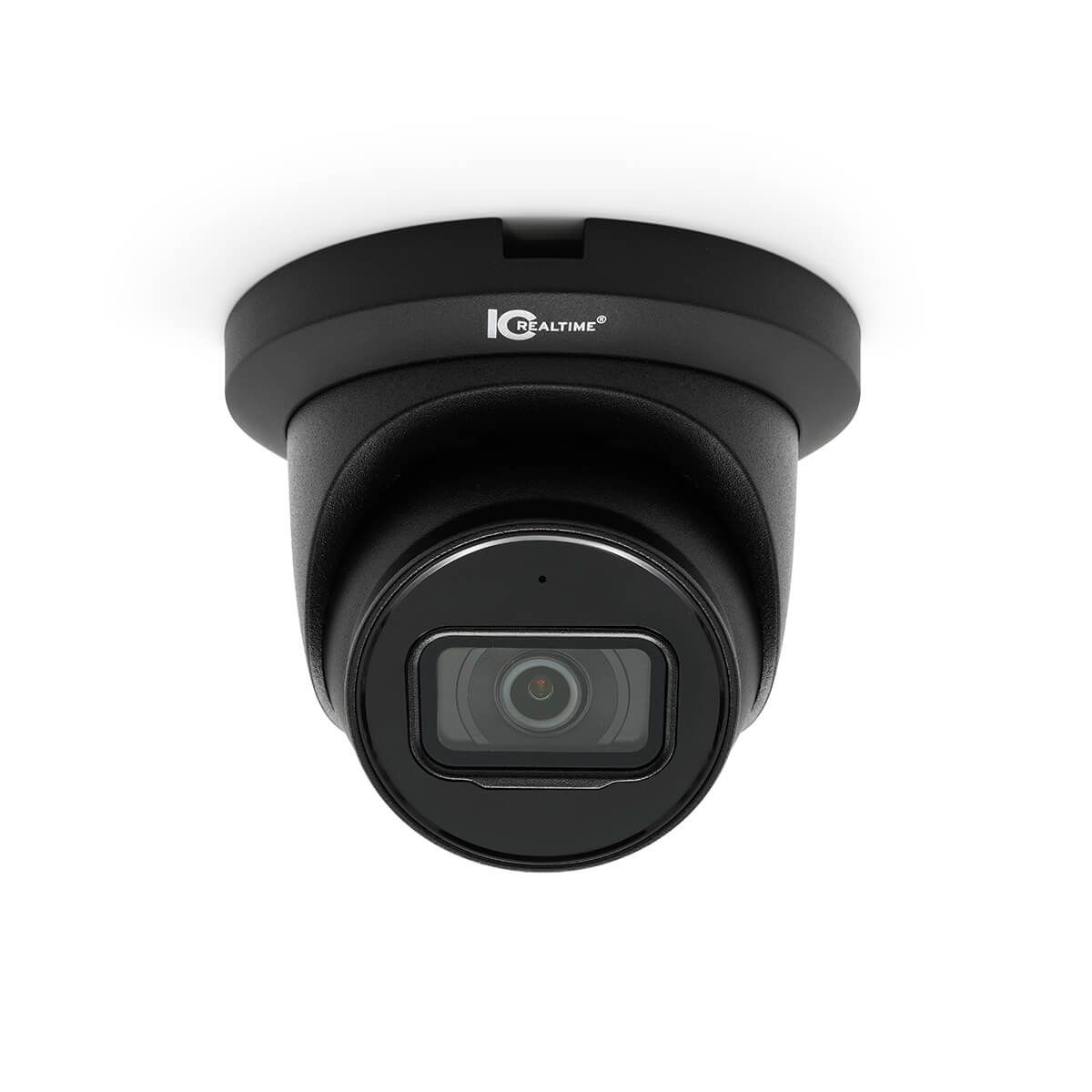

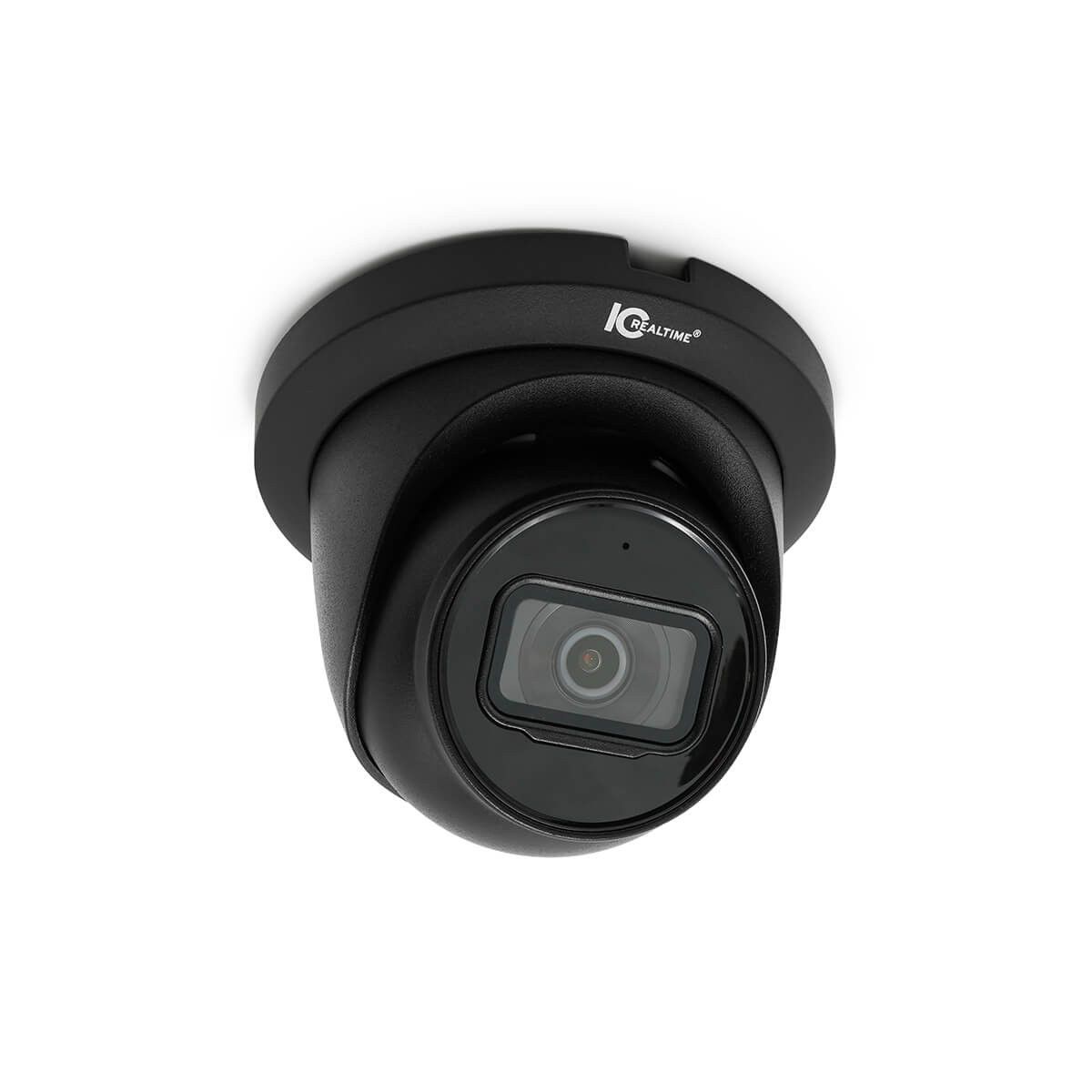

ICRealtime IPEL-E80F-IRB2 8 Megapixel IP Indoor/Outdoor IR Eyeball Dome Camera with 2.8mm Lens, Black
SKU
IPEL-E80F-IRB2
Model No
IPEL-E80F-IRB2
$920.00
Product Highlights
- 1/2.8 CMOS Starvis | 8MP | 25/30fps@4K
- 2.8mm | Fixed | AoV 108
- Max. IR Length 98ft | Smart IR | 1 IR LEDs
- Built-In Mic | 256GB MSD |IP67 | 12VDC Or PoE
- IVS | Perimeter Protection | Intelligent Motion Detect
Speak to an expert
The ICRealtime IPEL-E80F-IRB2 is an advanced 8 Megapixel IP Eyeball Dome Camera designed for both indoor and outdoor use. Featuring a high-quality Starlight supported 2.8mm fixed lens, this camera excels in delivering clear and detailed images even in low light conditions. With its impressive 3840 x 2160 resolution at 30 frames per second and built-in AI capabilities, users can enjoy optimized video storage, enhanced motion detection, and added security features, making it an ideal choice for robust surveillance solutions.
ICRealtime IPEL-E80F-IRB2 Camera Features
- High Resolution: 8MP (3840 × 2160) @30 fps for superior image clarity.
- AI Capabilities: Advanced Intelligent Motion Detection and Perimeter Protection reduce false alerts.

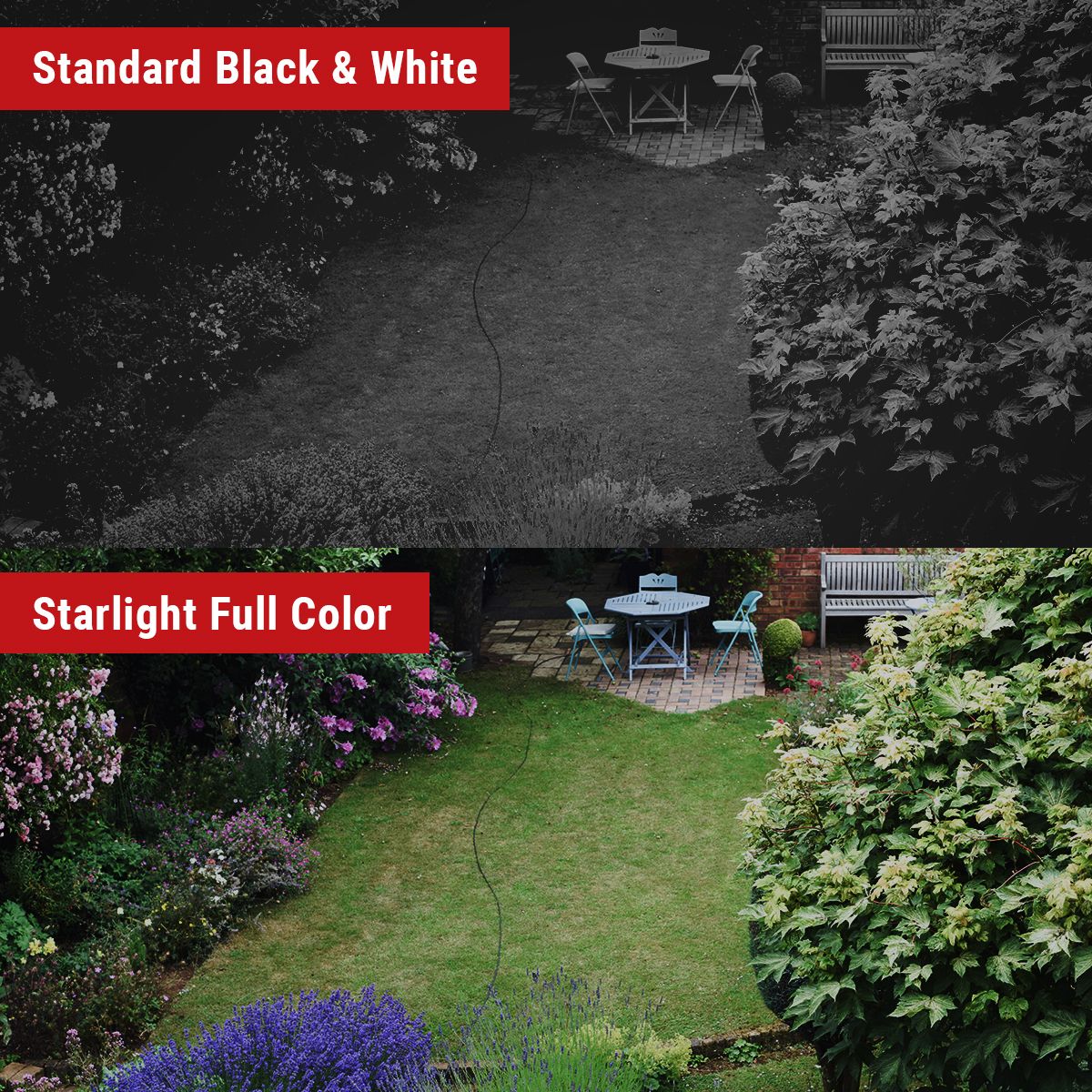

- Starlight Technology: Ensures clear images in low light conditions, enhancing visibility.
- Flexible Storage: Supports up to 256GB Micro SD storage for convenient local recording.
- IR Night Vision: Max IR distance of 98 feet enables effective monitoring in complete darkness.
- Robust Design: IP67 rating ensures durability against environmental elements.
- Easy Power Options: Supports 12VDC or PoE (Power over Ethernet) for versatile installation.
Detailed Specifications for ICRealtime IPEL-E80F-IRB2
| Camera Type | 8 Megapixel IP Eyeball Dome |
| Resolution | 3840 × 2160 (8MP) |
| Frame Rate | 30 fps |
| Lens | 2.8mm Fixed Lens |
| Field of View | 108 degrees |
| IR Distance | Maximum 98 feet |
| Storage Capacity | Supports 256GB Micro SD |
| Material | Black Housing |
| AI Features | Intelligent Motion Detect, Perimeter Protection |
| Certifications | Made in South Korea, TAA compliant |
| Power Supply | 12VDC or PoE |
| IR Technology | Smart IR with 1 IR LED |
SKU  | IPEL-E80F-IRB2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |

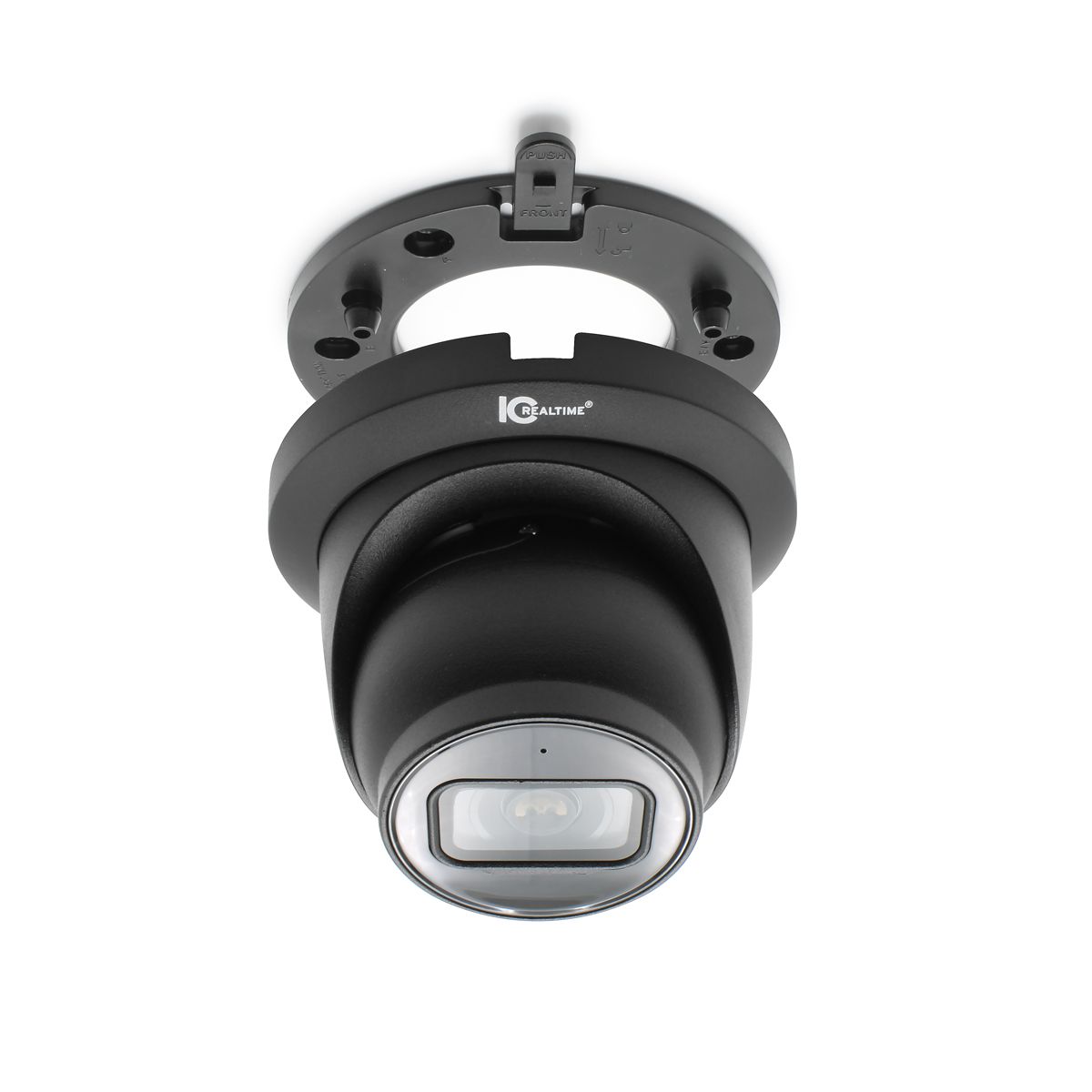

| Mount Type | Ceiling, Wall |
| Compression Method | H.264B, H.264H, H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

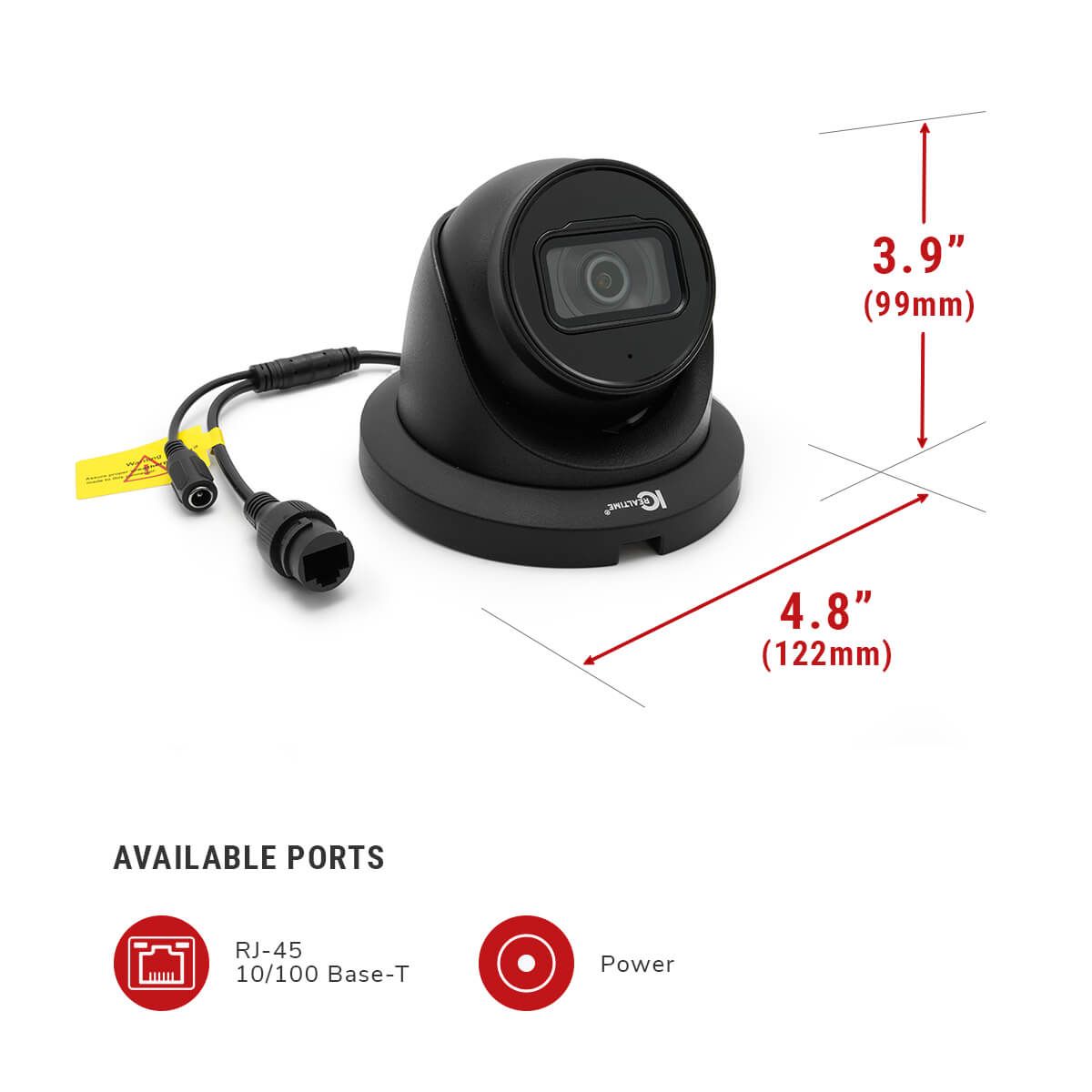

| Dimensions (W x H) | 4.17in x 3.69in (106mm x 93.7mm) |
| Image Device | 1/2.8”8 Megapixel progressive CMOS |
| Image Pixels-Effective | 3840(H) x 2160(V) |
| IR LEDs | 2 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | 0.007 Lux @F1.4 |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | –40°F to +140°F (–40°C to +60°C) |
| Power Consumption | Basic power consumption: 2.6W (12V DC); 3.3W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 6.9W (12V DC); 7.9W (PoE) |
| Privacy Zone | Off / On (4 Area Rectangle) |
| Protocols | Pv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| S/N Ratio | >56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | H: 108 degrees V: 58 degrees |
| Motion Detection Tracking | Off / On (4 Zones Rectangular) |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Automatic White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
