ICRealtime IPEL-D30V-IRW1 3 Megapixel WDR IR Dome Network Camera, 2.7-13.5mm Lens
SKU
IPEL-D30V-IRW1
Model No
IPEL-D30V-IRW1
$1,020.00
Product Highlights
- 1/2.8” 3 Megapixel progressive scan STARVIS™ CMOS
- H.265 & H.264 triple-stream encoding
- 50/60fps@3M (2048 × 1536)
- Up to 128GB
- 2.7mm ~13.5mm zoom lens
Speak to an expert
The IPEL-D30V-IRW1 from ICRealtime is a 3 Megapixel WDR IR Dome Network Camera with a versatile 2.7-13.5mm Lens, designed to deliver exceptional image quality even in low light conditions. Equipped with an advanced iSniper Gen2 series image sensor, this camera ensures vibrant colors and sharp images. Perfect for both indoor and outdoor surveillance, its robust build and motorized lens allow for customizable viewing angles, making it an ideal choice for comprehensive security monitoring.
ICRealtime IPEL-D30V-IRW1 Camera Features
- High-Resolution Imaging: 1/2.8″ 3 Megapixel progressive scan STARVIS™ CMOS sensor offers superior image clarity and detail.
- Efficient Encoding: H.265 & H.264 triple-stream encoding optimizes bandwidth without compromising video quality.
- High Frame Rate: 50/60fps at 3M (2048-1536) for smooth, real-time video playback.
- Wide Dynamic Range: WDR (140dB) enhances visibility in scenes with extreme lighting contrasts.
- IR Night Vision: Max IR LED range of 50m ensures clear visibility even in complete darkness.
- Weather and Vandal Resistance: IP67 and IK10 ratings provide protection against environmental factors and tampering.
- Expandable Storage: Supports Micro SD card slot with up to 128GB storage for local recording.
- Motorized Zoom Lens: 2.7mm ~13.5mm lens allows for adjustable focal length and a wide horizontal Field of View (28-99 degrees).
ICRealtime IPEL-D30V-IRW1 Detailed Specifications
| Camera Sensor | 1/2.8″ 3 Megapixel progressive scan STARVIS™ CMOS |
| Video Compression | H.265 & H.264 triple-stream encoding |
| Maximum Resolution | 2048-1536 |
| Frame Rate | 50/60fps at 3M |
| WDR Capability | 140dB Wide Dynamic Range |
| Low Light Performance | Max IR LED Length of 50m |
| Environmental Rating | IP67 (weatherproof), IK10 (vandal-resistant) |
| Storage Capacity | Up to 128GB via Micro SD card slot |
| Lens Type | Motorized 2.7mm ~13.5mm zoom |
SKU  | IPEL-D30V-IRW1 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

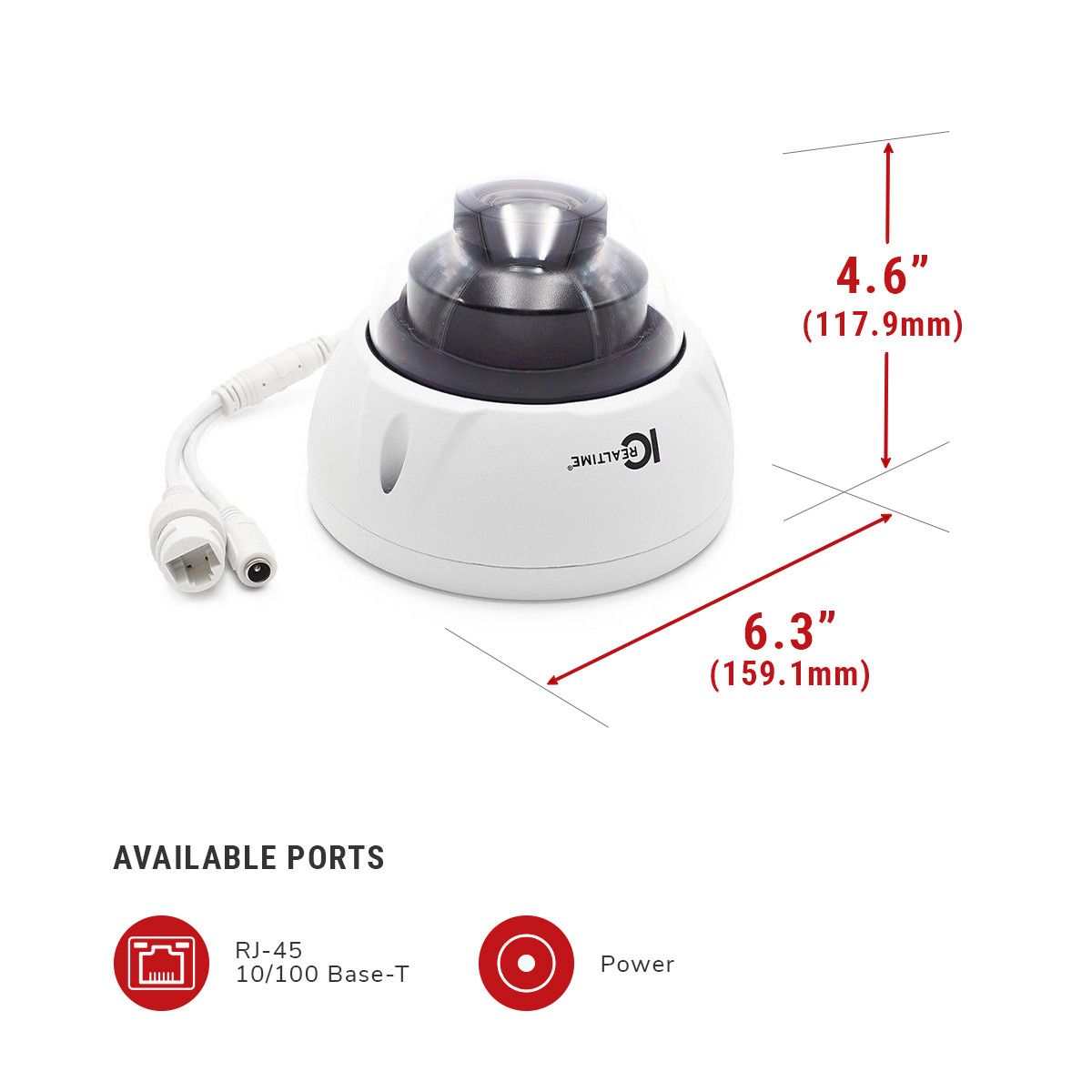

| Dimensions (W x H) | 159.1mm×117.9mm (6.26”×4.64”) |
| Electronic Shutter | Auto/Manual, 1/3~1/100000s |
| Image Device | 1/2.8” 3 Megapixel progressive scan CMOS |
| Image Pixels-Effective | 2048 (H) x 1536 (V) |
| IR LEDs | 3 |
| Minimum Scene Illumination | 0.005Lux/F1.4 (Color,1/3s,30IRE), 0.03Lux/F1.4 (Color,1/30s,30IRE), 0Lux/F1.4 (IR on) |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | -40° C ~ +60° C (-40° F ~ +140° F) |
| Power Consumption | <18W |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| S/N Ratio | More than 50dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | H: 99˚~28˚, V: 67˚ ~21˚ |
| Rotation Angle | 0° ~355° |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / DWDR |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 50m/164ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
