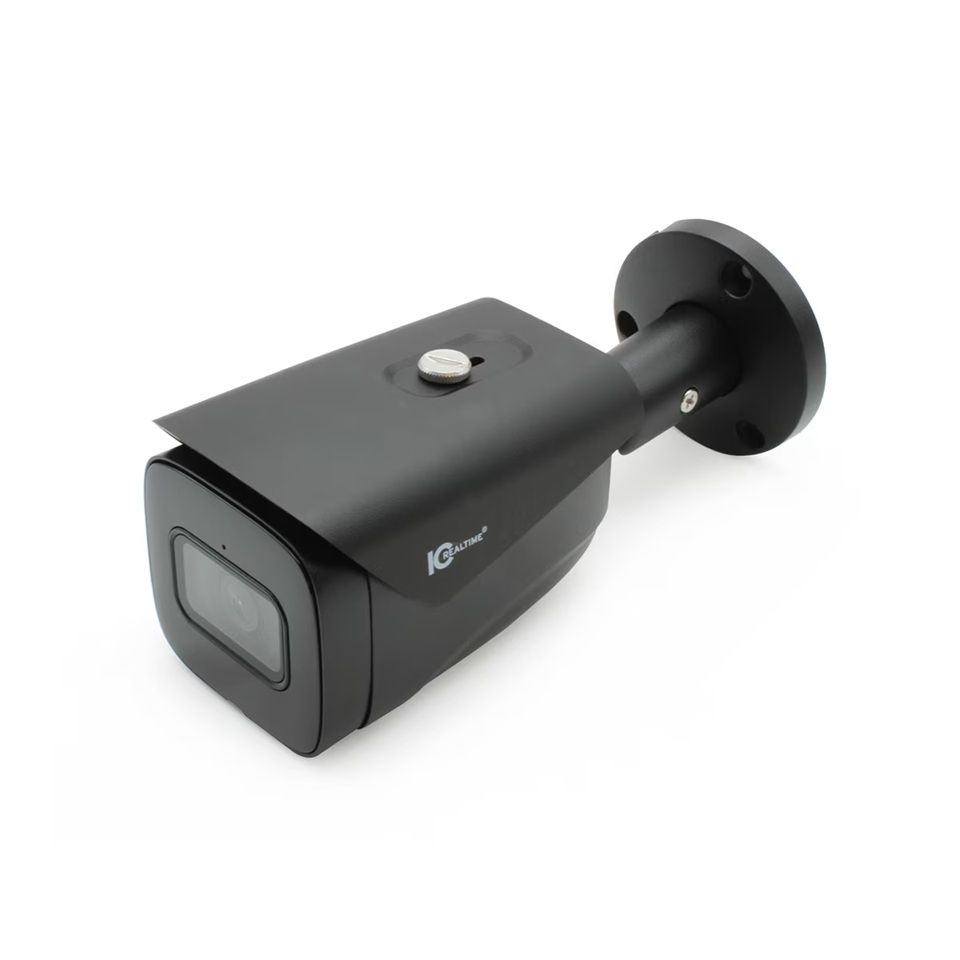

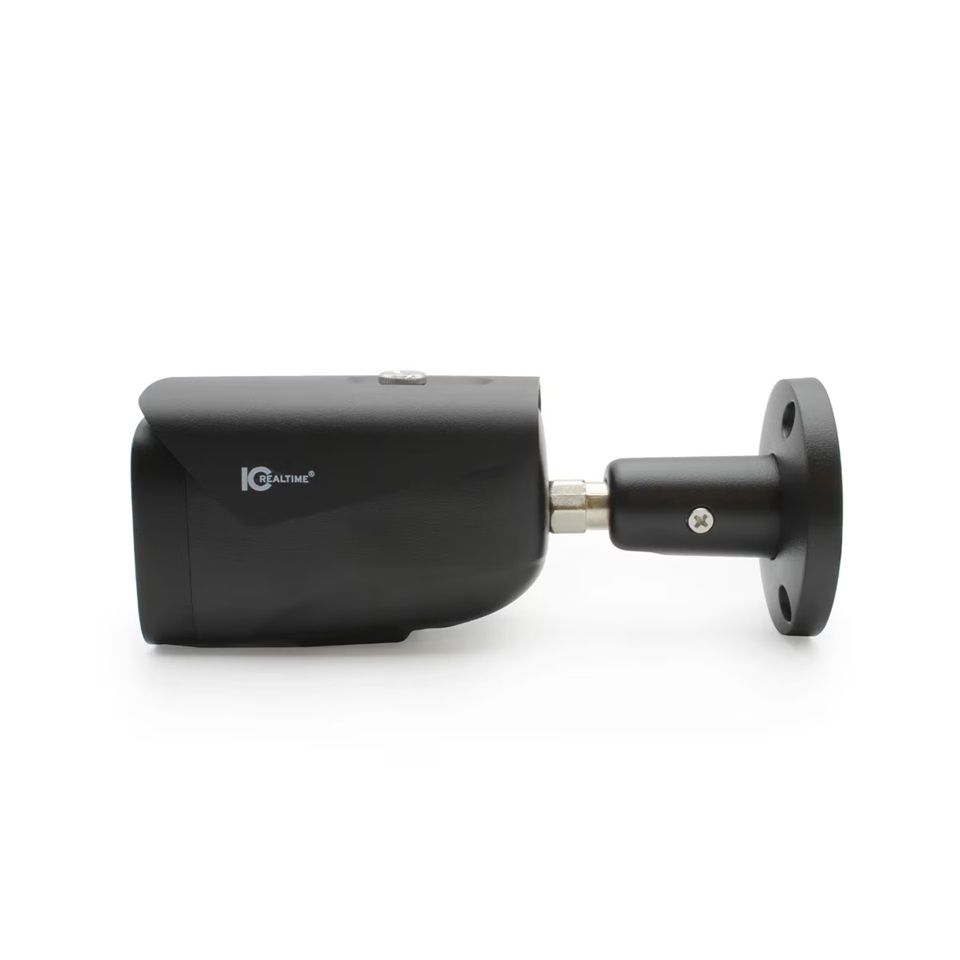

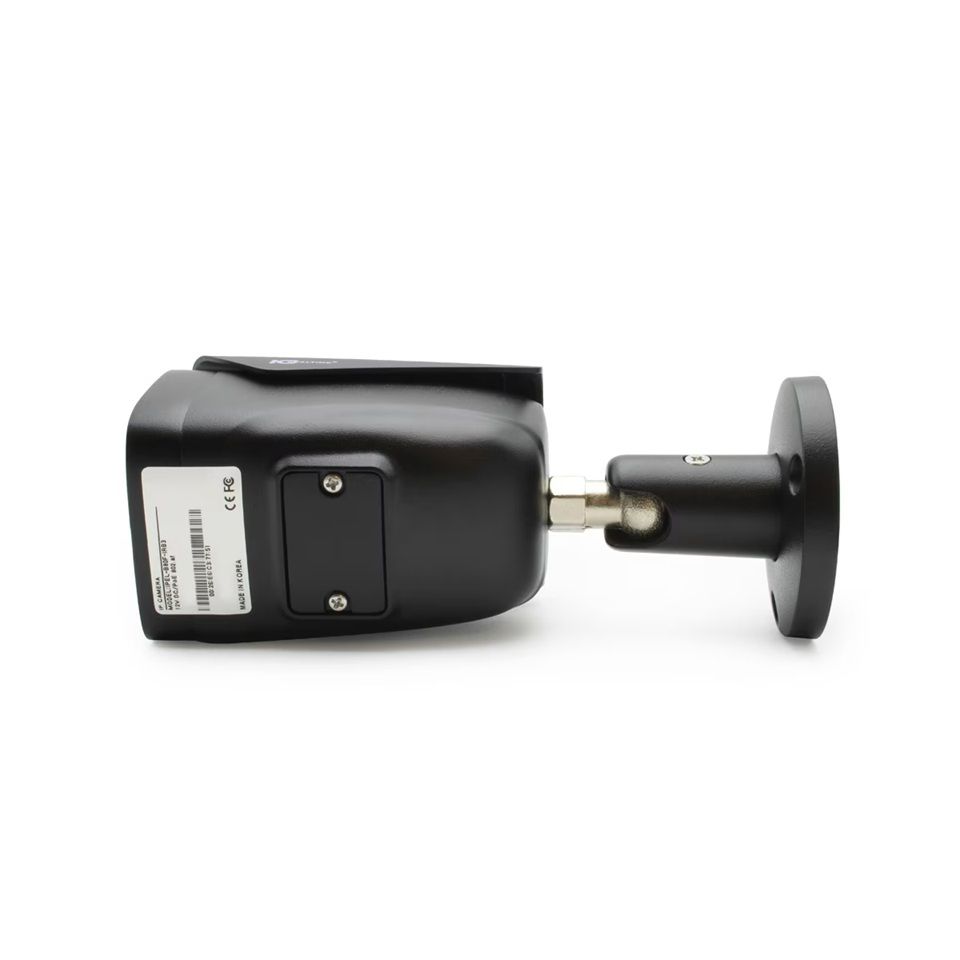

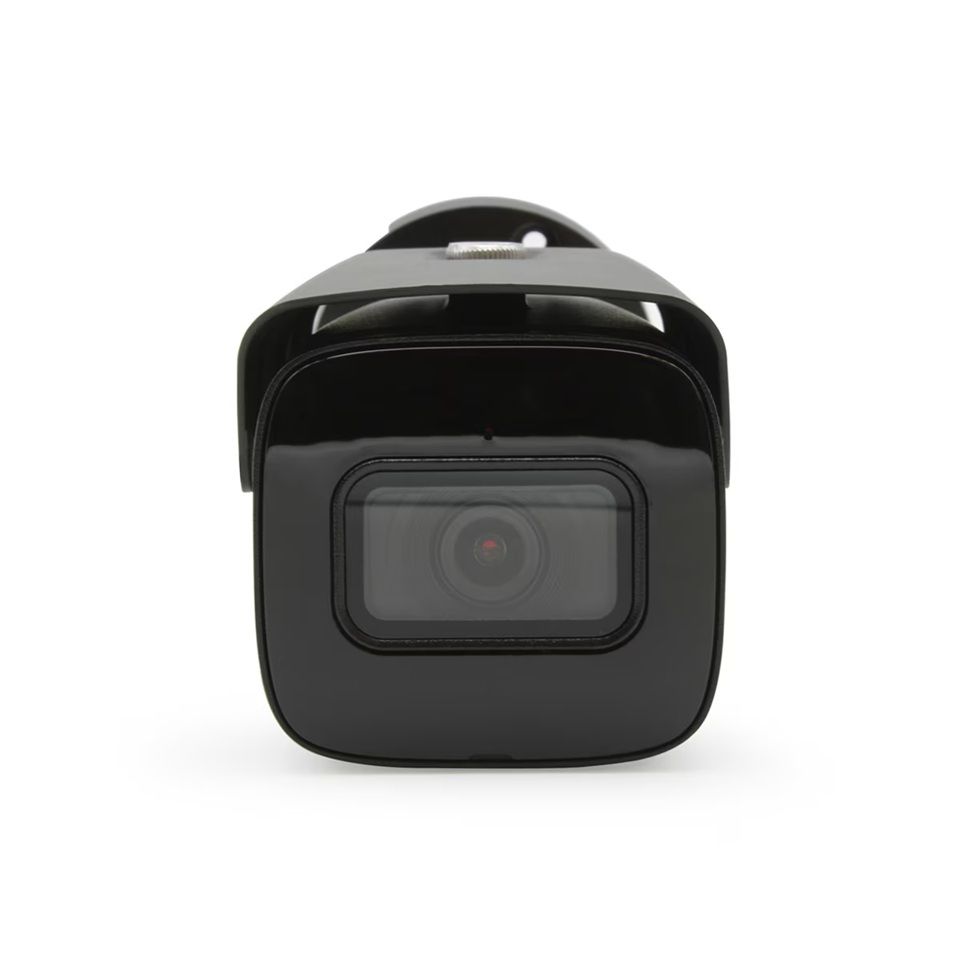

ICRealtime IPEL-B80F-IRB3 8 Megapixel 4K Network IP Bullet Camera with 2.8mm Lens
SKU
IPEL-B80F-IRB3
Model No
IPEL-B80F-IRB3
$458.00
Product Highlights
- 8MP, 1/2.8” CMOS image sensor | Low illuminance, high image definition
- H.265 & H.264 triple-steam encoding
- Outputs max. 8MP (3840 × 2160) @25/30 fps
- Intelligent Motion Detect 2.0 | Perimeter Protection
- Starlight support | Max. IR LEDs Length 98 ft
Speak to an expert
Introducing the ICRealtime IPEL-B80F-IRB3, a high-performance 8 Megapixel 4K Network IP Bullet Camera designed to deliver exceptional video clarity and advanced security capabilities. With its powerful 2.8mm lens and innovative features, this camera provides reliable surveillance in various lighting conditions, ensuring you never miss a detail in your monitoring needs.
ICRealtime IPEL-B80F-IRB3 Camera Highlights
- High Resolution: 8MP, 1/2.8” CMOS image sensor ensures low illuminance and high image definition for crystal-clear visuals.
- Efficient Encoding: H.265 & H.264 triple-stream encoding allows for optimized bandwidth usage and storage, enhancing video quality without sacrificing performance.
- Smooth Video Output: Outputs maximum 8MP (3840 × 2160) at 25/30 fps for real-time monitoring and smooth playback.
- Advanced Motion Detection: Intelligent Motion Detect 2.0 and Perimeter Protection features help reduce false alarms and improve security response times.
- Excellent Low Light Performance: Starlight support with a maximum IR LEDs length of 98 ft ensures reliable nighttime surveillance.
ICRealtime IPEL-B80F-IRB3 Detailed Specifications
| Specification | Detail |
|---|---|
| Camera Type | IP Bullet Camera |
| Resolution | 8 Megapixels (3840 × 2160) |
| Lens | 2.8mm |
| Image Sensor | 1/2.8” CMOS |
| Video Encoding | H.265 & H.264 triple-stream |
| Frame Rate | 25/30 fps |
| Night Vision | Starlight support with 98 ft IR range |
| Motion Detection | Intelligent Motion Detect 2.0 |
| Protection Features | Perimeter Protection |
SKU  | IPEL-B80F-IRB3 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264B, H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

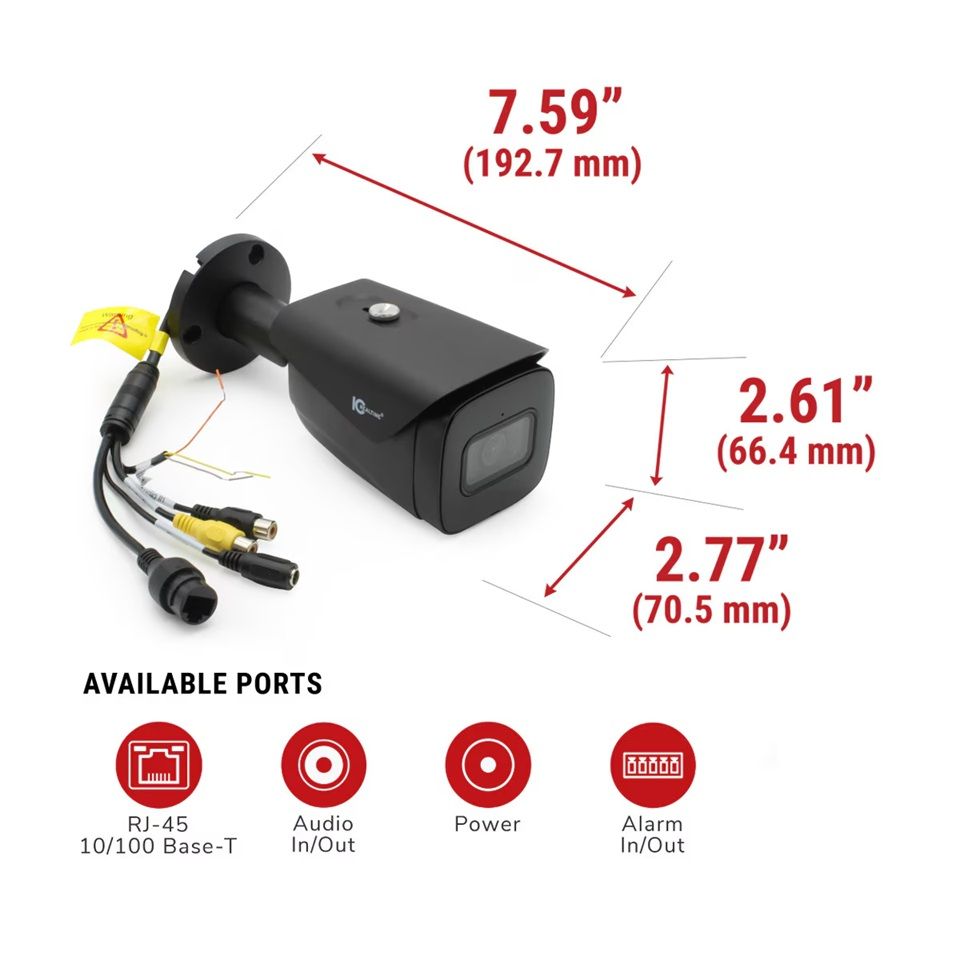

| Dimensions (W x H) | 7.59" × 2.77" × 2.61 (L × W × H)(192.7 mm × 70.5 mm × 66.4 mm) |
| Image Device | 1/2.8” 8 Megapixel progressive CMOS |
| Image Pixels-Effective | 3840 (H) × 2160 (V) |
| IR LEDs | 1 |
| Power Consumption | Basic: 3.8 W (12 VDC); 4.6 W (PoE)Max: (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE) |
| Protocols | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Scanning System | Progressive |

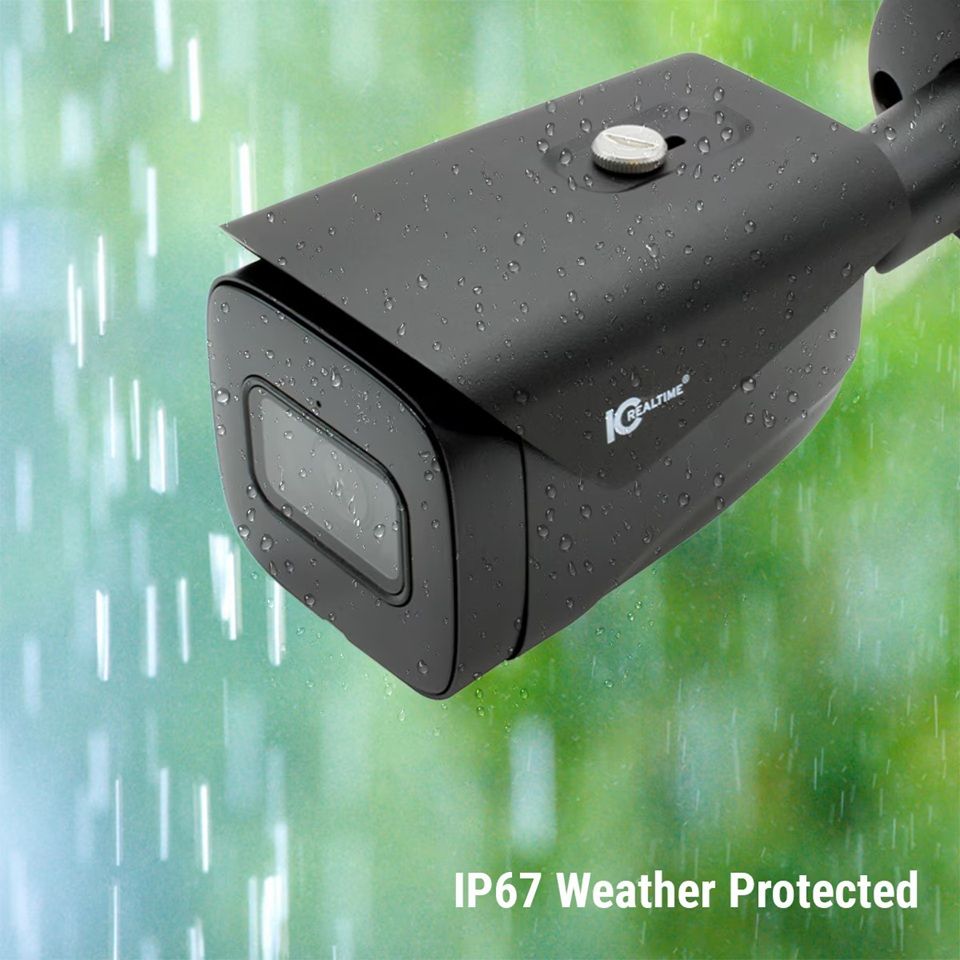

| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal:107°; vertical: 56° |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
