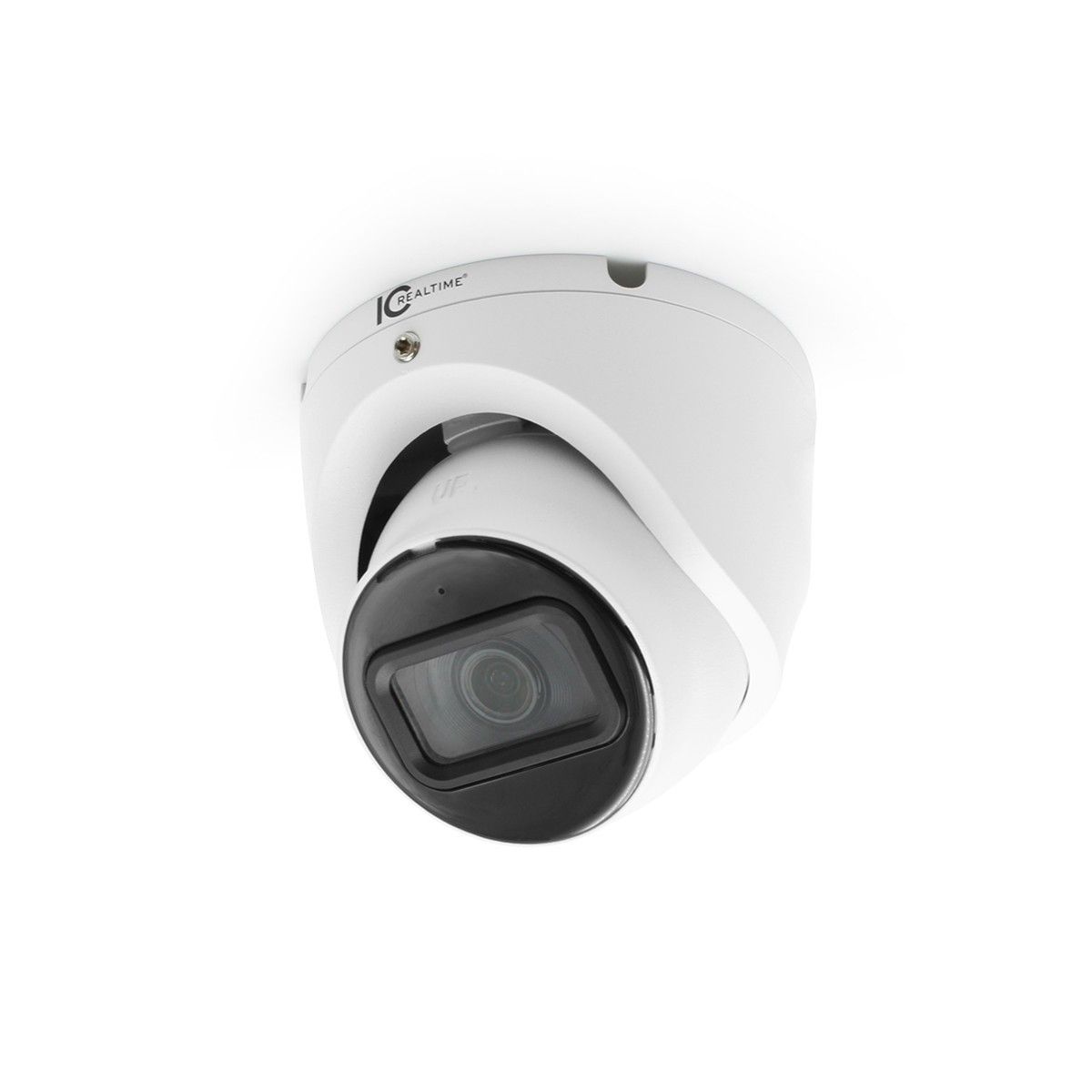

ICRealtime IPEG-E40F-IRW2 4 Megapixel Network IR Outdoor Dome Camera with 2.8mm Lens
SKU
IPEG-E40F-IRW2
Model No
IPEG-E40F-IRW2
$170.28
Product Highlights
- 4MP 1/3" CMOS image sensor Low luminance, and high definition image.
- H.265 & H.264 dual-stream encoding
- Outputs 4MP @1 "œ25/30 fps
- DWDR 3D DNR HLC BLC
- 2.8 mm fixed lens Max. IR LEDs Length 98ft
Speak to an expert
IC Realtime's IPEG-E40F-IRW2 4 Megapixel Network IR Outdoor Dome Camera offers unbeatable value with its high-definition performance, advanced cybersecurity features, and exceptional weatherproof design. Designed for easy installation and superior functionality, this camera ensures reliable surveillance with sharp imaging both day and night, making it ideal for various environments.
IC Realtime IPEG-E40F-IRW2 Camera Features
- 4MP Resolution: Ensures clear and detailed imaging with a pixel density of 2688 × 1520 for superior stream quality.
- Enhanced Low-light Performance: Captures color images down to 0.03 Lux for effective 24/7 surveillance.
- SmartIR Night Vision: Provides up to 98 feet of sharp grayscale imaging in complete darkness to ensure continuous monitoring.
- Smart H.265+ Encoding: Reduces bandwidth usage by up to 70%, allowing for efficient storage and stream management.
- Vandal-Resistant and Weatherproof: IP67 rating ensures durability under harsh conditions, operating from -40°F to +140°F.
- Installer-Friendly Accessories: Comes with convenient mounting options for easy installation in various settings.
IC Realtime IPEG-E40F-IRW2 Detailed Specifications
| Image Sensor | 4MP 1/3" CMOS |
| Encoding | H.265 & H.264 Dual-Stream |
| Frame Rate | Outputs 4MP @1–25/30 fps |
| Lens | 2.8 mm Fixed Lens |
| IR LED Distance | Max. Length 98ft |
| Weather Rating | IP67 |
| Power over Ethernet (PoE) | Yes |
| Country of Manufacture | South Korea |
SKU  | IPEG-E40F-IRW2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264B, H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Automatic Gain Control (AGC) | Auto / Manual |
| Dimensions (W x H) | 3.37" × Φ3.70" (85.6 mm × Φ94.0 mm) |
| Image Device | 1/3" 4 Megapixel progressive CMOS |
| Image Pixels-Effective | 2560 (H) × 1440 (V) |
| IR LEDs | 1 |
| Minimum Scene Illumination | 0.03 [email protected] (Color,30 IRE) 0.003 [email protected] (B/W,30 IRE) 0 lux (Illuminator on) |
| Operating Humidity | Less than ≤ 95% RH |
| Operating Temperature | -40°F ~ +140°F (-40°C ~ +60°C) |
| Power Consumption | Basic: 1.6 W (12 VDC); 2.4 W (PoE) Max. (ICR + H.265+IR intensity): 3.6 W (12 VDC); 4.7 W (PoE) |
| Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP;FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | H: 90°; V: 50° |
| Rotation Angle | Pan: 0°–355°Tilt: 0°–78°Rotation: 0°–355° |
| Back Light Compensation | BLC / HLC / DWDR |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
