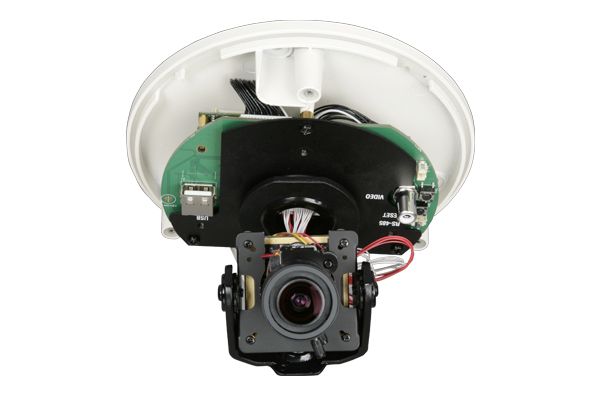

Ikegami IPD-DM11-31 Hyper Wide Light Dynamic IP Network Dome Camera, 2.8-10mm

SKU
IPD-DM11-31
Model No
IPD-DM11-31
$492.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" DPS CMOS sensor
  • Wide Dynamic Range
  • True Day/Night

The IPD-DM11-31 from Ikegami is a hyper wide light dynamic IP network dome camera, 2.8-10mm. The IPD-DM11-31 combines the benefits of an IP network camera with our Hyper Wide Dynamic technology. The resulting sub-megapixel camera captures more useful information from a given scene than megapixel cameras with much greater bandwidth requirements. IP network cameras produce images previously unimaginable with analog cameras and allow for modern low-voltage integration at an unprecedented level. If there is one “Achilles heel” to traditional IP technology, it would be the challenge of uneven illumination (i.e. window areas, lobby entrances of buildings, or any location where intense bright and dark areas coincide). With the IPD-DM11 images are clear and natural, regardless of lighting conditions. The sub-megapixel camera delivers a perfect balance of resolution and bandwidth usage for video surveillance.

Features

Ikegami IPD-DM11-31 Engineered Dome Camera

  • Engineered Dome Camera: With its elegant low-profile design, the IPD-DM11-31 seamlessly blends into various architectural settings while providing robust surveillance capabilities.
  • More Usable Pixels: This camera captures more usable pixels in low-light conditions, ensuring efficient bandwidth use and eliminating the transmission of unwanted data.
  • IP Network Camera: Equipped with H.264/M-JPEG support and Power over Ethernet (PoE), it integrates effortlessly into existing networks, providing flexibility in placement.
  • High-quality Picture: The advanced Digital Signal Processor guarantees high signal-to-noise ratios for crisp images with minimal noise, enhancing overall image quality.
  • Scene File Function and Field Setup: Features an internal menu with 4 preset scene files and an analog BNC service port for easier configuration, eliminating the need for network access during setup.

Ikegami IPD-DM11-31 Detailed Specifications

Camera TypeIP Network Dome Camera
LensVarifocal 2.8-10mm
CompressionH.264/M-JPEG
PowerPower over Ethernet (PoE)
Image ProcessingDigital Signal Processor
Field of ViewWide Dynamic Range for low-light environments
Additional FeaturesONVIF compliant, 4 preset scene files, analog BNC service port
SKU  IPD-DM11-31
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    520 TVL
Lens Type    Varifocal
Lens Size    2.8-10mm
Mount Type  Wall
Compression Method    H.264, M-JPEG
Durability    Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    ON(AGC/HYPER-AGC) / OFF(LOW/MID/HIGH) selectable
Dimensions (W x H)  ∅148 x H120mm[φ5.83 x H4.72inches] (without projection)
Image Device    1/3" DPS CMOS sensor
Minimum Scene Illumination  In color mode: Electronic Sensitivity Up OFF: 0.22lx/F1.2 [50IRE]In color mode: Electronic Sensitivity Up ON 32x: 0.007lx/F1.2 [50IRE]In monochrome mode: Electronic Sensitivity Up OFF: 0.022lx/F1.2[25IRE]In monochrome mode: Electronic Sensitivity Up ON 32
Operating Humidity    30% ~ 90% RH (non-condensing)
Operating Temperature    -10°C ~+50°C(14.0°F~122°F)
OSD Menu    Built-in (Maximum 8 zones)
Power Consumption  4W approx.
Protocols  TCP, UDP, RTP/RTCP, RTSP, HTTP, FTP, NTP, ONVIF support (Multicast Delivery available. )
S/N Ratio  50dB or better (p-p/rms)
Scanning System    NTSC : 525 lines at 59.94Hz, 2:1 interlace PAL : 625 lines at 50Hz, 2:1 interlace
Signal System    NTSC/PAL
Video Output    Internal Crystal Lock
Digital Noise Reduction    Built-in, ON/OFF selectable (DNR Function)
Angle of View    Horizontal: 28.8°~ 94.6° Vertical: 21.6°~ 68.4°
Automatic White Balance    ATW/ATWex/AWC/MANU selectable
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Flickerless    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
