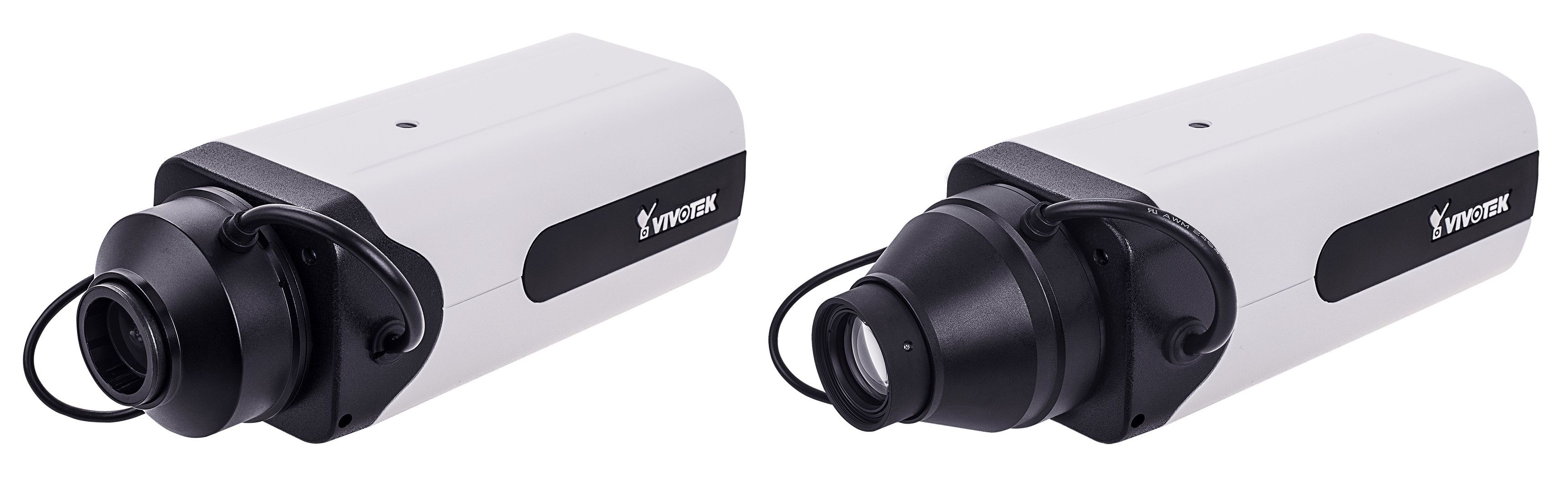

Vivotek IP9167-HT (40mm) 2 Megapixel Network Box Camera, 12-40mm

SKU
IP9167-HT (40mm)
Model No
IP9167-HT (40mm)
$454.14
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • H.265 Compression Technology
  • 30 fps @ 1920x1080
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Smart Stream III to Optimize Bandwidth Efficiency

The IP9167-HT (40mm) from Vivotek is a brand-new professional H.265 box network camera designed for a wide range of surveillance application, such as city surveillance, banking and SMB. It is equipped with a 2MP sensor with a viewing resolution of 1920x1080 at 30 fps. Furthermore, IP9167-HT (40mm) includes f12- 40mm remote focus lens, allowing the installer to have great coverage flexibility. With the most up to date VIVOTEK Smart Stream III technology, the camera is able to optimize quality for desired regions and thus ensure maximum bandwidth efficiency. By combining both H.265 and Smart Stream III, the IP9167-HT (10mm) can reduce both bandwidth and storage consumption by up to 90%. In addition, the IP9167-HT (40mm) is equipped with WDR Pro enabling the camera to capture both the dark and bright areas of an image, then combining the differences to create a highly realistic representation of the original scene. Even further improving the camera’s versatility, the IP9167-HT (40mm) includes SNV technology, making possible high quality full-color surveillance video under low-light conditions. These combined features enable the IP9167-HT (40mm) to provide video quality strikingly close to the capabilities of the human eye.

Features

  • H.265 Compression Technology: Reduces bandwidth and storage consumption by up to 90% while maintaining high video quality.
  • 30 fps @ 1920x1080: Ensures smooth, high-definition video playback for real-time monitoring.
  • WDR Pro for Unparalleled Visibility in High Contrast Environments: Captures details in both dark and bright areas, providing realistic scene representation.
  • SNV (Supreme Night Visibility) for Low Light Conditions: Delivers high-quality full-color video even in low-light environments.
  • Smart Stream III to Optimize Bandwidth Efficiency: Dynamically optimizes bandwidth usage for enhanced video quality in selected areas.
  • DIS (Digital Image Stabilization) to Control Image Stability: Minimizes motion blur for clear and stable images, improving video quality.
  • Video Rotation for Corridor View: Supports specialized monitoring setups for narrow spaces, enhancing coverage versatility.
  • Remote Focus Lens for Easy Installation: Facilitates flexible positioning and adjustments to maximize surveillance coverage.
  • Trend Micro IoT Security within Standard Warranty Period: Ensures robust protection against cyber threats, enhancing system reliability.

Vivotek IP9167-HT Detailed Camera Specifications

ModelIP9167-HT (40mm)
Camera Type2 Megapixel Network Box Camera
Lens12-40mm Remote Focus Lens
Resolution1920x1080
Frame Rate30 fps
CompressionH.265
WDRWDR Pro
SensitivitySNV for Low Light Performance
Video StabilizationDIS
SKU  IP9167-HT (40mm)
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Lens Type    Varifocal
Lens Size    12-40mm
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, H.265
Durability    Indoor
Voltage  PoE
Dimensions (W x H)  205 (D) x 70 (W) x 61 (H) mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.8" Progressive CMOS
Minimum Scene Illumination  0.09 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W)
Operating Humidity    90%
Operating Temperature    Start Temperature: 0°C ~ 50°C (32°F ~ 122°F), Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
Power Consumption  Max. 6.5W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
S/N Ratio  61 dB
Digital Noise Reduction    3D DNR
Angle of View    10° ~ 26° (Horizontal), 6° ~ 14° (Vertical), 11° ~ 30° (Diagonal)
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
