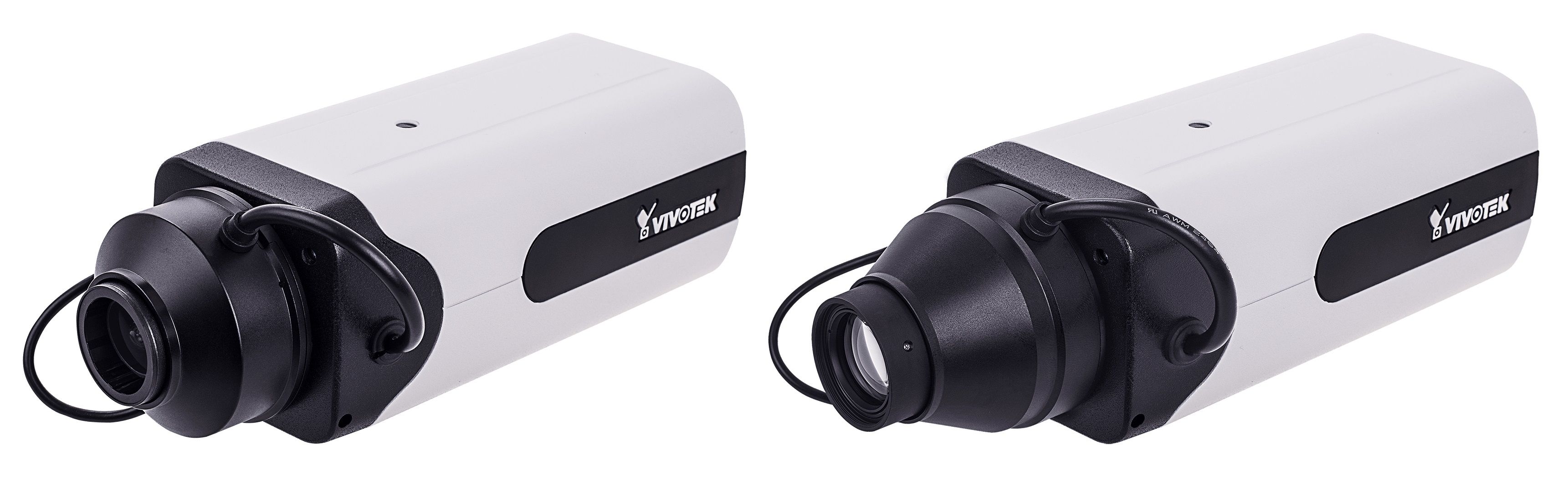

Vivotek IP9167-HT (10mm) 2 Megapixel Network Box Camera, 2.8-10mm

SKU
IP9167-HT (10mm)
Model No
IP9167-HT (10mm)
$293.80
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • H.265 Compression Technology
  • 30 fps @ 1920x1080
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Smart Stream III to Optimize Bandwidth Efficiency

The IP9167-HT (10mm) from Vivotek is a brand-new professional H.265 box network camera designed for a wide range of surveillance applications, such as city surveillance, banking, and SMB. It is equipped with a 2MP sensor with a viewing resolution of 1920x1080 at 30 fps. Furthermore, IP9167-HT (10mm) includes f2.8- 12mm remote focus lens, allowing the installer to have great coverage flexibility. With the most up-to-date VIVOTEK Smart Stream III technology, the camera optimizes quality for desired regions and thus ensures maximum bandwidth efficiency. By combining both H.265 and Smart Stream III, the IP9167-HT (10mm) can reduce both bandwidth and storage consumption by up to 90%. In addition, the IP9167-HT (10mm) is equipped with WDR Pro enabling the camera to capture both the dark and bright areas of an image, then combining the differences to create a highly realistic representation of the original scene. Even further improving the camera’s versatility, the IP9167-HT (10mm) includes SNV technology, making possible high-quality full-color surveillance video under low-light conditions. These combined features enable the IP9167-HT (10mm) to provide video quality strikingly close to the capabilities of the human eye.

Vivotek IP9167-HT (10mm) Camera Features

  • H.265 Compression Technology: Reduces bandwidth and storage consumption by up to 90%, allowing for efficient video streaming and storage.
  • 30 fps @ 1920x1080: Ensures smooth and high-resolution video output for enhanced surveillance.
  • WDR Pro for Unparalleled Visibility in High Contrast Environments: Captures clear images in scenes with both bright and dark lighting conditions.
  • SNV (Supreme Night Visibility) for Low Light Conditions: Provides high-quality full-color images even in low light, enhancing surveillance capabilities during nighttime.
  • Smart Stream III to Optimize Bandwidth Efficiency: Adjusts video quality in real-time to maintain clarity while minimizing bandwidth use.
  • DIS (Digital Image Stabilization) to Control Image Stability: Ensures that video remains stable and clear, even in windy or shaky environments.
  • Video Rotation for Corridor View: Allows for flexible installation in narrow spaces, optimizing monitoring effectiveness.
  • Remote Focus Lens for Easy Installation: Facilitates quick and convenient setup, reducing installation time and effort.
  • Trend Micro IoT Security within Standard Warranty Period: Provides enhanced security for your surveillance system against potential cyber threats.

Detailed Camera Specifications

ModelIP9167-HT (10mm)
Sensor2 Megapixel
Resolution1920x1080
Frame Rate30 fps
Lens Type2.8-10mm Remote Focus
WDRWDR Pro
Low Light CapabilitySNV Technology
CompressionH.265, H.264
StabilizationDIS
Security FeaturesTrend Micro IoT Security
Installation FeaturesRemote Focus Lens
Video OrientationCorridor View Support
SKU  IP9167-HT (10mm)
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Lens Type    Varifocal
Lens Size    2.8-10mm
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, H.265
Durability    Indoor
Voltage  PoE
Dimensions (W x H)  188 (D) x 70 (W) x 61 (H) mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.8" Progressive CMOS
Minimum Scene Illumination  0.07 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W)
Operating Humidity    90%
Operating Temperature    Start Temperature: 0°C ~ 50°C (32°F ~ 122°F), Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
Power Consumption  Max. 6.5W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
S/N Ratio  61 dB
Digital Noise Reduction    3D DNR
Angle of View    35° ~ 105° (Horizontal), 20° ~ 55° (Vertical), 41° ~ 127° (Diagonal)
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
