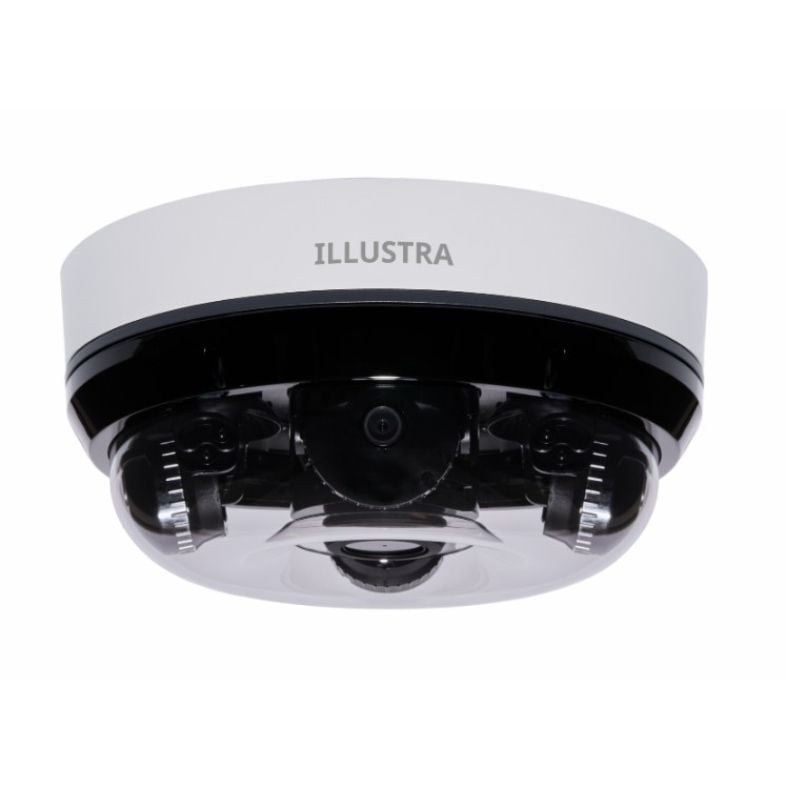

American Dynamics IP5M-20FFQ 5 Megapixel x 4 Network IP Illustra Fixed Multisensor Camera with 2.99mm Lens
SKU
IP5M-20FFQ
Model No
IP5M-20FFQ
$1,615.68
Product Highlights
- 20 MP Multisensor Wide-Area Coverage
- Advanced AI-Powered Surveillance
- Superior Low-Light & Night Performance
- Efficient Bandwidth & Storage with IntelliZip
- Rugged, All-Weather Durability
Speak to an expert
The Illustra Multisensor Fixed camera delivers complete situational awareness with four 5MP sensors providing full 20MP coverage and wide, overlapping fields of view. Designed for tough environments, it pairs ultra‑low‑light performance and Adaptive IR with advanced AI analytics for smarter detection and faster response. With IntelliZip compression, robust cybersecurity, and NDAA/TAA compliance, it’s an efficient, future‑ready solution for enterprise security.
Features
- 20 MP Multisensor Wide-Area Coverage
- Advanced AI-Powered Surveillance
- Superior Low-Light & Night Performance
- Efficient Bandwidth & Storage with IntelliZip
- Rugged, All-Weather Durability
- Enterprise-Grade Cybersecurity
- Flexible Installation & Power Options
- Encrypted Onboard Storage & Offline Recording
SKU  | IP5M-20FFQ |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Day/Night, Digital Noise Reduction, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | American Dynamics |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 20 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.99mm |
| Mount Type | Ceiling, Wall |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, 24vAC |
| Dimensions (W x H) | Ø260 x 116 mm (Ø10.2 x 4.6 in) |
| Image Device | Sony 1/2.8” Progressive Scan CMOS imager |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.09 lux 1/30s; 0.01 lux 1/4s B/W: 0.04 lux 1/30s; 0.001 lux 1/4s |
| Operating Humidity | 90% RH, Non-Condensing |
| Operating Temperature | -40°C (-40°F) to +60° C (140°F) |
| Weatherproof | IP66, IP67, IK10 |
| Digital Noise Reduction | Digital Noise Reduction 2D and 3D |
| Angle of View | Horizontal: 100.8°, V: 74.7° |
| IR Distance | 20m/65.6ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
