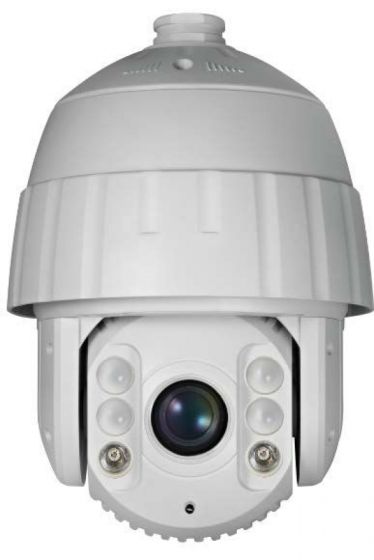

Security Tronix IP-NP302-IR 2 Megapixel IP Varifocal PTZ IR Dome Camera
SKU
IP-NP302-IR
Model No
IP-NP302-IR
$729.00
Product Highlights
- 2MP High Resolution
- 1080p HD Resolution
- 20X Optical zoom, 16X Digital zoom
- True Day/Night
- 3D DNR & DWDR
Speak to an expert
The IP-NP302-IR from Security Tronix is a 2 Megapixel IP Varifocal PTZ IR Dome Camera that offers superior surveillance capabilities. With its IP66 weather rating, ONVIF compatibility, and impressive specifications like a 1/2.8" CMOS sensor, Wide Dynamic Range, and 3D Digital Noise Reduction, this camera is designed for reliable performance in various environments. Equipped with a varifocal lens providing extensive zoom capabilities, it's ideal for both indoor and outdoor monitoring.
Security Tronix IP-NP302-IR Camera Features
- 2MP High Resolution: Ensures clear and detailed images for effective monitoring.
- 1080p HD Resolution: Provides crisp video quality for enhanced surveillance.
- 20X Optical zoom, 16X Digital zoom: Allows for detailed observation of distant subjects without losing quality.
- True Day/Night: Offers reliable performance both day and night for continuous monitoring.
- 3D DNR & DWDR: Minimizes noise and handles backlighting to maintain image clarity.
- IP66 Weather rating: Ensures durability and protection against harsh weather conditions.
- PoE Compatible: Simplifies installation with power over Ethernet capabilities.
- 3D Intelligent positioning: Enables precise camera positioning for optimal coverage.
Security Tronix IP-NP302-IR Detailed Camera Specifications
| Camera Type | IP Dome Camera |
| Resolution | 2 Megapixels (1080p) |
| Sensor | 1/2.8" CMOS |
| Lens | 4.7-94mm Varifocal |
| Optical Zoom | 20X |
| Digital Zoom | 16X |
| IR Range | 328 feet |
| Weather Rating | IP66 |
| Power Supply | 24VAC (included) |
SKU  | IP-NP302-IR |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Mount Type | Wall |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 220×353mm (8.66” × 13.91”) |
| Electronic Shutter | 1 to 1/100,000 s |
| Image Device | 1/2.8” Progressive Scan CMOS |
| Image Pixels-Effective | 2230K Pixels |
| Minimum Scene Illumination | Color: 0.05Lux @ F1.6, AGC On; 0 lux with IR; BW: 0.01Lux @ F1.6, AGC On; 0 lux with IR |
| Operating Humidity | 90% or less (non-condensing) |
| Operating Temperature | -30 °C – 65 °C (-22 °F – 149 °F) |
| Power Consumption | Max. 30W |
| Privacy Zone | 2 privacy masks programmable |
| Protocols | IPv4/IPv6 , HTTP , HTTPS , 802.1x , Qos , FTP , SMTP , UPnP , SNMP , DNS , DDNS , NTP , RTSP , RTP , TCP , UDP , IGMP , ICMP , DHCP , PPPoE |
| Weatherproof | IP 66 |
| Angle of View | 58.3 - 3.2 degree (Wide - Tele) |
| Automatic White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| IR Distance | 100m/328ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Digital Zoom | Yes |
