Security Tronix IP-NP302-IR/30X 2 Megapixel IP Varifocal PTZ IR Dome Camera
SKU
IP-NP302-IR/30X
Model No
IP-NP302-IR/30X
$839.00
Product Highlights
- 2MP High Resolution
- 30X Optical zoom, 12X Digital zoom
- 4.3-129.0mm varifocal lens
- 3D DNR, WDR
- IP66 Weather rating
Speak to an expert

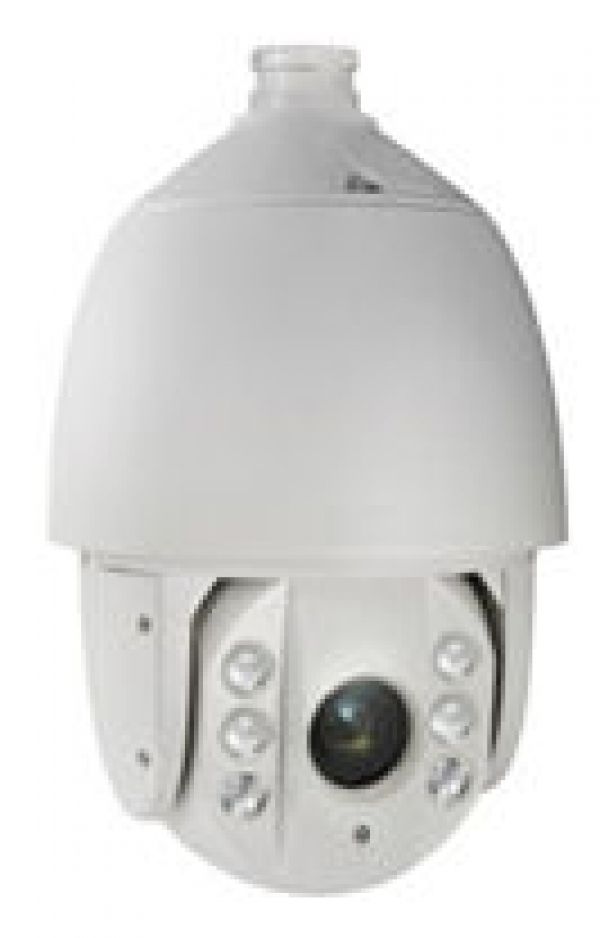

The IP-NP302-IR/30X from Security Tronix is a 2MP IP Varifocal PTZ IR Dome Camera designed for optimal surveillance performance. With features like a 30x optical zoom, advanced image processing technologies, and robust weather resistance, this camera ensures high-quality monitoring in diverse environments. Its wide dynamic range and noise reduction capabilities enhance visibility in both bright and low-light conditions, making it a reliable choice for any security setup.
Security Tronix IP-NP302-IR/30X Camera Features
- Resolution: 2MP High Resolution - Provides clear and detailed images, allowing for precise identification of subjects.
- Zoom Capability: 30X Optical zoom, 12X Digital zoom - Enables extensive coverage and the ability to focus on distant objects without loss of quality.
- Lens Type: 4.3-129.0mm varifocal lens - Offers flexible viewing angles to adapt to various monitoring needs.
- Image Processing: 3D Digital Noise Reduction and Wide Dynamic Range - Enhances image quality in challenging lighting conditions, ensuring visibility in both bright and dark areas.
- Durability: IP66 Weather rating - Ensures protection against dust and water, made for both indoor and outdoor use.
- Connectivity: PoE Compatible - Simplifies installation by allowing power and data transmission over a single Ethernet cable.
Security Tronix IP-NP302-IR/30X Detailed Camera Specifications
| Model | IP-NP302-IR/30X |
| Image Sensor | 1/2.8 inch CMOS |
| Max Resolution | 2 Megapixels |
| Optical Zoom | 30X |
| Digital Zoom | 12X |
| Lens Focal Length | 4.3-129.0mm |
| Max IR Range | 328 feet |
| Power Supply | 24VAC power supply included |
| Mounting Options | Mounting brackets sold separately |
| Compatibility | ONVIF compatible |
SKU  | IP-NP302-IR/30X |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Wall |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 220×353.4mm (8.66”×13.91”) |
| Electronic Shutter | 1-1/10,000s |
| Image Device | 1/2.8" Progressive Scan CMOS |
| Image Pixels-Effective | 1920(H)x1080(V) |
| Minimum Scene Illumination | Color : 0.05 lux (F1.4, 1/30 sec, 50 IRE, AGC On) B/W : 0.01 lux (F1.4, 1/30 sec, 50 IRE, AGC On), 0 lux with IR |
| Operating Humidity | 90% or less (non-condensing) |
| Operating Temperature | -30°C – 65°C (-22°F – 149°F) |
| Power Consumption | Max. 40W |
| Privacy Zone | 2 privacy masks programmable |
| Protocols | IPv4/IPv6 , HTTP , HTTPS , 802.1x , Qos , FTP , SMTP , UPnP , SNMP , DNS , DDNS , NTP , RTSP , RTP , TCP , UDP , IGMP , ICMP , DHCP , PPPoE |
| Signal System | PAL/NTSC |
| Weatherproof | IP 66 |
| Angle of View | 65.1-2.34 degree (Wide-Tele) |
| Automatic White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| IR Distance | 100m/328ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Digital Zoom | Yes |
