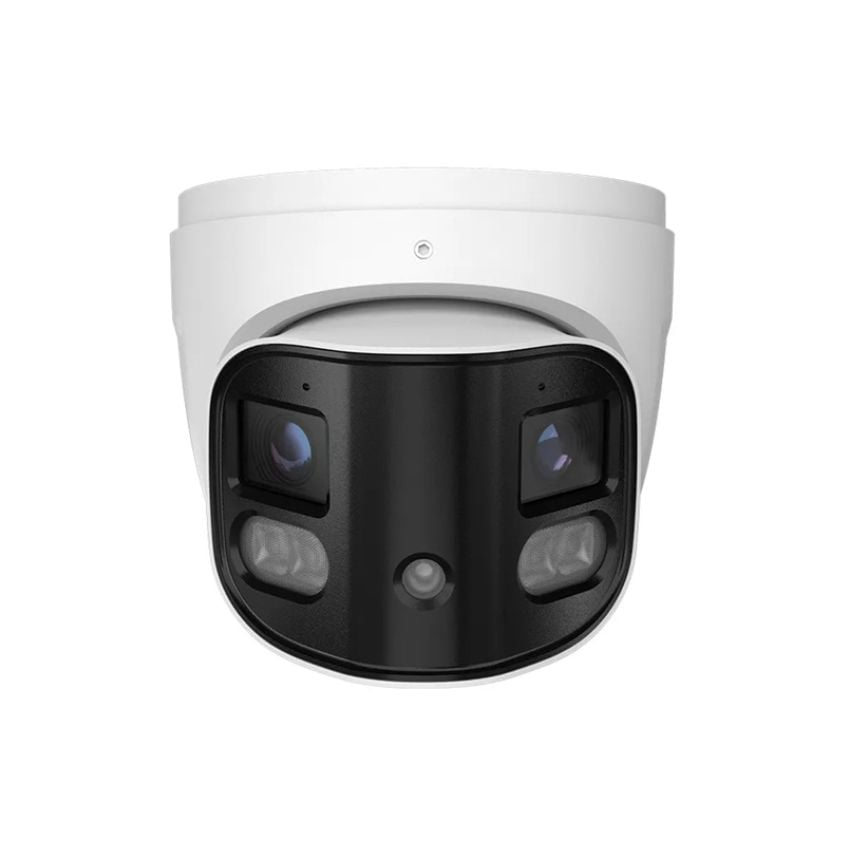

ENS IP-5DT8E3B-28 8 Megapixel 4K Network IP Titanium IPC Panoramic Camera with 2.8mm Lens
SKU
IP-5DT8E3B-28
Model No
IP-5DT8E3B-28
$600.00
Product Highlights
- H.265+/H.265/H.264+/H.264/MJPEG coding
- Max.resolution: 8MP ( 4640 × 1760 )
- ICR auto switch, true day / night vision
- Support smart supplement light
- Up to 30 m IR night view distance; up to 20m white light distance

Speak to an expert
The IP-5DT8E3B-28 is an advanced 8MP (4K) panoramic network camera engineered for comprehensive surveillance solutions. With its 2.8mm fixed lens, it offers an impressive maximum resolution of 4640 × 1760, ensuring wide and clear coverage for security applications. Its night vision capabilities, reaching up to 30m with infrared and 20m with white light illumination, make it effective for 24/7 monitoring. Enhanced by an active deterrence system featuring customizable alerts and warning lights, this camera not only observes but actively protects your property.
ENS IP-5DT8E3B-28 Camera Features
- Advanced Encoding: Supports H.265+/H.265/H.264+/H.264/MJPEG coding for efficient video storage and bandwidth usage.
- High Resolution: Maximum resolution of 8MP (4640 × 1760) provides crystal-clear image quality and extensive detail.
- True Day/Night Vision: ICR auto switch ensures seamless transition between day and night for consistent clarity.
- Smart Supplement Light: Enhances visibility in low-light conditions, resulting in less grainy video footage.
- IR Night View Distance: Up to 30m IR visibility allows for effective nighttime surveillance.
- White Light Illumination: Up to 20m distance provides additional lighting when necessary for color imaging at night.
- Image Enhancement Features: Includes 3D DNR, WDR, HLC, BLC, and ROI coding for optimal image quality in varying lighting conditions.
- Storage Capacity: Built-in micro SD card slot accommodates up to 256GB for local video storage.
- Power Supply Options: Flexible DC12V/PoE power supply for easy installation.
- Durability Rating: IP66 protection grade ensures the camera is resistant to dust and heavy rain.
- Triple Streaming: Supports three streams for versatile video management and viewing options.
- Mobile Surveillance Support: Compatible with iOS and Android smartphones for remote access and monitoring.
- Smart Motion Detection: Supports SMD for efficient event management and alerts.
- Easy Setup: Features P2P function for simple connection and configuration.
- Multi-Event Management: Enables multiple smart events simultaneously for streamlined security operations.
- Active Deterrence: Includes flashing blue/red lights for immediate response visibility.
- Customizable Alerts: Users can define warning voice imports for tailored deterrence strategies.
- Redundant Backup: Dual system backup provides reliability and security for recorded footage.
ENS IP-5DT8E3B-28 Detailed Specifications
| Model | IP-5DT8E3B-28 |
| Max Resolution | 8MP (4640 × 1760) |
| Lens | 2.8mm fixed lens |
| Night Vision | Up to 30m IR, up to 20m white light |
| Power Supply | DC12V/PoE |
| Storage Support | Micro SD slot, up to 256GB |
| Protection Grade | IP66 |
| Encoding Formats | H.265+/H.265/H.264+/H.264/MJPEG |
| Streaming | Support for three streams |
| Mobile Compatibility | iOS and Android |
| Active Deterrence | Flashing blue/red lights, customizable alerts |
| SKU | IP-5DT8E3B-28 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range, 4K Resolution, Facial Recognition |
| Manufacturer | ENS |
| NDAA | Compliant |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø 111.5 × 102.2 |
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s |
| Image Device | 1 / 2.7 " Progressive Scan CMOS × 2 |
| Minimum Scene Illumination | 0.0032 [email protected], AGC ON; 0 lux with LED ON |
| Operating Humidity | less than 95 % (non-condensing) |
| Operating Temperature | - 30 °C ~ 60 °C (-22°F~140°F) |
| Power Consumption | PoE: max. 10.2W; DC12V: max. 9W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, P2P, QoS |
| S/N Ratio | ≥50dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal: 180°; Vertical:66° |
| Rotation Angle | 0°~360° |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
