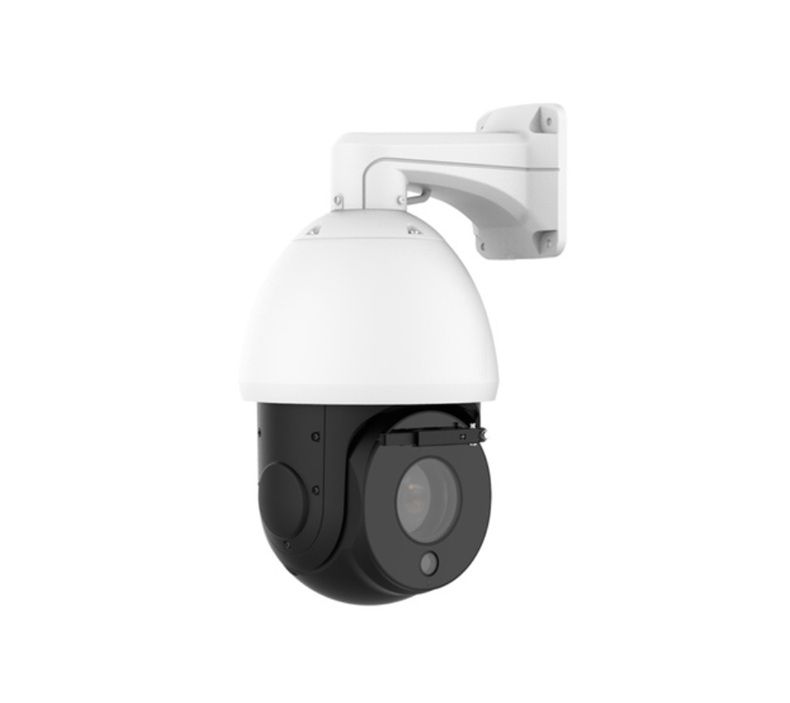

InVid INVID-MS-C5341-X25PE 5 Megapixel Network IP Outdoor IR PTZ Camera with 25X Lens
- Smart IR II (Combining the High Beam and Low Beam to adjust IR intensity to fit different lighting conditions)
- 140dB Super WDR (Excellent performance even when the ratio of the luminosity of brightest and darkest is up to 140dB)
- 90fps High Frame Rate (Camera can easily catch images with no latency despite of the high-speed movement)
- 0.005Lux Starlight (Deliver high detailed color images even in low light environment reaching 0.005Lux)
- Smart PTZ Motion Detection (Pan and tilt to the position of motion detected area automatically and zoom in synchronously)

The INVID-MS-C5341-X25PE from InVid is a powerful 5 megapixel IP camera designed for advanced surveillance with cutting-edge technology. Its features include a 25X optical zoom, an impressive IR range of up to 656ft, and industry-leading WDR that ensures clear imaging in varying light conditions. The camera supports PoE, is NDAA compliant, and features robust protection ratings making it ideal for both indoor and outdoor installations. Enhanced AI capabilities provide smart analytics for improved monitoring efficiency.
InVid INVID-MS-C5341-X25PE AI Video Analytics
- VCA Modes: 8 intelligent VCA modes powered by an AI engine filter objects and optimize detection for human and vehicle detection, improving monitoring accuracy.
- People Counting: Advanced counting technology provides high-accuracy real-time data with statistical reports, valuable for understanding foot traffic.
- Face Detection: Captures snapshots of detected human faces, enhancing efficiency in monitoring and alerting potential security breaches.
InVid INVID-MS-C5341-X25PE Intelligent PTZ Auto Tracking
The camera intelligently utilizes its motor mechanism to automatically track moving humans or vehicles by adjusting its Pan/Tilt/Zoom capabilities according to target distance, ensuring continuous and precise monitoring.
InVid INVID-MS-C5341-X25PE 30fps@4K Performance
With 4K HD resolution at a frame rate of 30fps, the camera captures detailed images smoothly, even during high-speed movement, ensuring vital details are not missed.
Additional Features
- Smart IR II: Adapts IR intensity for optimal visibility across different lighting conditions, enhancing nighttime surveillance quality.
- 140dB Super WDR: Ensures excellent performance in extreme lighting conditions, accommodating a vast range of luminosity.
- 90fps High Frame Rate: Captures clear images without latency during fast movements, ideal for high-velocity scenarios.
- 0.005Lux Starlight: Provides high-quality color images in extremely low light conditions down to 0.005Lux, expanding monitoring capacities.
- Smart PTZ Motion Detection: Automatically pans and tilts to the motion-detected area and zooms in for focused monitoring, enhancing situational awareness.
- IR Distance: Capable of capturing distinct images up to 300 meters at night with built-in IR LEDs, allowing for extensive coverage.
- 300 Preset Positions: Users can set up to 300 preset positions, enabling quick access to critical monitoring areas for efficient surveillance.
- Keyboard Control: Facilitates PTZ control through shortcut keys on the Milesight Keyboard for user-friendly operation.
- Smart Stream: Reduces bandwidth and storage consumption, with H.265+ technology resulting in savings of 70%-80% compared to H.264.
InVid INVID-MS-C5341-X25PE Detailed Specifications
| Model | INVID-MS-C5341-X25PE |
| Resolution | 5 Megapixels |
| Optical Zoom | 25X (4.8~120mm) |
| IR Range | Up to 656ft |
| WDR | 120dB |
| Low Light Capability | 0.008Lux |
| Protection Rating | IP66, IK10 |
| SD Card Slot | Yes |
| PoE Support | Yes |
| AI Features | Msense AI |
| NDAA Compliant | Yes |
| SKU | INVID-MS-C5341-X25PE |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | InVid |
| NDAA | Compliant |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 25X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | Φ205mmX310mm |
| Electronic Shutter | 1/100000s~1s |
| Image Device | 1/2.8″ Progressive Scan CMOS |
| Minimum Scene Illumination | Color: [email protected] B/W: 0Lux with IRon |
| Operating Humidity | 0~95%(Non-condensing) |
| Operating Temperature | -40℃~60℃ |
| Power Consumption | Min.: 10.5W(DC 24V / AC 24V), 12.4W(PoE) , Max.: 25W (DC 24V / AC 24V), 27.7W(PoE) |
| Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP,SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS1.2 |
| S/N Ratio | >55dB |
| Weatherproof | IP66 , IK10 |
| Angle of View | H57°~H2.8°/D69.8°~D3.2° /V43.8°~V1.5° |
| IR Distance | 200m/656ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
