InVid INVID-4000S1B Network Solar Surveillance Tower with Two 4MP WDR Bullet Camera
SKU
INVID-4000S1B
Model No
INVID-4000S1B
$25,875.00
Product Highlights
- T205 Watt 2 solar panels
- 100 Ah 2 AGM batteries
- 20 Watt 2 LED
- 2 x Blue Flashing Lights
- 15 Watt Red Strobe Light
Speak to an expert
Network Solar Surveillance Tower with Two 4MP WDR Bullet Camera
- Ships UPS Freight for Free!

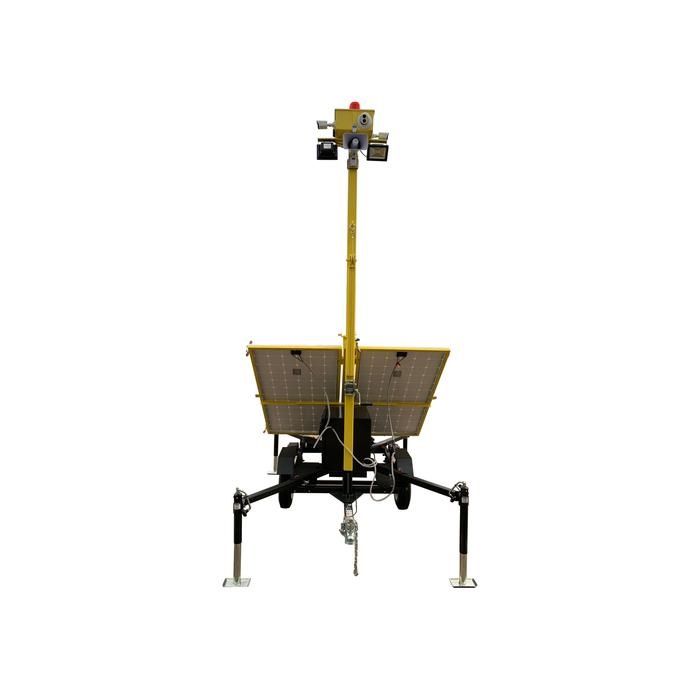

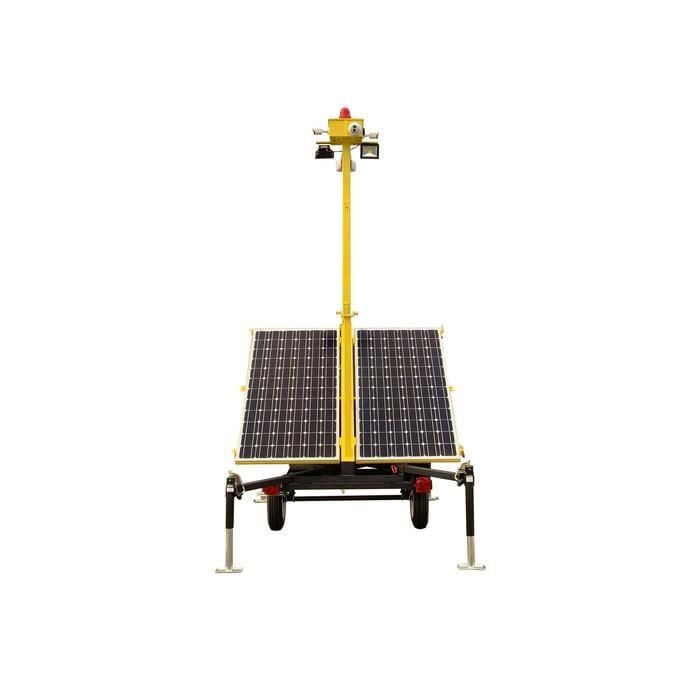

The INVID-4000 Solar Surveillance Tower is a standalone self-contained unit that can be quickly deployed at any outdoor location. The unit provides online surveillance using LTE/4G Gateway, which can be monitored remotely using mobile app, web app, and custom software. Solar surveillance towers operate silently and can be deployed at all areas without any disturbance to the public.
The INVID-4000 is designed to have a small foot print, and therefore can be deployed in tight spots. It is designed to have minimum two days of battery autonomy on full draw of power from installed equipment. However, customization for longer battery autonomy in a variety of service conditions is possible. Duty Cycle
The trailer should be placed such that the solar panels are in the correct position to receive direct sun light during the day, charging the batteries. The surveillance system will recording on NVR hard drive and transmit via GSM gateway. At dusk the blue light will turn on automatically till dawn, while the two flood lights can be set to switch off after user selected time interval.
Operational Specifications

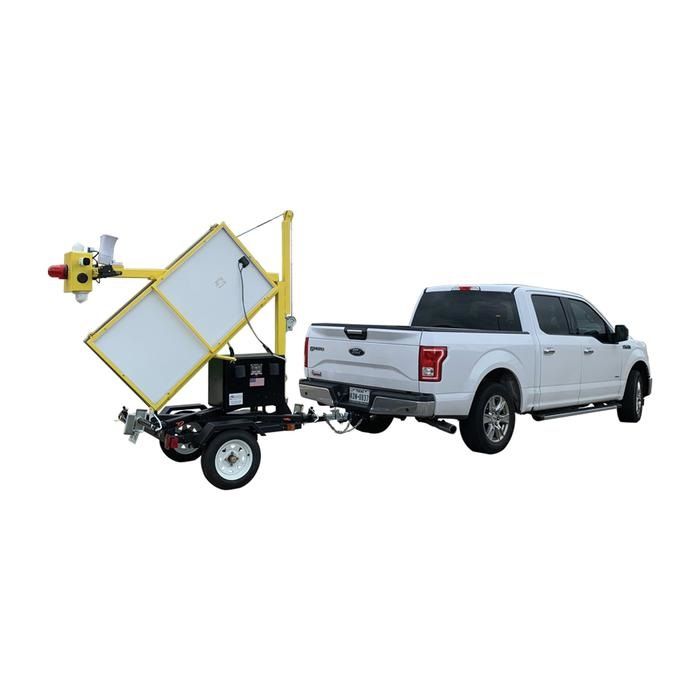

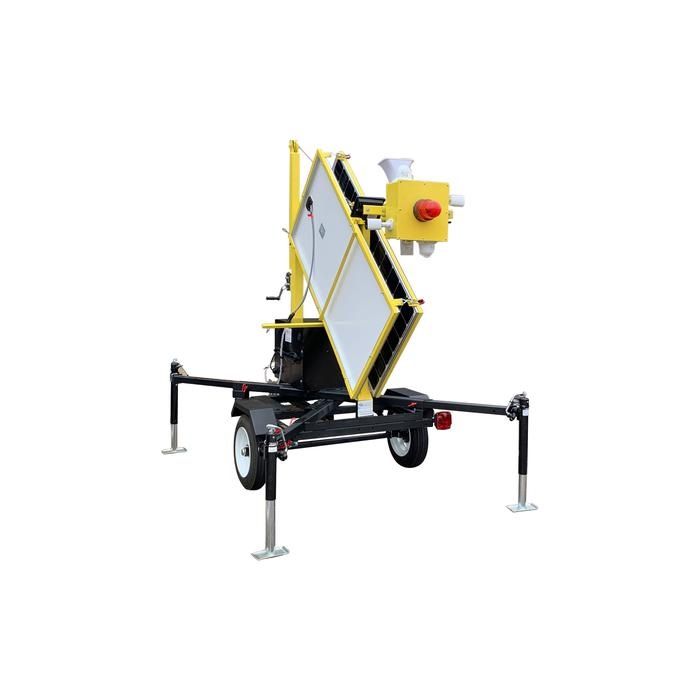

The camera tower of INVID-4000, tilts down using a hand winch assembly and locks into its traveling position for safe transportation
The two solar panels swing up and lock with clamps, minimizing air drag during transportation
The trailer’s low center of gravity and four outriggers (provided to level the trailer) keeps the tower stable
Maintenance free AGM Batteries provide power and an automated solar-based charging system keeps the batteries charged
An additional grid connect 7 Amp charger is also provided
The LED flood light operate from dusk on a timer with adjustable hours, while the blue flashing light operate dusk-to-dawn
The unit has alarm and strobe light to warn intruders which can be triggered manually or using one of the several automated features (perimeter intrusion, scene change, motion sensing)
Camera Functions
Auto Gain Control
Day/Night Vision
Weather Resistant
Camera Features
| T205 Watt 2 solar panels | Waterproof Smart On-Board Grid |
| 100 Ah 2 AGM batteries | Connect Battery Charger 7 Amp 24V |
| 20 Watt 2 LED | 4K 8 Channel NVR |
| 2 x Blue Flashing Lights | 2 Tera Byte Hard Drive |
| 15 Watt Red Strobe Light | 5 Port Ethernet PoE Switch |
| 30 Watt Siren | Ultra Fast CATll LTE Ethernet Gateway |
| SV USB out | Remote monitoring via internet is possible for system's battery voltage, charging, current draw & temperature |
Additional InVid Products
SKU  | INVID-4000S1B |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | InVid |
Camera Signal  | Network IP |
| Connection Type | Wireless |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Custom |
| Durability | Weather Resistant |
| Power Consumption | Waterproof Smart On-Board Grid Connect Battery Charger 7 Amp 24V |
| IR Distance | 60m/196.85ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
