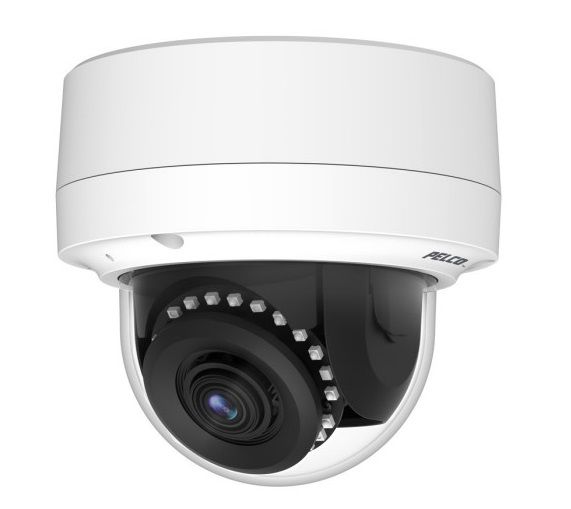

Pelco IMP331-1ES 3 Megapixel Sarix Pro Environmental Dome Camera, 2.8-12mm Lens
SKU
IMP331-1ES
Model No
IMP331-1ES
$475.17
Product Highlights
- H.265, H.264 Main, High, MJPEG video encoding
- Up to 5 MP resolution at 30 frames per second
- Up to 60 frames per second (ips) at 4 MP for 5 MP cameras
- Autofocus motorized remote zoom lens
- Integrated adaptive IR illumination up to 50 m (some models)
Speak to an expert
The Pelco IMP331-1ES 3 Megapixel Sarix Pro Environmental Dome Camera offers exceptional surveillance capabilities with advanced technology ideal for both indoor and outdoor environments. Featuring a 2.8-12mm motorized remote zoom lens, autofocus functionality, and robust build quality with IK10 and IP66/IP67 ratings, this camera excels in challenging conditions while ensuring high-quality video output with advanced video encoding options.
Pelco IMP331-1ES Camera Features
- Video Encoding: H.265, H.264 Main, High, MJPEG encoding options ensure efficient storage and high-quality streaming, optimizing video performance.
- High Resolution: Up to 5 MP resolution at 30 frames per second provides clear images for precise monitoring.
- Frame Rate: Achieve up to 60 frames per second at 4 MP for smooth motion capture, reducing video lag during critical moments.
- Remote Zoom Lens: Autofocus motorized lens allows for customizable field of view, enhancing flexibility in various surveillance scenarios.
- Adaptive IR Illumination: Integrated adaptive IR technology (up to 50m) improves visibility in low-light conditions, helping maintain security at all hours.
- Operating Temperature: Capable of functioning in extreme temperatures up to 60°C (140°F), making it suitable for diverse environments.
- Storage Capability: Support for Micro SDHC and SDXC cards up to 2 TB, providing ample local storage for recorded footage.
- Analytics Suite: Pelco Pro Analytics Suite enables advanced features like Adaptive Motion and Object Counting, enhancing surveillance intelligence.
- Power Options: Versatile power options including PoE, 24 VAC, and 12 VDC ensure convenient installation with minimal wiring complications.
- Smart Compression Technology: Pelco Smart Compression optimizes storage efficiency, reducing bandwidth without compromising image quality.
- Vandal Resistant: All models are vandal resistant to IK10, ensuring durability in high-risk environments.
- Compatibility: Seamlessly integrates with Pelco and third-party video management systems for enhanced usability and functionality.
- ONVIF Compliance: Complies with ONVIF profiles S, G, Q, and T for interoperability with various IP-based security products.
Pelco IMP331-1ES 3 Megapixel Dome Camera Specifications
| Feature | Details |
|---|---|
| Model | Pelco IMP331-1ES |
| Resolution | Up to 5 MP |
| Lens | 2.8-12mm motorized remote zoom |
| Frame Rate | 30 FPS at 5 MP; 60 FPS at 4 MP |
| Video Encoding | H.265, H.264, MJPEG |
| IR Illumination | Integrated up to 50m (model dependent) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Support | Micro SDHC/SDXC up to 2 TB |
| Analytics | Pelco Pro Analytics Suite |
| Power Options | PoE, 24 VAC, 12 VDC |
| Vandal Resistance | IK10 |
| Weather Resistance | IP66/IP67 |
| Compatibility | Pelco and third-party systems |
| ONVIF Compliance | Profiles S, G, Q, and T |
SKU  | IMP331-1ES |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Electronic Shutter | 1/10,000 to 1 sec |
| Image Device | 1/2.8-inch CMOS Progressive scan |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.065 lux (33 ms), 0.01625 lux (200 ms), Mono: 0.03 lux (33 ms), 0.0075 lux (200 ms), Mono (IR On): 0.0 lux |
| Operating Humidity | 5% to 95%, RH condensing |
| Operating Temperature | -40° to 60°C (-40° to 140°F) |
| OSD Menu | English, French, German, Italian, Portuguese, Arabic, Russian, Spanish, Turkish, Korean, Simplified Chinese |
| Power Consumption | 12 VDC: 16.8 W, 24 VAC: 24 W, PoE+: 16.8 W |
| Protocols | TCP/IP, UDP/IP (unicast, multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205, ARP, DDNS, ICMP, IGMP, RTCP, SFTP, SIP, TLS/ TTLS, WS-discovery |
| S/N Ratio | ≥50 dB |
| Weatherproof | IP66, IP67 |
| Digital Noise Reduction | Yes (ON/OFF selectable) |
| Angle of View | Diagonal: 120°~ 39°, Horizontal: 90°~ 31°, Vertical: 66°~ 23° |
| Automatic White Balance | Range: 2,000° to 10,000°K; Selectable ATW (Auto Tracing White Balance), Auto, and Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
