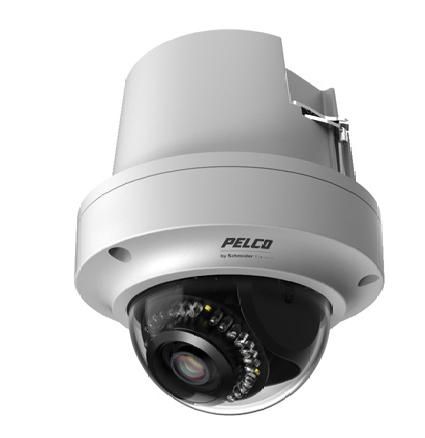

Pelco IMP1110-1ERI Sarix 1Mp Outdoor IR In-Ceiling Mount Network Mini Dome, 2.8-10mm
SKU
IMP1110-1ERI
Model No
IMP1110-1ERI
$848.00
Product Highlights
- Up to 30 Images per Second (ips) at 1080p
- Autofocus Motorized Remote Zoom Lens
- Integrated Adaptive IR Illumination
- Accessible Edge Storage with Micro SD Card
- Motion Detection and Camera Sabotage Detection
Speak to an expert
Sarix 1MP Outdoor IR In-Ceiling Mount Network Mini Dome Camera
- Within the Sarix Professional range, the Sarix IMP Series mini dome cameras feature a remote zoom lens for wide angle or long range surveillance needs. Autofocus capability ensures the cameracan be automatically refocused when needed. Additionally, the Sarix IMP Series features advanced color science and a mechanical IR cut filter for increased sensitivity in low-lightinstallations. Sarix Professional range cameras support up to two simultaneous video streams and a third service stream. The two streams can be compressed with efficient H.264 High or Main profiles or MJPEGformats. The streams can be configured to a variety of frame rates and bit rates to optimize image quality with bandwidth and storage efficiency.
- Sarix Professional range cameras feature onboard edge storage with a micro SD card. Video clips of varying lengths can be stored to the card upon alarm, or video can be written continuously to the SDcard in the case of network outage. Video can be retrieved from the card through the FTP protocol or by using an ONVIF Profile G enabled client. Sarix Professional range cameras feature simple motion detection algorithms allowing the camera to record or send an alarm when there is motion detected in a selected zone or within the entire scene. A camera sabotage alarm is triggered if the lens is obstructed or when the camera is repositioned.Sarix Professional range cameras seamlessly connect to Pelco video management systems such as Endura version 2.0 (or later) and Digital Sentry version 7.3 (or later). Sarix Professional rangecameras integrate with major third-party video management systems through the Pelco API and other third-party software and systems through the open ONVIF Profile S and Profile G standards.
Camera Functions
Auto Gain Control
Auto White Balance
Day/Night Vision
3D DNR
Motion Detection
Onvif
Vandal Resistant
Weather Resistant
WDR
Camera Features
| Up to 30 Images per Second (ips) at 1080p | Clearance Above Ceiling 10.16 cm (4 in.) |
| Autofocus Motorized Remote Zoom Lens | Maximum Ceiling Thickness 3.81 cm (1.5 in.) |
| Integrated Adaptive IR Illumination | 3/4-Inch NPT or 25 mm Conduit Attachments On Side and Top of Back Box |
| Accessible Edge Storage with Micro SD Card | IP66 Ingress Protection |
| Motion Detection and Camera Sabotage Detection | NEMA Type 4X |
| Operating Temperature from -45° to 50°C (-50° to 122°F) | NEMA TS-2 (Temp.) para 2.2.7.3 - 2.2.7.7 |
| Power over Ethernet (PoE) and 24 VAC Power Input | IK10 (20J) Impact Resistance |
| Compatible with Pelco and Third-Party Video Systems | Plenum Rated Back Box |
| ONVIF Profile S and Profile G Conformant |
Introducing Sarix Professional Series 3
A new generation has arrived. With Pelco's Sarix Professional Series 3 cameras, you have access to four models that suit your unique security needs. Find out how our latest series of cameras provide you with rugged and intelligent surveillance solutions.
Additional Pelco Products
SKU  | IMP1110-1ERI |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | 61~100 Feet |
| Resolution | 1 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-10mm |
| Mount Type | In-Ceiling |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Electronic Shutter | 1 ~ 1/8,000 sec |
| Image Device | 1/4-inch Progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.30 lux @ f/1.4, 33 ms; 0.02 lux @ f/1.4, 200 ms, B/W (with IR Illumination): 0.00 lux @ f/1.4, 33 ms; 0.00 lux @ f/1.4, 200 ms –45° to 55°C (–50° to 131°F) |
| Operating Humidity | 15% to 85%, RH condensing |
| Operating Temperature | –40° to 50°C (–40° to 122°F) |
| Power Consumption | <10.50 W |
| Protocols | TCP/IP, UDP/IP (unicast, multicast IGMP), ICMP, IPv4, IPv6, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS |
| S/N Ratio | 50 dB |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Digital Noise Reduction | Yes (ON/OFF selectable) |
| Automatic White Balance | 2,500° to 8,000°K |
| IR Distance | 25m/82ft. |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
