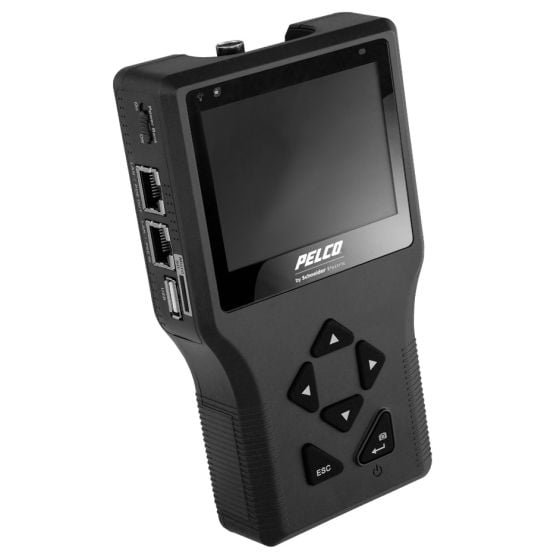

The IPCT01 Pelco camera tool is a portable, battery-powered tool that provides flexibility in field installation of network video cameras with built-in Power over Ethernet (PoE) support. It connects directly to a camera to provide power, and display live video to adjust camera viewing angle and focus. Power can also be delivered through PoE bypass from an alternate power source. The tool offers a user-friendly, 3.5-inch touch screen for zooming and programming functions.

Pelco IP Camera Installation Tool Features

• Power Network Camera with Built-in PoE Support: Enables you to power network cameras directly without the need for additional power sources, simplifying the installation process.
• Simplifies Camera Installation: The intuitive design helps technicians quickly and efficiently set up network cameras, reducing installation time.
• Local Storage for Final Installation Snapshots: This feature allows you to capture and save installation images, helping with future reference and troubleshooting.
• 3.5-inch LCD Touch Screen with 320 x 240 Resolution: The high-quality touch screen provides clear visuals for easier navigation and camera adjustments.
• Supports DHCP or Static IP Address: Flexible network configuration options give you the freedom to work in various setups, enhancing compatibility.
• Upgradeable in the Field with New Firmware: Ensure your tool stays current with the latest features and improvements, extending its useful life.

Pelco IPCT01 Detailed Specifications
