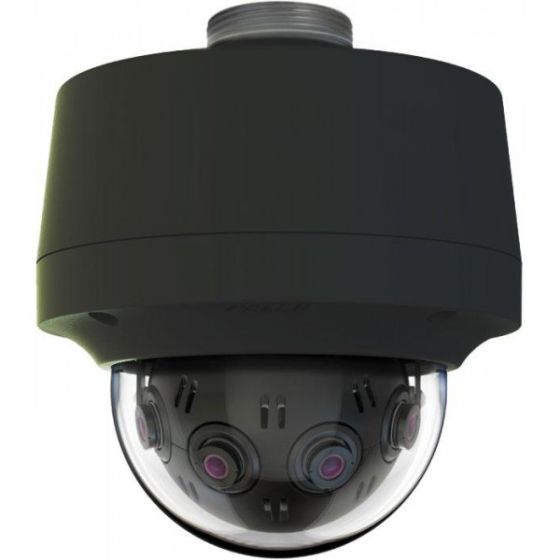

Pelco IMM12036-B1P 12 Megapixel 270° Panoramic Pendant, Environmental Vandal Network Camera, Black
SKU
IMM12036-B1P
Model No
IMM12036-B1P
$1,850.00
Product Highlights
- Constant, seamless situational awareness
- Zoom in for detail live or retrospectively with client-side dewarping
- Multiple immersive PTZ views at video management system (VMS)
- Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
- Up to 30 frames per second (fps)
Speak to an expert
The Pelco 12 MP 270° Panoramic Pendant Environmental Vandal Network Camera is designed to deliver exceptional situational awareness through its unique panomersive capabilities. Boasting the SureVision 2.0 technology, it ensures high image quality, excellent low-light performance, and a wide dynamic range, making it ideal for challenging lighting conditions. With its advanced analytics and a frame rate of up to 12.5 frames per second, this camera enables quick detection and response to events while providing the flexibility of Power over Ethernet Plus for simplified installation.
Pelco 12 MP 270° Panoramic Pendant Camera Unique Benefits
- Exceptional Image Quality: The SureVision 2.0 technology provides outstanding low-light performance and true wide dynamic range (WDR), ensuring clear images in various lighting conditions.
- Panomersive Experience: Seamless situational awareness with stitched panoramic views allowing operators to zoom in for details across multiple immersive views.
- Integrated Analytics: The 8 Pelco video analytics options enable quick focus on critical events like loitering or object counting, enhancing security management.
- Efficient Video Streaming: Supports H.264 encoding for effective storage and bandwidth conservation while delivering high-definition images.
- Easy Installation: Power over Ethernet Plus (PoE+) simplifies wiring and boosts camera availability through uninterruptible power supply (UPS).
Pelco 12 MP 270° Panoramic Pendant Detailed Specifications
| Feature | Details |
|---|---|
| Camera Resolution | Up to 12 Megapixels (4 x 3 MPx) |
| Frame Rate | Up to 12.5 fps at full resolution |
| WDR Performance | Outstanding, with anti-bloom technologies |
| Power Supply | Power over Ethernet Plus (PoE+) |
| Video Compression | H.264 Smart Compression Technology |
| Construction | Alodine Aluminum, IK10 rating |
| Video Analytics | 8 Pelco behaviors including loitering detection and object counting |
| Mounting | 1-1/2 in. NPT Conduit/Pipe Attachment |
| Color | Black Finish |
| Compatibility | ONVIF Profile S and Profile G; works with Pelco VMS |
SKU  | IMM12036-B1P |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/3.2-inch Progressive scan CMOS |
| Minimum Scene Illumination | Color (33 ms): 0.3 lux, Mono (33 ms): 0.2 lux |
| Operating Humidity | 10 to 95%, RH condensing |
| Operating Temperature | –10° to 50°C (14° to 122°F)† |
| OSD Menu | English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish |
| Power Consumption | Without Heater: 17 Watts, With Heater: 23 Watts |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) |
| S/N Ratio | >50 dB |
| Digital Noise Reduction | 3D |
| Processor | Intel® Core™ i3 processor, 2.4 GHz |
| Angle of View | Horizontal FoV: 360°, Vertical FoV: 73° |
| Wide Dynamic Range | >120 dB |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
