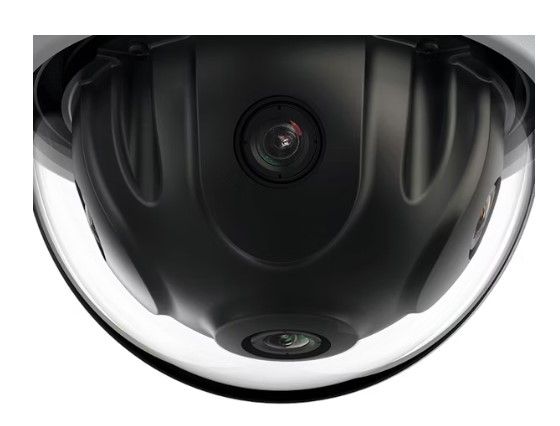

Pelco IMM12027-1EI 12 Megapixel 270° Panoramic In-ceiling, Environmental Vandal Network Camera, Gray
SKU
IMM12027-1EI
Model No
IMM12027-1EI
$1,658.44
Product Highlights
- Constant, seamless situational awareness
- Zoom in for detail live or retrospectively with client-side dewarping
- Multiple immersive PTZ views at video management system (VMS)
- Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
- Up to 30 frames per second (fps)
Speak to an expert
The Pelco 12 MP 270° Panoramic In-ceiling Environmental Vandal Network Camera (IMM12027-1EI) offers groundbreaking technology combining high-resolution imaging with an impressive panoramic view. Designed for seamless integration with Pelco's Video Management Systems, this camera ensures real-time situational awareness and superior image quality, even in challenging lighting conditions. With advanced analytics, user-friendly installation via Power over Ethernet Plus, and robust construction, it’s the ideal solution for comprehensive surveillance coverage.
Pelco 12 MP 270° Panoramic Camera Key Features
- High-Resolution Imaging: Up to 12 MP (4 x 3 MPx) resolution enhances detail, allowing for identification at a distance.
- Seamless Integration: Works with Pelco VideoXpert, Digital Sentry, and third-party VMS partners for consistent monitoring and management.
- Advanced Analytics: Eight Pelco video analytic behaviors including Abandoned Object and Loitering Detection facilitate efficient event monitoring.
- Power Over Ethernet Plus (PoE+): Simplifies installation by reducing wiring needs, enhances camera availability, and supports remote power management.
- Outstanding Image Quality: SureVision 2.0 technology provides excellent low-light performance and true WDR, maintaining clarity in challenging environments.
- Local Storage Capability: Supports micro SD storage for backup and improved accessibility to recorded footage.
Pelco 12 MP 270° Camera Specifications
| Specification | Details |
|---|---|
| Camera Type | In-ceiling Vandal Network Camera |
| Resolution | Up to 12 MP (4 x 3 MPx) |
| Field of View | 270° Panoramic |
| Frame Rate | Up to 30 fps |
| Video Compression | H.264 Level 5.1 high profile, constrained variable bit rate |
| Network Protocols | ONVIF Profile S and G conformant |
| Installation Method | Power over Ethernet Plus (PoE+) |
| Weather Resistance | Meets IP66 and NEMA Type 4X ratings |
| Analytics | 8 Pelco video analytic behaviors |
| Material | Alodine Aluminum construction meets IK10 |
| Light Finish | Light Gray |
| Storage | Micro SD support for local storage |
SKU  | IMM12027-1EI |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/3.2-inch Progressive scan CMOS |
| Minimum Scene Illumination | Color (33 ms): 0.3 lux, Mono (33 ms): 0.2 lux |
| Operating Humidity | 10 to 95%, RH condensing |
| Operating Temperature | –40° to 50°C (–40° to 122°F)† |
| OSD Menu | English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish |
| Power Consumption | Without Heater: 17 Watts, With Heater: 23 Watts |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) |
| S/N Ratio | >50 dB |
| Video Compression Format | H.264 , M-JPEG |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Processor | Intel® Core™ i3 processor, 2.4 GHz |
| Angle of View | Horizontal FoV: 270°, Vertical FoV: 73° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
