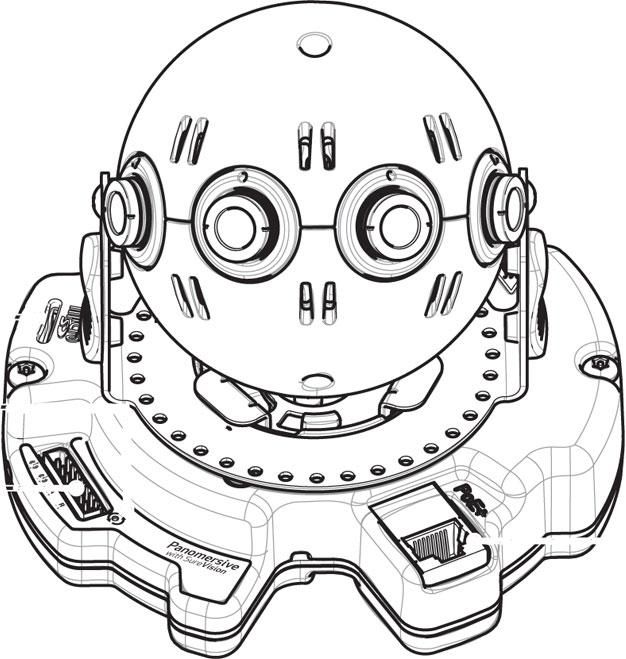

Pelco IMM12018-EBASUS 12 Megapixel 180° Panoramic Environmental Vandal Network Camera Base Module, US

SKU
IMM12018-EBASUS
Model No
IMM12018-EBASUS
$2,241.79
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Constant, seamless situational awareness
  • Zoom in for detail live or retrospectively with client-side dewarping
  • Multiple immersive PTZ views at video management system (VMS)
  • Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
  • Up to 30 frames per second (fps)

The Pelco 12 MP 180° Panoramic Environmental Vandal Network Camera offers unparalleled situational awareness with its advanced multi-imager technology. Capture detailed panoramic views while maintaining clarity, even in challenging lighting conditions. With industry-leading image quality, seamless integration with Pelco’s video management systems, and cutting-edge analytics, this camera enhances security and monitoring capabilities for diverse environments.

Pelco 12 MP 180° Panoramic Camera Key Features

  • Unmatched Visual Clarity: The camera utilizes SureVision 2.0 technology for exceptional low-light performance and Wide Dynamic Range (WDR), ensuring clear images in various lighting conditions.
  • Seamless Integration: Easily integrates with Pelco’s Video Management Systems (VMS) and is ONVIF Profile S and G compliant for versatile use in different systems.
  • Advanced Analytics: Equipped with eight Pelco video analytic behaviors, enabling quick identification of potential security threats through features such as Abandoned Object and Motion Detection.
  • High Frame Rate: Operates at up to 12.5 fps at full resolution, ensuring smooth video streams even during critical events.
  • Power over Ethernet Plus (PoE+): Simplifies installation by eliminating the need for separate power supplies, making setup efficient and reducing cabling clutter.
  • Multiple Streaming Options: Supports various video encoding formats, optimizing storage and bandwidth usage while maintaining stream quality.

Detailed Camera Specifications

SpecificationDetails
Resolution12 Megapixel (4 x 3 MPx)
Frame RateUp to 12.5 fps at full resolution
Video CompressionH.264 level 5.1 high profile and CVBR
Power SourcePower over Ethernet Plus (PoE+)
Analytics8 video analytic behaviors including Adaptive Motion Detection and Object Counting
Weather ResistanceYes
Vandal ResistanceYes
ConnectivityONVIF Profile S and G compliant
Local StorageMicro SD support
SKU  IMM12018-EBASUS
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Pelco
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    12 Megapixel
Lens Type    Fixed
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Image Device    1/3.2-inch Progressive scan CMOS
Minimum Scene Illumination  Color (33 ms): 0.2 lux, Mono (33 ms): 0.14 lux
Operating Humidity    10 to 95%, RH condensing
Operating Temperature    –40° to 50°C (–40° to 122°F)
OSD Menu    English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish
Power Consumption  Without Heater: 17 Watts, With Heater: 23 Watts
Protocols  TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP)
S/N Ratio  >50 dB
Weatherproof    IP66
Digital Noise Reduction    3D
ProcessorIntel® Core™ i3 processor, 2.4 GHz
Angle of View    Horizontal FoV: 180°, Vertical FoV: 41°
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
