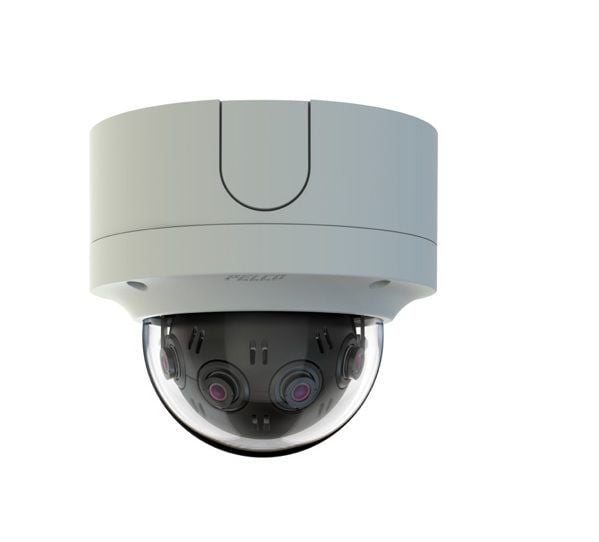

Pelco IMM12018-1ESUS 12 Megapixel 180° Panoramic Surface, Environmental Vandal Network Camera, Gray, US
SKU
IMM12018-1ESUS
Model No
IMM12018-1ESUS
$2,231.38
Product Highlights
- Constant, seamless situational awareness
- Zoom in for detail live or retrospectively with client-side dewarping
- Multiple immersive PTZ views at video management system (VMS)
- Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
- Up to 30 frames per second (fps)
Speak to an expert
The Pelco 12 MP 180° Panoramic Surface Environmental Vandal Network Camera, part of the Optera IMM Series, offers unparalleled situational awareness with its seamless 180-degree panoramic views. Enhanced with SureVision 2.0 technology, this camera delivers exceptional image quality, even in challenging lighting conditions. It integrates smoothly with various video management systems, ensuring efficient monitoring and innovative analytics capabilities to enhance security measures.
Camera Functions - Pelco 12 MP 180° Panoramic Camera
- Seamless integration: Compatible with Pelco VideoXpert, Digital Sentry, and third-party VMS partners, offering smooth user experiences.
- Intelligent analytics: Equipped with 8 Pelco video analytic behaviors like motion detection and object counting, enabling proactive monitoring of areas of interest.
- Exceptional image quality: Up to 12 Megapixels resolution with outstanding low-light performance and wide dynamic range (WDR), ensuring clear imagery in varied lighting scenarios.
- Real-time performance: Captures up to 30 frames per second for smooth video quality, crucial for detailed observation and criminal activity analysis.
- Power over Ethernet Plus (PoE+): Simplifies installation and reduces cabling by providing both power and data over a single cable, enhancing camera reliability.
- Robust design: Vandal and weather-resistant, meeting IP66 and NEMA Type 4X standards, suitable for outdoor environments.
Detailed Specifications - Pelco IMM12018-1ESUS
| Camera Resolution | 12 Megapixels (4 x 3 MPx) |
| Frame Rate | Up to 30 frames per second (fps) |
| Low-Light Capability | SureVision 2.0 technology for enhanced low-light performance |
| Video Compression | Pelco H.264 Smart Compression Technology |
| Power Requirements | Power over Ethernet Plus (PoE+) |
| Mounting Options | Attaches to standard 4 in. square outlet box and 2-gang electrical box; 3/4 in. NPT or 25 mm conduit attachments |
| Storage | Local storage with Micro SD capability |
| Compliance | ONVIF Profile S and G compliant |
| Durability Standards | Meets IP66 and NEMA Type 4X standards |
| Vandal Resistance | IK10 rated Alodine aluminum construction |
SKU  | IMM12018-1ESUS |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/3.2-inch Progressive scan CMOS |
| Minimum Scene Illumination | Color (33 ms): 0.2 lux, Mono (33 ms): 0.14 lux |
| Operating Humidity | 10 to 95%, RH condensing |
| Operating Temperature | –40° to 50°C (–40° to 122°F) |
| OSD Menu | English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish |
| Power Consumption | Without Heater: 17 Watts, With Heater: 23 Watts |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) |
| S/N Ratio | >50 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Processor | Intel® Core™ i3 processor, 2.4 GHz |
| Angle of View | Horizontal FoV: 180°, Vertical FoV: 41° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
