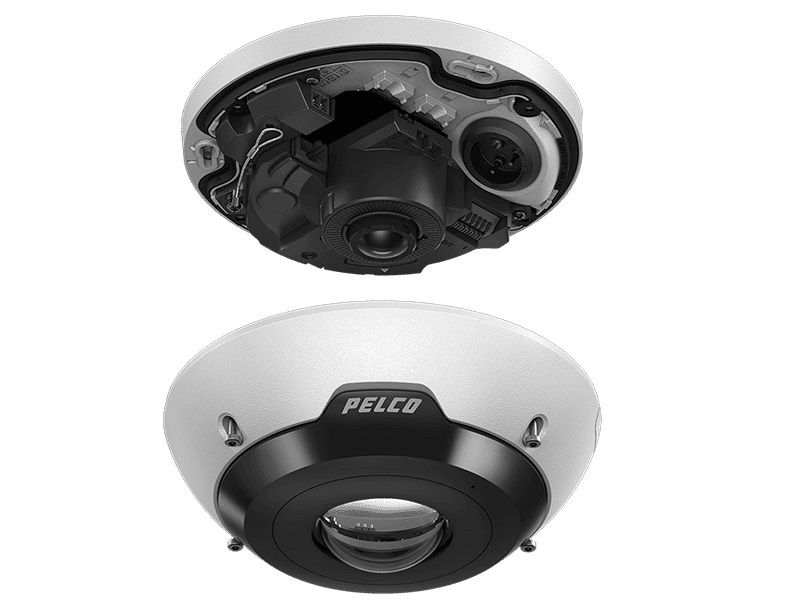

Pelco IMF122-1ES 12 Megapixel Fisheye Environmental Surface Mount Network Camera with 1.6mm Lens
SKU
IMF122-1ES
Model No
IMF122-1ES
$799.00
Product Highlights
- Built-In Analytics
- 360-Degree Panoramic Views
- Wide Dynamic Range
- Adaptive Ir Technology1
- Pelco Smart Compression Technology1
Speak to an expert
12 Megapixel Fisheye Environmental Surface Mount Network Camera
- The IMF122-1ES from Pelco is a 12-megapixel fisheye environmental surface mount network camera with a 1.6mm lens. The Pelco Fisheye camera features built-in AI-powered Pelco Smart Analytics, powered by Motorola Solutions. This helps to detect critical events and helps to increase security teams' productivity by expediting real-time responses and forensic investigations. This panoramic camera is a cost-effective and easy-to-install solution that provides 360-degree views of large areas from a single vantage point, bringing superior situational awareness, free from any blind spots. With a sleek, low-profile design the fisheye camera provides a discreet video security solution. Facilities such as schools, retailers, commercial buildings, casinos, hotels and airports or train platforms can leverage the camera's high-resolution video to secure spaces and optimize operational efficiencies.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Motion Detection
Onvif
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| Built-In Analytics | Reduces bandwidth and storage needs with Pelco Smart Compression technology without compromising image quality |
| Brings higher accuracy, detection and classification of people through Pelco Smart Analytics, powered by Motorola Solutions | Sleek, Low-Profile & Easy To Install |
| 360-Degree Panoramic Views | Offers a discreet video security solution with a paintable front plate2 that can blend in with interior aesthetics, backed by a quick and simple installation |
| Provides 360-degree coverage from a single vantage point to help lower overall video security deployment costs | Vandal & Water Resistant |
| Wide Dynamic Range | Rated IK10 for vandal resistance and IP66/67 Type 4X for water resistance1, enabling indoor and outdoor use1 |
| Captures details in scenes with both very bright and very dark areas to maximize image quality | Audio Recording |
| Adaptive Ir Technology1 | Offers optional audio recording capability for additional evidentiary detail with a built-in microphone |
| Provides optimal brightness in scenes with low-light for high-resolution image detail | Onvif Compliant |
| Pelco Smart Compression Technology1 | Enables connectivity to Pelco VideoXpert and other leading Video Management Systems and is ONVIF Profile S, G and Tcompliant |
Pelco Fisheye Camera
The Pelco Fisheye Camera features built-in AI-powered Pelco Smart Analytics which detect critical events and help increase security teams’ productivity by expediting real-time responses and forensic investigations. This new panoramic camera is a cost-effective and easy-to-install solution that provides 360 degree views of large areas from a single vantage point, bringing superior situational awareness free from any blind spots.
Additional Pelco Products
SKU  | IMF122-1ES |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 153 mm x 153 mm x 61 mm; 6” x 6” x 2.4” |
| Electronic Shutter | Automatic, Manual (1/6 to 1/8000 sec) |
| Image Device | 1/2.3” progressive scan CMOS |
| Minimum Scene Illumination | 0 lux |
| Operating Humidity | 0 - 95% non-condensing |
| Operating Temperature | -10 °C to +70 °C (14 °F to 158 °F) |
| Power Consumption | With IR: 26 W, Without IR: 11 W |
| Privacy Zone | Up to 64 zones |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP |
| Weatherproof | IP66, IP67 |
| Digital Noise Reduction | 3D Noise Reduction Filter |
| Angle of View | Horizontal Angle of View (HFOV): 180°, Field of View: 360° |
| Motion Detection Tracking | Pixel motion and classified object detection |
| Back Light Compensation | Adjustable |
| Automatic White Balance | Automatic, Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
