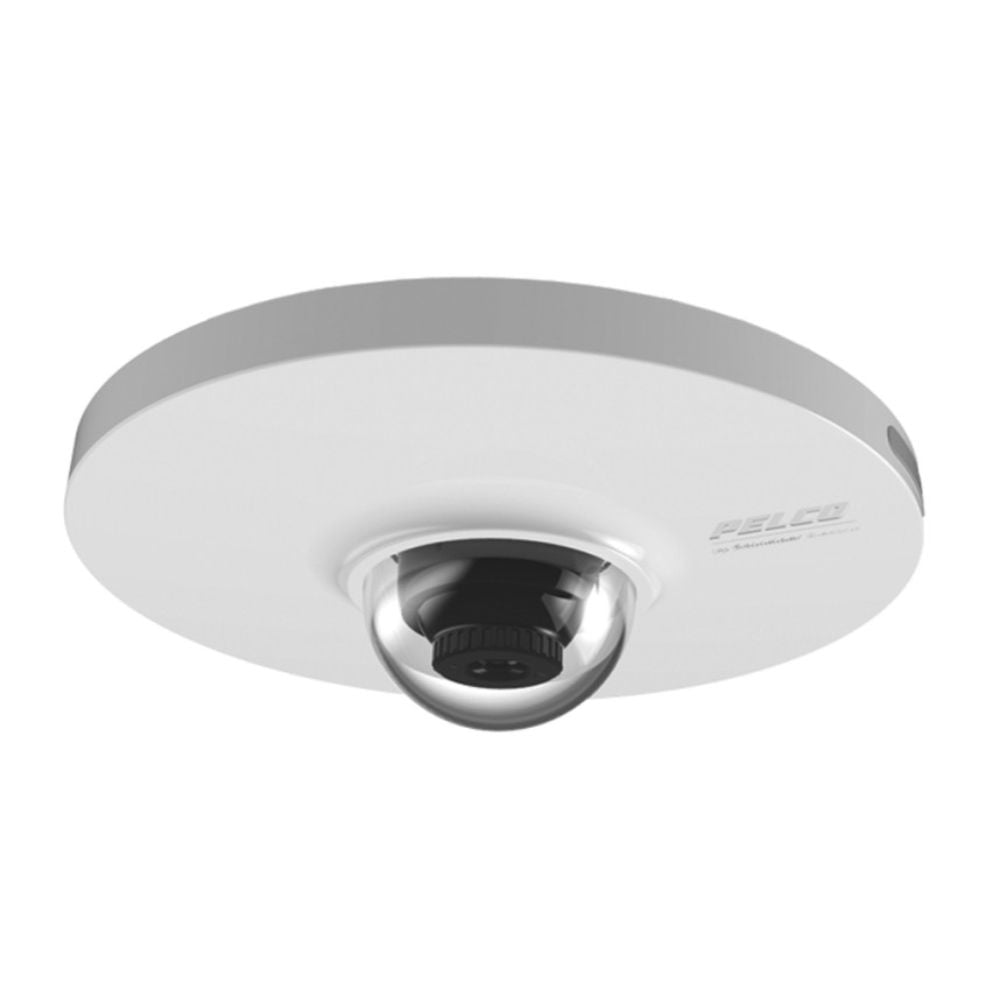

Pelco IL10-DP 720p Indoor Network Dome Camera, 1.92mm Lens
SKU
IL10-DP
Model No
IL10-DP
$232.25
Product Highlights
- 720p (1280 x 720) Resolution
- 30 Images per Second (ips)
- H.264 Compression
- Selectable Bit Rate
- ONVIF Profile S Conformant
Speak to an expert
720p Indoor Network Dome Camera
- The IL10 Series is simple to install, and the integrated prefocused fixed focal length lens makes sharp scene alignment and focus a snap. The micro dome models ship with in-ceiling mounts that the camera snaps into. Two-axis pan and tilt quickly get the micro dome pointed in the desired direction. Convenient network connectivity, along with the simple Web user interface, makes for quick plug-and-play finalization of settings and positioning adjustment.The IL10 Series uses a standard Web browser for easy remote setup and administration. Controls are optimized for easy one-step camera configuration for features including color, exposure, flickercontrol, and streaming. A one-click shutter allows you to capture sharp JPEG snapshots of the live view for documenting, positioning, or easy event recording.
- IL10 Series cameras can support two simultaneous video streams. The two streams can be compressed in H.264 format that can be individually optimized between highest quality and bandwidth/storage efficiency. The camera supports text overlay with options for time, date, and camera name. The IL10 Series easily connects to Pelco IP and hybrid systems such as Endura version 2.0 (or later), Digital Sentry version 7.3 (or later), and DX4700/DX4800 hybrid video recorders. The IL10 Series is alsoconformant with ONVIF Profile S for connection with third-party video management systems.
Camera Functions
Auto Gain Control
Auto White Balance
Flickerless
Motion Detection
Onvif
Camera Features
| 720p (1280 x 720) Resolution | Integrated 68° Diagonal Field of View Lens |
| 30 Images per Second (ips) | Web-Based User Interface for Easy Setup and Configuration |
| H.264 Compression | Multilingual Menus in User Interface (English, French, Italian, German, Spanish, Portuguese, Simplified Chinese, Russian) |
| Up to 2 Simultaneous Video Streams | Power over Ethernet (IEEE 802.3af) |
| Selectable Bit Rate | Compatible with Pelco and Third-Party Video Systems |
| Minimum Illumination Down to 0.5 lux | ONVIF Profile S Conformant |
Additional Pelco Products
SKU  | IL10-DP |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Flickerless, Motion Detection Tracking, ONVIF |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 0.9 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.92mm |
| Mount Type | In-Ceiling |
| Compression Method | H.264 |
| Durability | Indoor |
| Voltage | PoE |
| Image Device | 1/6.9 inch CMOS |
| Minimum Scene Illumination | Color (33 ms): 3.0 lux, autoswitching, Color (200 ms) 0.5 lux, autoswitching |
| Operating Humidity | 15% to 85%, RH (noncondensing) |
| Operating Temperature | –0° to 40°C (32° to 104°F) |
| Power Consumption | <3 W |
| Protocols | HTTP, RTP, RTSP, NTP, IPv4, RTCP, UPnP, SSH, SSL |
| S/N Ratio | 50 dB |
| Angle of View | 68° |
| Motion Detection Tracking | 3 zones, plus background zone |
| Automatic White Balance | 2850° to 6500°K |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| ONVIF | Yes |
