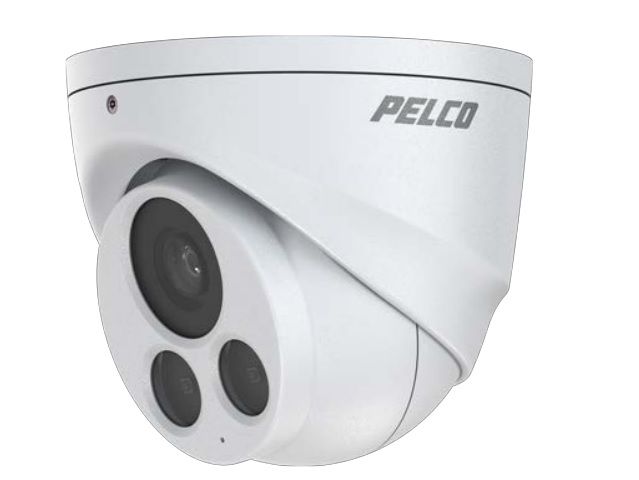

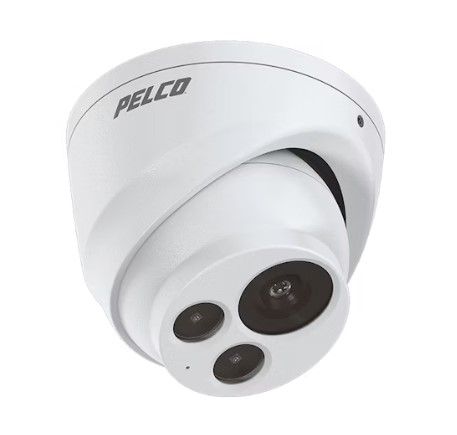

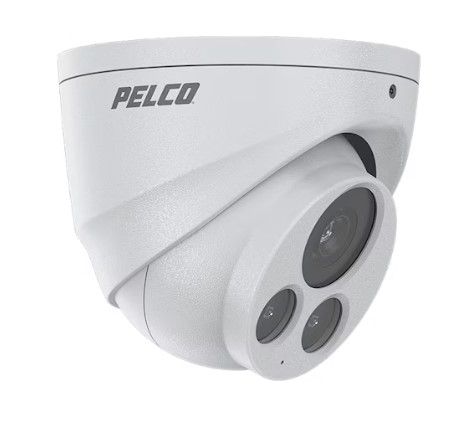

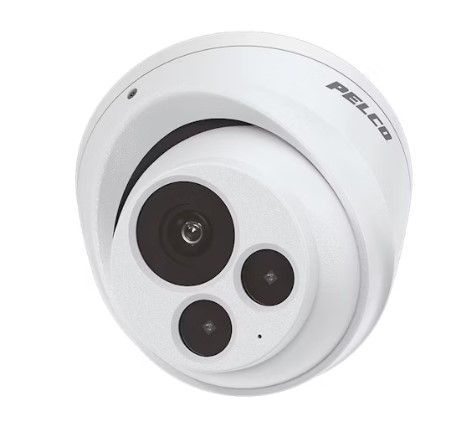

Pelco IFV222-1ERS 2 Megapixel IR Outdoor Dome Camera, 2.8mm Lens
SKU
IFV222-1ERS
Model No
IFV222-1ERS
$164.95
Product Highlights
- Excellent low light performance
- True Wide Dynamic Range
- 30 fps @ 1080p, 20 FPS @ 5 MP
- Built-in IR illumination up to 30 M
- H.265 and H.264 encoding with Pelco Smart Compression
Speak to an expert
The Pelco IFV222-1ERS 2 Megapixel IR Outdoor Dome Camera combines advanced technology with user-friendly installation for superior surveillance. Its bubble-less design not only saves time but also enhances image quality in varied lighting, while built-in IR illumination ensures continuous monitoring in total darkness. With IP66 weatherproofing, this camera is suited for both indoor and outdoor installations, making it a flexible solution for security needs.
Pelco IFV222-1ERS Camera Features
- 2 Megapixel Resolution: Provides high-definition image clarity for detailed surveillance, enhancing security visibility.
- Easy Installation: The bubble-less design simplifies setup, saving time and reducing labor costs.
- Built-in IR Illumination: Ensures effective monitoring in total darkness, extending security coverage around the clock.
- Excellent Low Light Performance: Captures clear images even in challenging lighting conditions, making it ideal for varied environments.
- True Wide Dynamic Range (WDR): Increases visibility in high-contrast lighting situations, such as bright sunlight or shadows.
- IP66 Rated: Weather-resistant design protects against dust and rain, ensuring reliable performance in harsh environments.
Pelco IFV222-1ERS Detailed Camera Specifications
| Specification | Details |
|---|---|
| Resolution | 2 Megapixels |
| Lens | 2.8mm |
| Frame Rate | 30 fps @ 1080p, 20 fps @ 5 MP |
| IR Range | Up to 30 meters |
| Storage | Built-in MicroSD / SDHC / SDXC Card Slot |
| Weather Resistance | IP66 rated |
SKU  | IFV222-1ERS |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Infrared, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Ø105 x 82.5 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec. |
| Image Device | 1/2.9" Progressive CMOS |
| Minimum Scene Illumination | 0.07 lux Color |
| Operating Humidity | 90% |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F), Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F) |
| Power Consumption | Max. 6 W/3.31 W (IR on/off) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| S/N Ratio | 50 dB |
| Video Output | RJ-45 cable connector f or 10/100Mpbs Network/PoE connection |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 109° (Horizontal), 59° (Vertical), 129° (Diagonal) |
| IR Distance | 30m/98.4252ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
