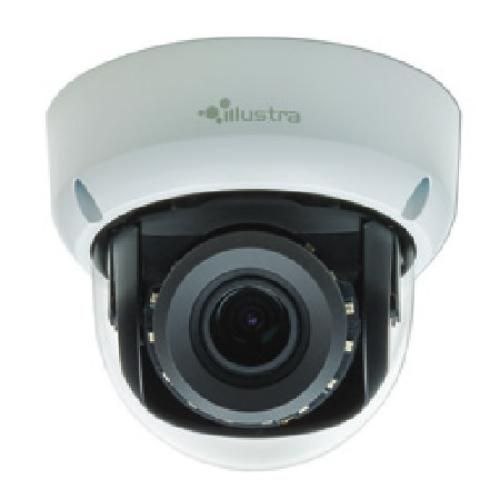

American Dynamics IFS08D2OCWITB Illustra Flex 8 Megapixel 4K Outdoor MiniDome Camera, 3.4-9mm Lens, Black

SKU
IFS08D2OCWITB
Model No
IFS08D2OCWITB
$623.70
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • IK10-rated vandal resistance for protection against dust and water damage
  • IR illumination for clear images in low light conditions on outdoor model
  • IntelliZip powerful video compression for bandwidth management
  • TrickleStor provides edge-based failover redundancy
  • P-iris for image clarity in changing light conditions

The IFS08D2OCWITB from American Dynamics is an Illustra Flex 8 Megapixel 4K Outdoor MiniDome Camera with 3.4-9mm Lens, Black. It is designed to offer a high-image quality, feature-rich surveillance option for a wide range of applications both indoors and outdoors. The increased amount of pixels per foot in these models improves image detail in wide areas such as loading docks and airport terminals. Also, the outdoor Flex Mini-Dome features built-in IR illuminators to produce clear images at an effective distance in a variety of low light conditions. Installations that strive for a combination of high-resolution and high-performance at a competitive price point, all while simplifying installation and configuration stand to benefit the most from the Flex 4K Mini-Dome.

Features

  • IK10-rated vandal resistance: Protects against physical damage and ensures durability in high-risk environments.
  • IR illumination: Produces clear images in low light conditions, enhancing visibility for outdoor surveillance.
  • IntelliZip compression: Reduces bandwidth usage without compromising video quality, making it cost-effective for storage and transmission.
  • TrickleStor technology: Provides edge-based failover redundancy to ensure data integrity and continuous operation.
  • P-iris technology: Maximizes image clarity by optimizing aperture settings in varying light conditions.
  • Motion detection: Sends instant alerts for intruder activity, allowing for immediate response to potential threats.

American Dynamics IFS08D2OCWITB Camera Specifications

ModelIFS08D2OCWITB
Resolution8 Megapixel (4K)
Lens3.4-9mm
TypeOutdoor MiniDome
ColorBlack
Vandal ResistanceIK10
IR RangeEffective for low light
Video CompressionIntelliZip
Storage RedundancyTrickleStor
Detection FeatureMotion detection alerts
P-Iris FunctionalityYes
SKU  IFS08D2OCWITB
Features  Audio, Auto Gain Control, Day/Night, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution
Manufacturer  American Dynamics
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    8 Megapixel
Lens Type    Varifocal
Lens Size    3.4-9mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+
Durability    Vandal Resistant, Weather Resistant
Voltage  24vAC, PoE
Dimensions (W x H)  Ø4.8 x 4.2 in (Ø123 x 107 mm)
Electronic Shutter    1/4 - 1/10,000 sec
Image Device    Progress Scan RGB CMOS 1/2.5”
Minimum Scene Illumination  Color, 1/4s, 30 IRE, AGC: 0.03 Lux, B/W, 1/4s, 30 IRE, AGC: 0.0003 Lux, w/ IR (Outdoor Models): 0.0 Lux
Operating Temperature    -58°F to 122°F (-50°C to 50°C)
OSD Menu    Arabic, Czech, Chinese (Simplified), Chinese (Traditional), Danish, Dutch, English (US), French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazilian), Russian, Spanish, Turkish
Power Consumption  12W
Privacy Zone    9
Protocols  TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP
Weatherproof    IP67
Angle of View    Wide (H/V): 104°/56°, Telephoto (H/V): 42°/24°
Motion Detection Tracking    3
IR Distance  30m/98ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
