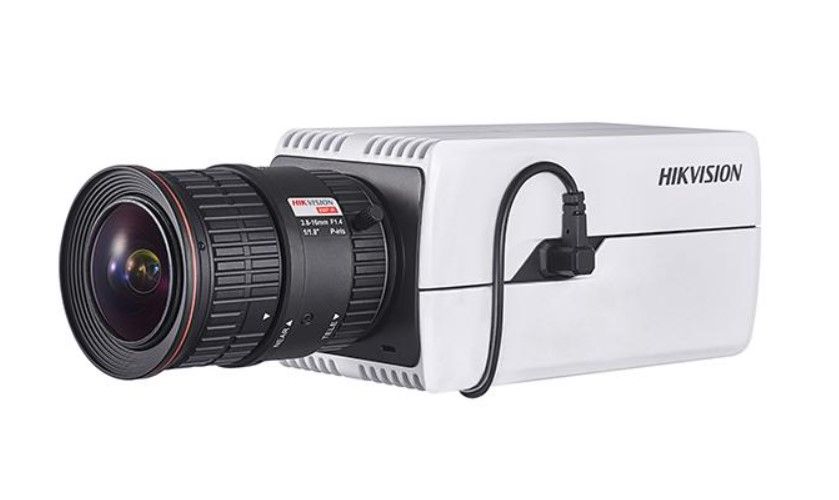

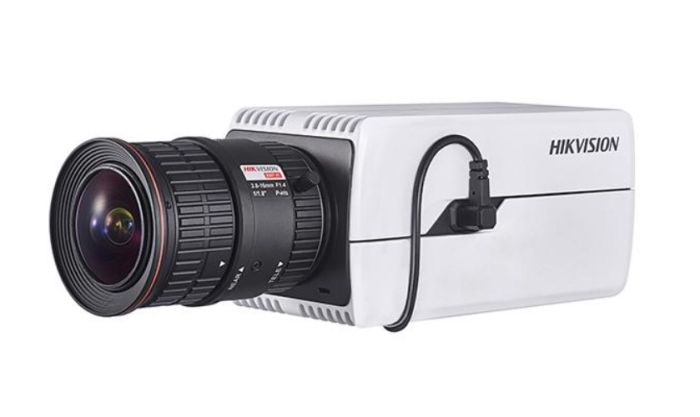

Hikvision iDS-2CD7046G0-AP 4 Megapixel Box Network Camera
SKU
iDS-2CD7046G0-AP
Model No
iDS-2CD7046G0-AP
$508.15
Product Highlights
- 4 MP Resolution
- DarkFighter Technology for Excellent LowLight Performance
- 140 dB WDR
- H.265+ Compression
- Smooth Live View and Data Self-Correcting
Speak to an expert
4 Megapixel Box Network Camera
- Hikvision's exceptional DeepInView Camera Series hosts deep learning algorithms in each unit, with stunning image performance and cost-effective pricing. Business intelligence data and other applications help end users reduce costs, improve efficiency, and implement speedy and effective incident response. Six deep learning algorithms are held in one camera housing so users can simply enable an algorithm manually for dedicated use. The cameras are also equipped with DarkFighter technology for clear images in low lighting conditions. The cameras also feature EXIR 2.0, H265+ video compression technology, support for metadata, five video streams, and up to five custom streams for easy third-party integration. Seamless streaming improves video quality across varying network conditions. The "œ-Y" models come equipped with anti-corrosion housing and are NEMA 4x rated for added protection from corrosion and weather elements.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
Privacy Masking
WDR
Camera Features
| 4 MP Resolution | Smooth Live View and Data Self-Correcting |
| DarkFighter Technology for Excellent LowLight Performance | 5 Streams + Up to 5 Custom Streams |
| 140 dB WDR | Built-In Microphone |
| H.265+ Compression |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | iDS-2CD7046G0-AP |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 4 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Indoor |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 142.5 mm × 69.8 mm × 68 mm (5.61" × 2.75" × 2.68") |
| Electronic Shutter | 1 s to 1/100,000 s |
| Image Device | 1/1.8" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.001 lux @ (ƒ/1.2, AGC on); B/W: 0.0003 lux @ (ƒ/1.2, AGC on) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30° to 60° C (-22° to 140° F) |
| Power Consumption | W/extra load: 12 VDC, 1A,24 VAC, 0.79A, 50/60 Hz, 12 W; PoE (802.3af, 36–57 VDC), 0.34–0.21A, class 3 |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| S/N Ratio | ≥52 dB |
| Digital Noise Reduction | 3D DNR |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
