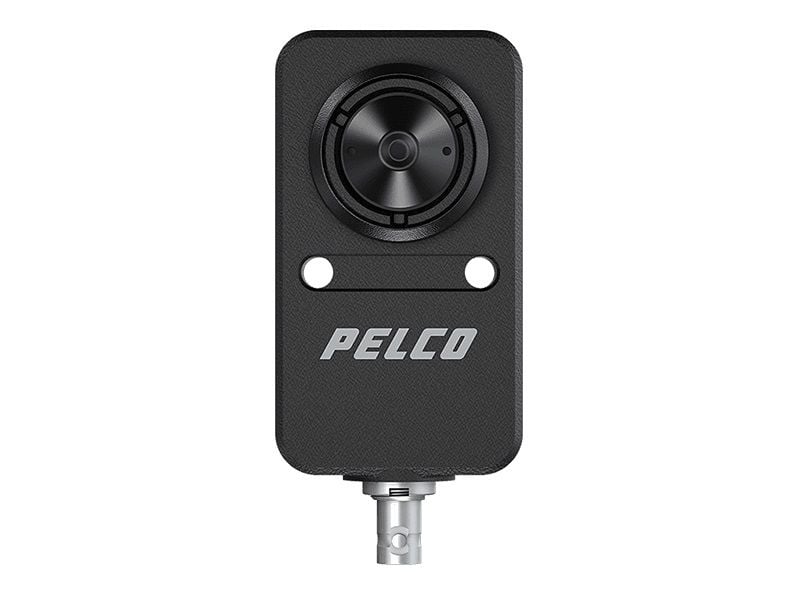

Pelco IDL303-PHI 3 Megapixel Network Outdoor Mini Board Camera with 3.7mm Lens
SKU
IDL303-PHI
Model No
IDL303-PHI
$197.50
Product Highlights
- Flexible design and installation options
- Multiple form factors and resolutions
- Smart Analytics, powered by Motorola Solutions
- H.264 and H.265 Smart Compression technology
- Operating Temperature: -10 °C to +60 °C (14 °F to 140 °F)
Speak to an expert
The Pelco IDL303-PHI is a cutting-edge 3 megapixel network outdoor mini board camera designed for discreet video surveillance. Its compact size, advanced analytics, and flexible installation options make it an ideal choice for spaces where unobtrusive monitoring is essential. Whether for ATMs, police interview rooms, or retail environments, this camera provides exceptional clarity and real-time responses, enhancing overall security capabilities.
Pelco IDL303-PHI Camera Functions
- High Resolution: 3 megapixel capability ensures clear, detailed images for accurate monitoring.
- Smart Analytics: Powered by Motorola Solutions, enhancing event detection and security team productivity.
- Flexible Design: Adjustable imager modules allow optimal positioning in confined spaces.
- Wide Dynamic Range: True Wide Dynamic Range of up to 130 dB improves performance in challenging lighting conditions.
- Weather Resistant: Designed to perform in various outdoor environments, ensuring reliability.
- Multiple Mounting Options: Simplifies installation and adaptability across different settings.
Pelco IDL303-PHI Detailed Camera Specifications
| Specifications | Details |
|---|---|
| Operating Temperature | -10 °C to +60 °C (14 °F to 140 °F) |
| Dynamic Range | Up to 130 dB True Wide Dynamic Range and SureVision technology |
| Compliance | ONVIF Profile S, G, and T compliance |
| Compression Technology | H.264 and H.265 Smart Compression technology |
| Compatibility | Compatible with Pelco and third-party video systems |
| Imager Modules | Adjustable and can be used together or separately |
SKU  | IDL303-PHI |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 45 mm x 25 mm x 20 mm; 1.77 ” x 0.98 ” x 0.79 ” |
| Electronic Shutter | Automatic, Manual (1/7.5 to 1/8000 sec) |
| Image Device | 1/2.7 ” Progressive Scan |
| Minimum Scene Illumination | 0.1 lux |
| Operating Humidity | 0 - 100% RH |
| Operating Temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Power Consumption | 13 W Max |
| Privacy Zone | Up to 64 zones |
| Protocols | IPv4, IPv6, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Angle of View | Horizontal Angle of View: 92 °, Vertical Angle of View: (4:3) 53 ° |
| Flickerless | 60 Hz, 50 Hz |
| Back Light Compensation | Adjustable |
| Automatic White Balance | Automatic, Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
