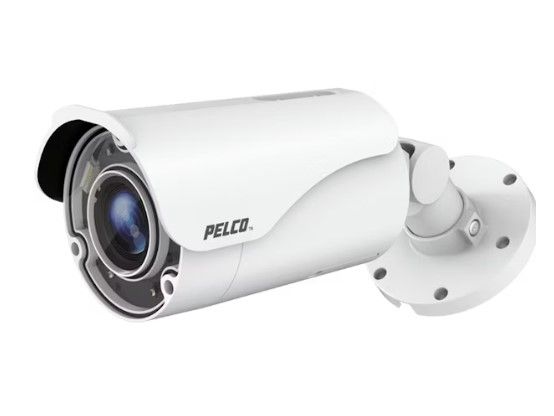

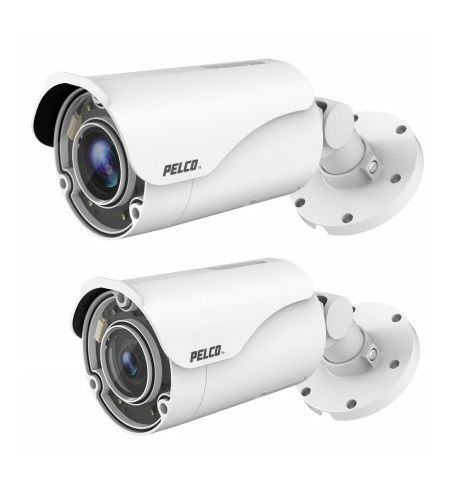

Pelco IBP231-1ER 2 Megapixel Sarix Pro Environmental Short-Tele Bullet Camera, 2.8-12mm Lens
SKU
IBP231-1ER
Model No
IBP231-1ER
$237.30
Product Highlights
- H.265, H.264 Main, High, MJPEG video encoding
- Up to 5 MP resolution at 30 images per second
- Up to 60 images per second (ips) at 4 MP for 5MP cameras
- Autofocus motorized remote zoom lens
- IR illumination up to 50/60/80 meters (for different lenses)
Speak to an expert
The Pelco 2 Megapixel Sarix Pro Environmental Short-Tele Bullet Camera combines advanced technology with robust design to deliver exceptional surveillance capabilities. Featuring an autofocusing motorized remote zoom lens, this camera is designed for various environments and lighting conditions, providing reliable performance and high-resolution imagery up to 5 MP. Its durability and compliance with international standards make it ideal for challenging outdoor applications.
Pelco 2 Megapixel Sarix Pro Environmental Camera Highlights
- High Resolution: With up to 5 MP resolution, the camera captures detailed images, essential for identifying faces and license plates.
- Video Compression: Supports H.265, H.264, and MJPEG encoding, optimizing storage usage and bandwidth without sacrificing quality.
- Adaptive Motion Analytics: The Pelco Pro Analytics Suite includes features like motion detection and object counting, enhancing security and alerting operators to potential threats.
- Durable Design: Vandal resistant (IK10), weather resistant (IP66/67), and Type 4X rated, ensuring the camera withstands harsh environments.
- Integrated IR Illumination: Provides up to 80 meters of visibility at night, making it a reliable choice for 24/7 surveillance.
- Camera Compatibility: Works seamlessly with both Pelco and third-party video management systems for flexible integration into existing setups.
Detailed Specifications for Pelco 2 Megapixel Sarix Pro Environmental Camera
| Specification | Details |
|---|---|
| Resolution | Up to 5 MP |
| Frame Rate | Up to 60 ips at 4 MP |
| Video Encoding | H.265, H.264 Main, High, MJPEG |
| Power Supply | 24 VAC, 12 VDC, IEEE802.at (PoE+) |
| Operating Temperature | Up to 60°C (140°F) |
| Storage | Micro SDHC and SDXC card, 2 TB addressable, 128 GB testable |
| IR Illumination | Up to 50/60/80 meters depending on lens |
| Standards Compliance | ONVIF Profile S, G, Q, and T conformant |
| Analytics Features | Adaptive Motion, Object Counting, Motion Detection, Camera Sabotage |
SKU  | IBP231-1ER |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Electronic Shutter | 1/10,000 sec ~ 1 sec |
| Image Device | 1/2.8-inch CMOS Progressive scan |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.0169 lux (33 ms), 0.00416 lux (200 ms), Mono: 0.01 lux (33 ms), 0.0025 lux (200 ms), Mono (IR On): 0.0 lux |
| Operating Humidity | 5% to 95%, RH condensing |
| Operating Temperature | -40° to 60°C (-40° to 140°F) |
| OSD Menu | English, French, German, Italian, Portuguese, Arabic, Russian, Spanish, Turkish, Korean, Simplified Chinese |
| Power Consumption | 12 VDC: 29.3 W, 24 VAC: 36.7 W, PoE+ 23 W |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205, ARP, DDNS, ICMP, IGMP, RTCP, SFTP, SIP, TLS/ TTLS, WS-discovery |
| S/N Ratio | ≥50 dB |
| Weatherproof | IP66, IP67 |
| Digital Noise Reduction | Yes (ON/OFF selectable) |
| Angle of View | Diagonal: 121°~ 39°, Horizontal: 101°~ 34°, Vertical: 53°~ 19° |
| Automatic White Balance | Range: 2,000° to 10,000°K; Selectable ATW (Auto Tracing White Balance), Auto, and Manual |
| IR Distance | 50m/164.04ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
