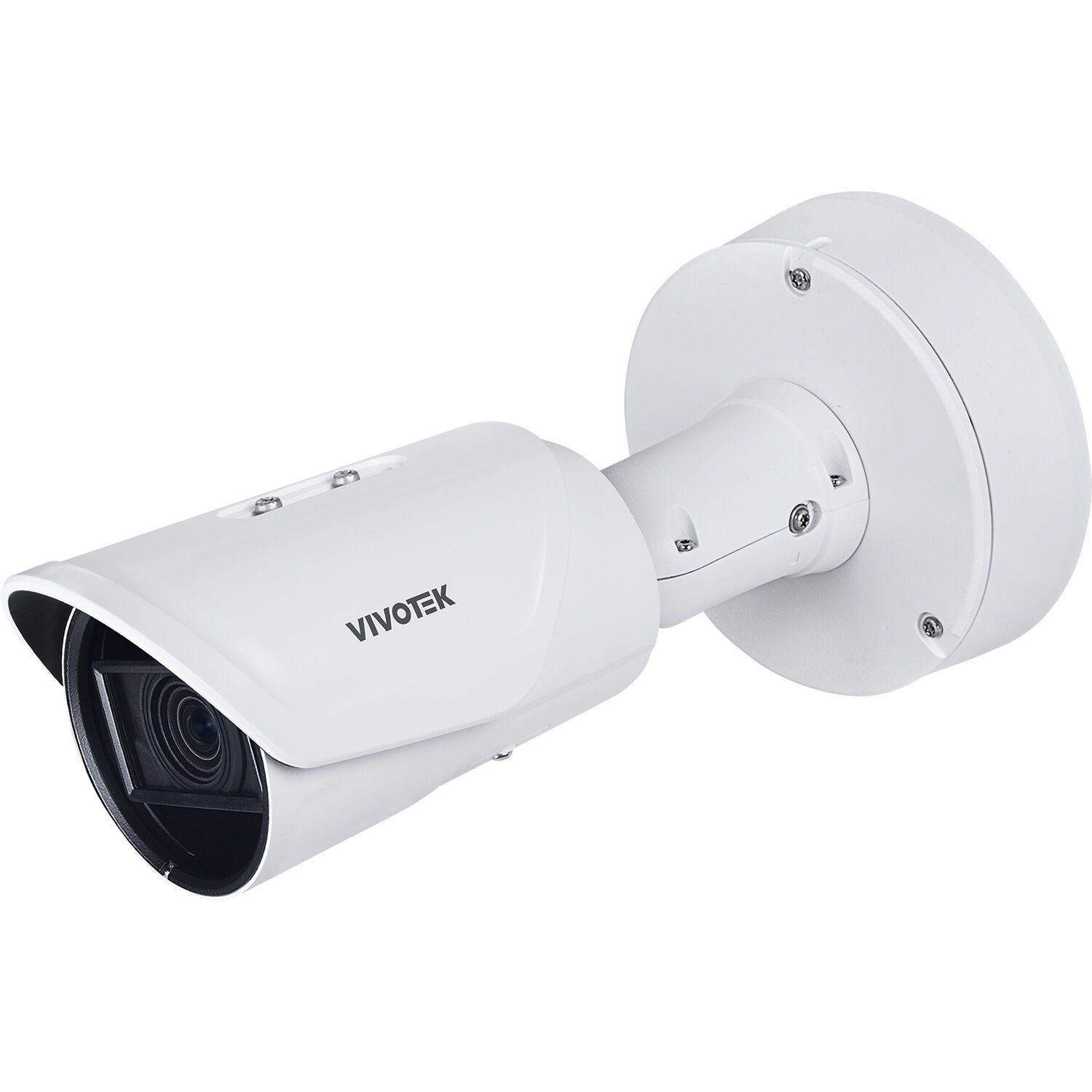

Vivotek IB9391-EHTV-v2 8 Megapixel Network Outdoor Bullet Camera with 4.4 ~ 10.2 mm Lens
SKU
IB9391-EHTV-v2
Model No
IB9391-EHTV-v2
$1,335.46
Product Highlights
- 30 fps @ 3840x2160
- H.265 Compression Technology with Smart Stream III
- Installation-friendly Design
- Weather-proof IP66, IP67 and Vandal-proof IK10, NEMA 4X-rated Protection
- SNV (Supreme Night Visibility) for Low Light Conditions
Speak to an expert
VIVOTEK IB9391-EHTV-v2 is a newly revamped outdoor fixed bullet network camera that delivers 3840x2160 (4K/8MP) resolution at up to 30 fps. This well-designed, outdoor-ready camera features the most up to date VIVOTEK SNV, WDR Pro and Smart IR III technology to deliver clear image quality in both low light and high contrast environments. It also offers a variety of built-in cybersecurity capabilities and AI-powered video analytics with IP66, IP67, IK10, NEMA 4X and wide temperature range from -40°C to 60°C without heaters, making it ideal for wide-ranging outdoor surveillance scenarios.
VIVOTEK IB9391-EHTV-v2 Camera Features
- 30 fps @ 3840x2160: Experience smooth video playback with high-resolution clarity.
- H.265 Compression Technology with Smart Stream III: Enjoy reduced bandwidth usage while maintaining image quality.
- Installation-friendly Design: Simplifies setup and reduces installation time.
- Weather-proof IP66, IP67 and Vandal-proof IK10, NEMA 4X-rated Protection: Ensures durable performance in harsh outdoor conditions.
- SNV (Supreme Night Visibility) for Low Light Conditions: Provides clear images even in near darkness.
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments: Delivers balanced image quality in challenging lighting scenarios.
- Built-in IR Illuminators up to 50M with Smart IR III: Guarantees effective surveillance in total darkness.
- Signed Firmware and Secure Boot: Enhances device security against unauthorized access.
- AI-powered Smart Motion Detection and Smart VCA: Increases efficiency in monitoring for potential threats.
- Cyber Protection via Trend Micro IoT Security: Offers robust cybersecurity to safeguard data and footage.
Detailed Specifications for VIVOTEK IB9391-EHTV-v2
| Model | VIVOTEK IB9391-EHTV-v2 |
| Resolution | 3840x2160 (4K/8MP) |
| Frame Rate | 30 fps |
| Lens | 4.4 ~ 10.2 mm |
| Protection Rating | IP66, IP67, IK10, NEMA 4X |
| Temperature Range | -40°C to 60°C |
| Nigh Vision | Smart IR III, up to 50M |
| Cybersecurity | Trend Micro IoT Security |
| Smart Features | AI-powered Smart Motion Detection |
| Compression Technology | H.265 with Smart Stream III |
SKU  | IB9391-EHTV-v2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wireless |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC, 24vAC |
| Dimensions (W x H) | ø 153 x 283 mm |
| Electronic Shutter | 1 sec. to 1/100,000 sec. |
| Image Device | 1/1.8" Progressive CMOS |
| Minimum Scene Illumination | 0.01 lux @ F1.38 (Color), <0.005 lux @ F1.38 (B/W), 0 lux with IR illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Power Consumption | PoE: Max. 19.38/15.80 W (IR on/off), DC 12V: Max. 15.84/12.26 W (IR on/off), AC 24V: Max. 16.52/12.94 W (IR on/off) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| S/N Ratio | 58 dB |
| Weatherproof | IP66, IP67 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 100° ~ 43° (Horizontal), 50° ~ 24° (Vertical), 110° ~ 49° (Diagonal) |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
